Lagoon 421 Family Layout

Electronics New 2021

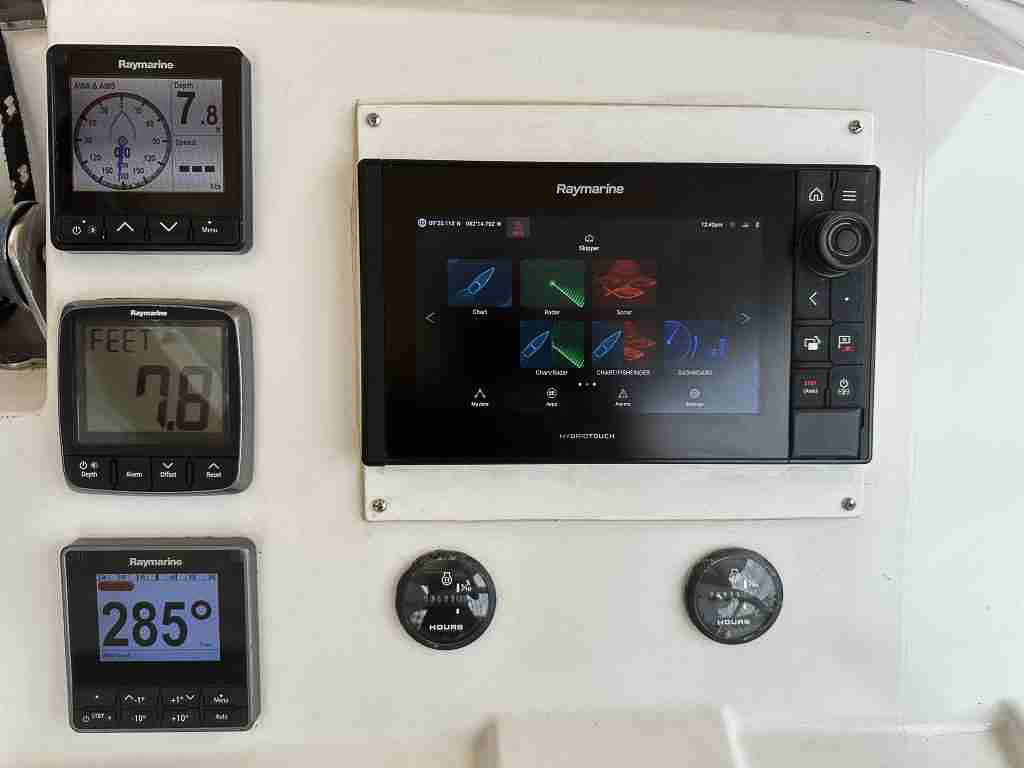

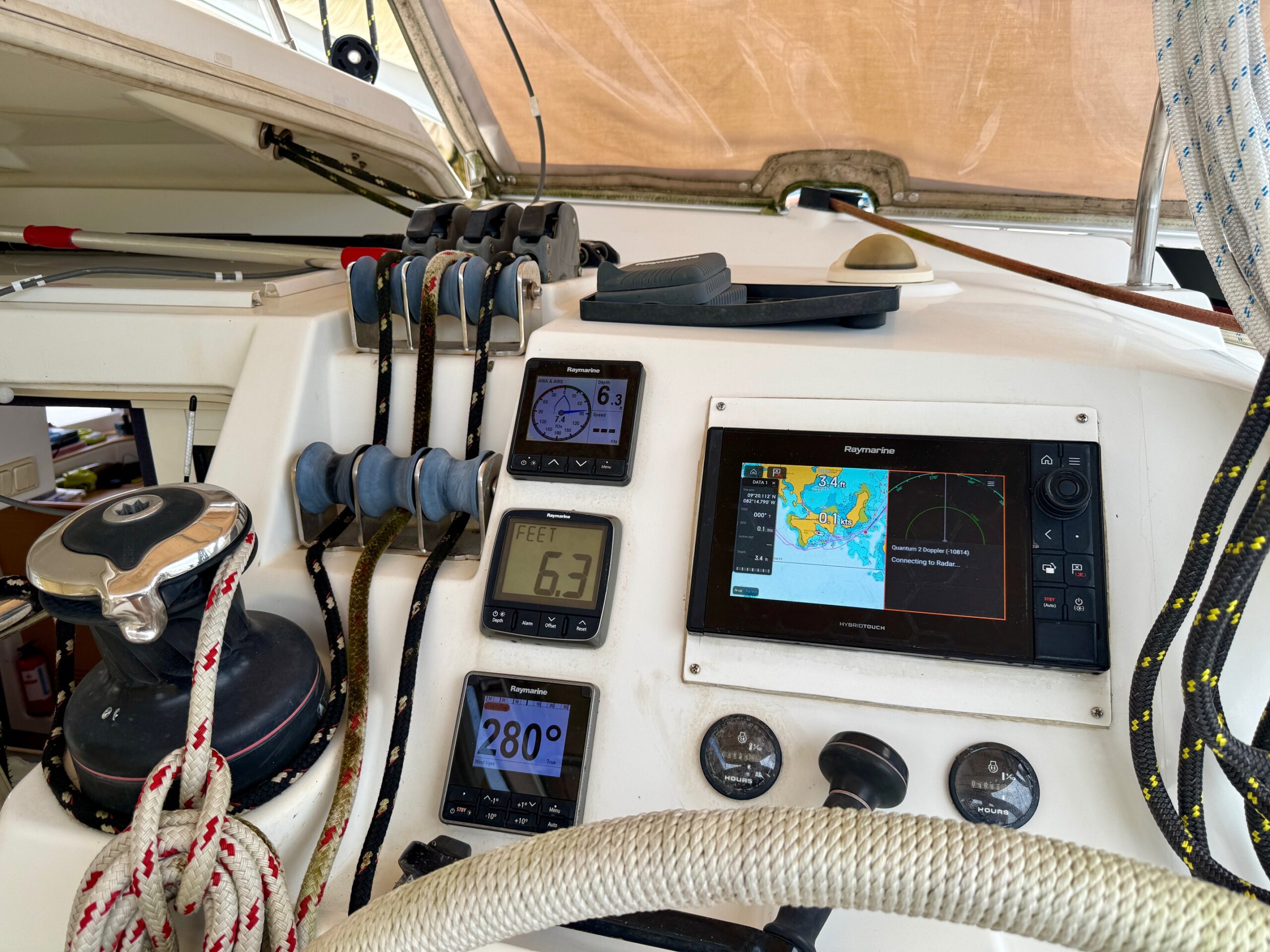

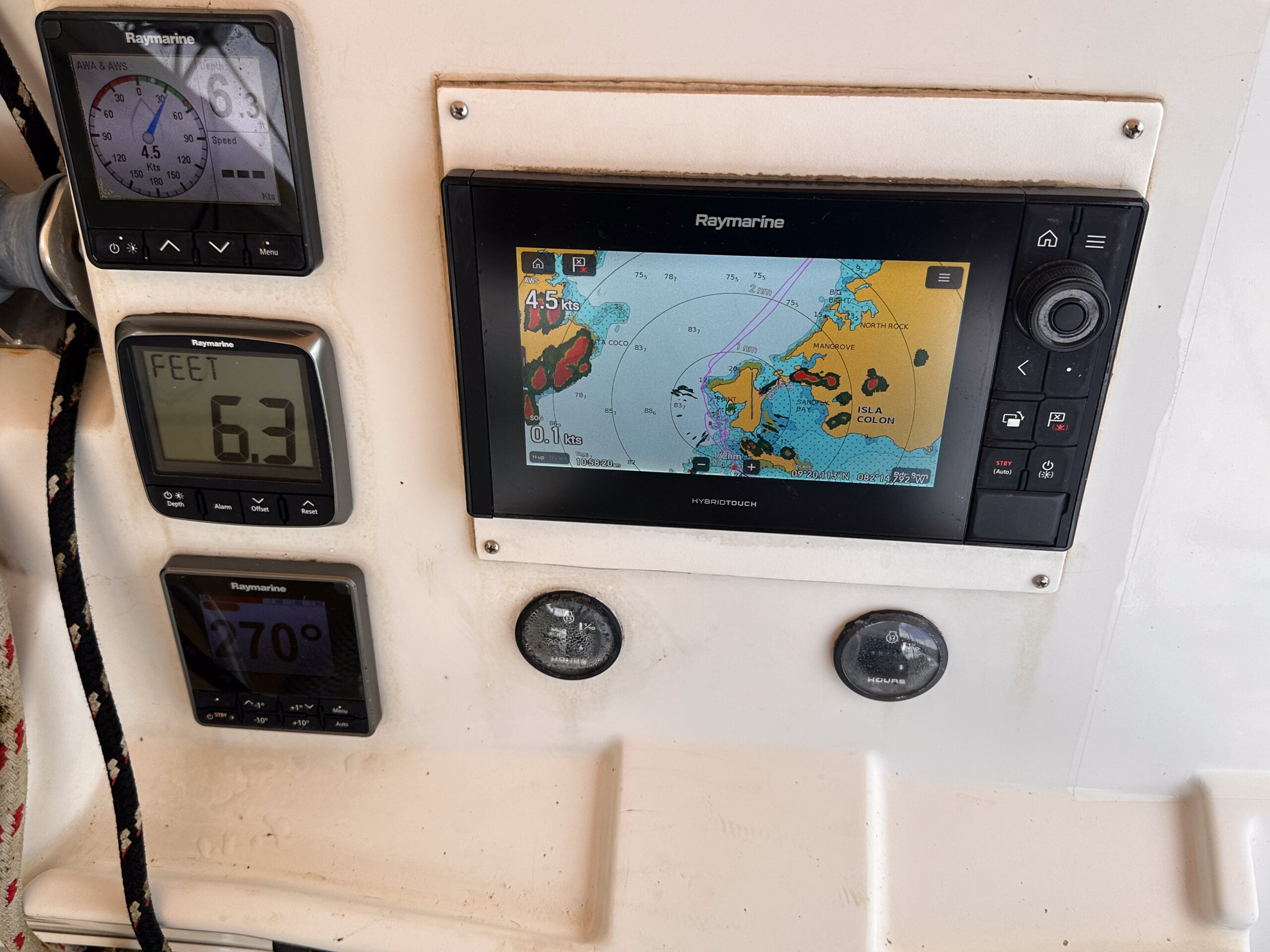

• Raymarine Axiom Pro 9 Chartplotter
• Raymarine Quantum 2 Doppler Color Raydome
• Raymarine CHIRP Sonar Transducer
• Standard Horizon VHF AIS Receiver
• Standard Horizon Ram 3 Wireless VHF

• Polyester and high quality anti-osmotic resin FRP construction
• Infused balsa core composite hulls - white gel coat
• Infused solid glass FRP under waterline
• Bridge deck and deck in balsa sandwich. Vacuum bagged and infused with high quality anti osmotic resin and polyester resin
• Solid or felt core composite interior FRP hull & roof liners
• FRP reinforced marine ply bulkheads; glassed or bonded to hull

• 8 Mooring cleats

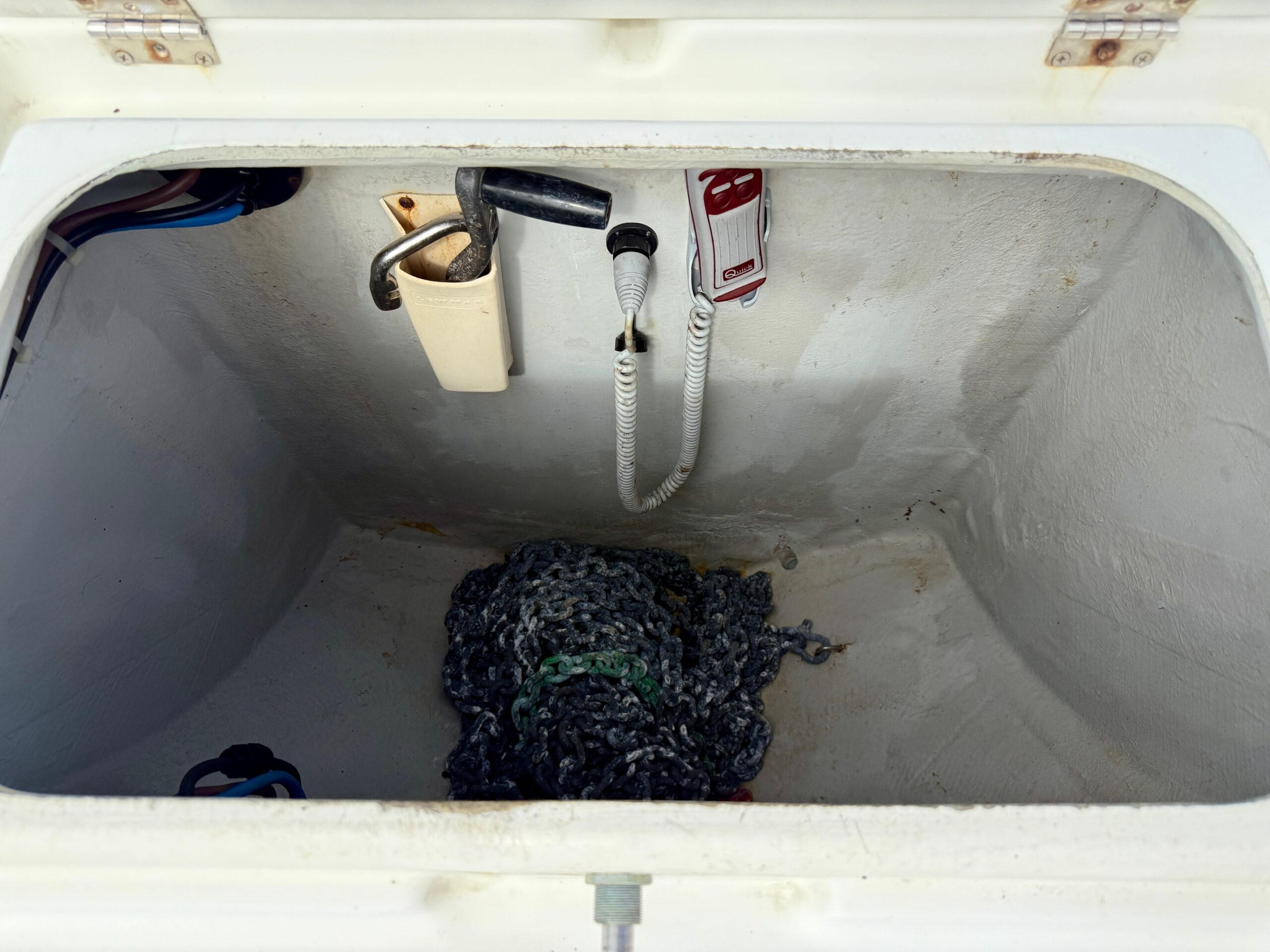

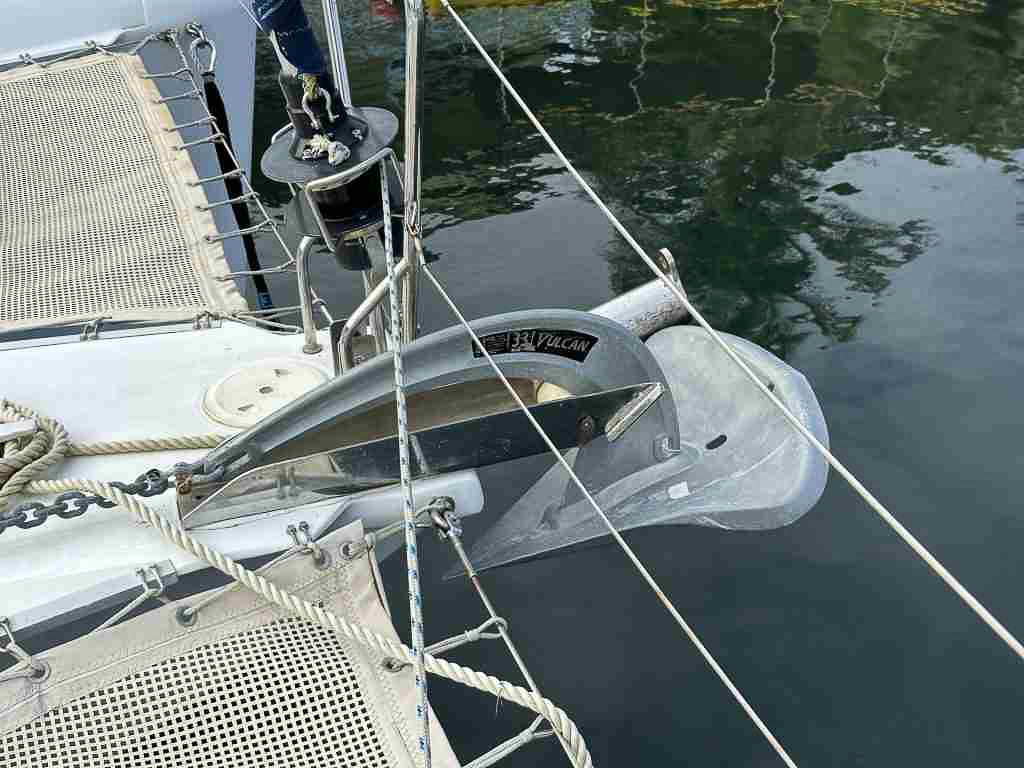

• 1 vertical electric windlass 1000 W with 10 mm gipsy

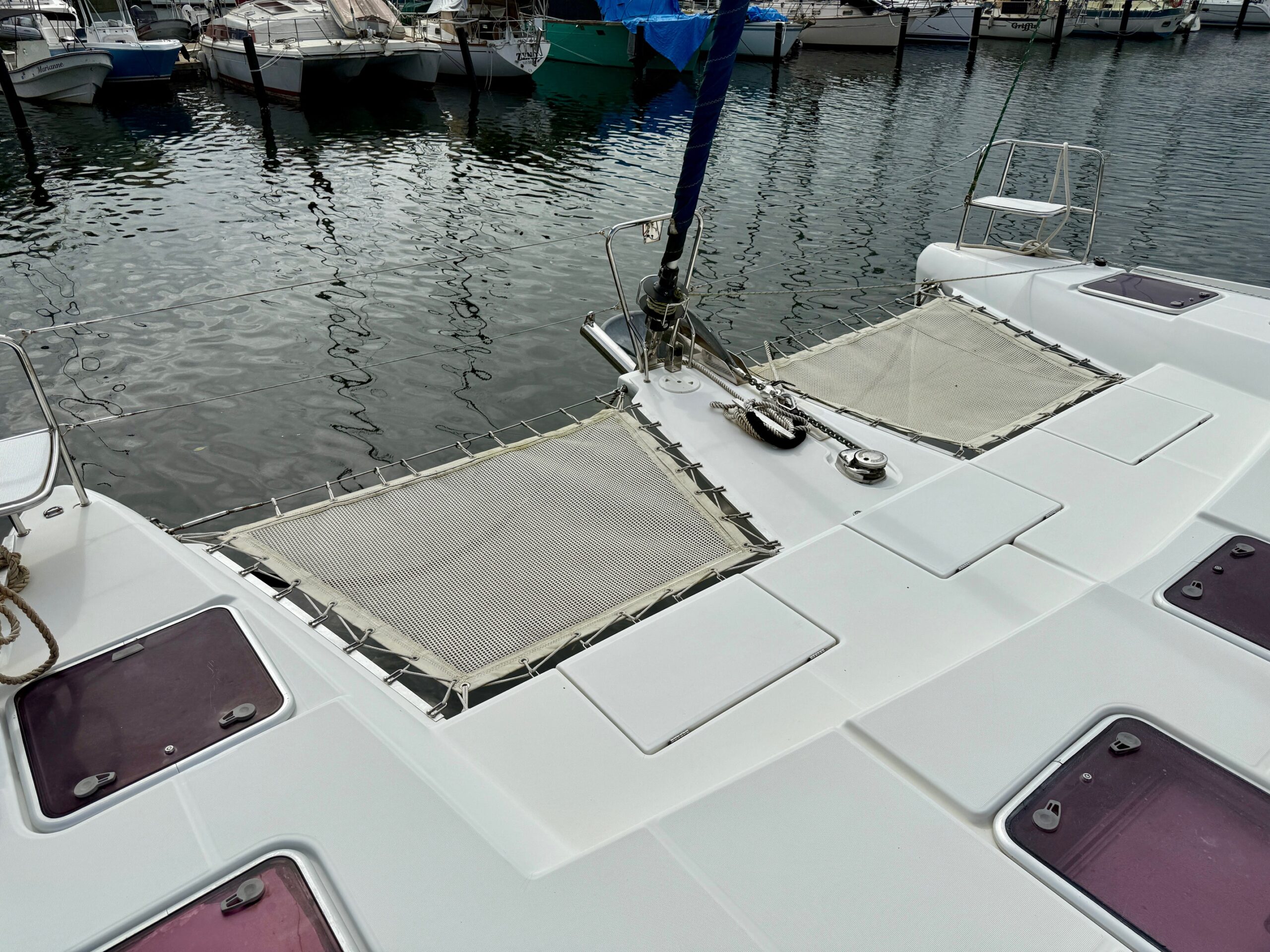

• Bow safety nets on each side of the composite central rostrum
• S/s stern pulpits with horseshoe buoy mount and flag holder
• S/s bow pulpits and forward lifelines
• S/s double lifelines
• S/s coachouse handrails
• Lifeline gates

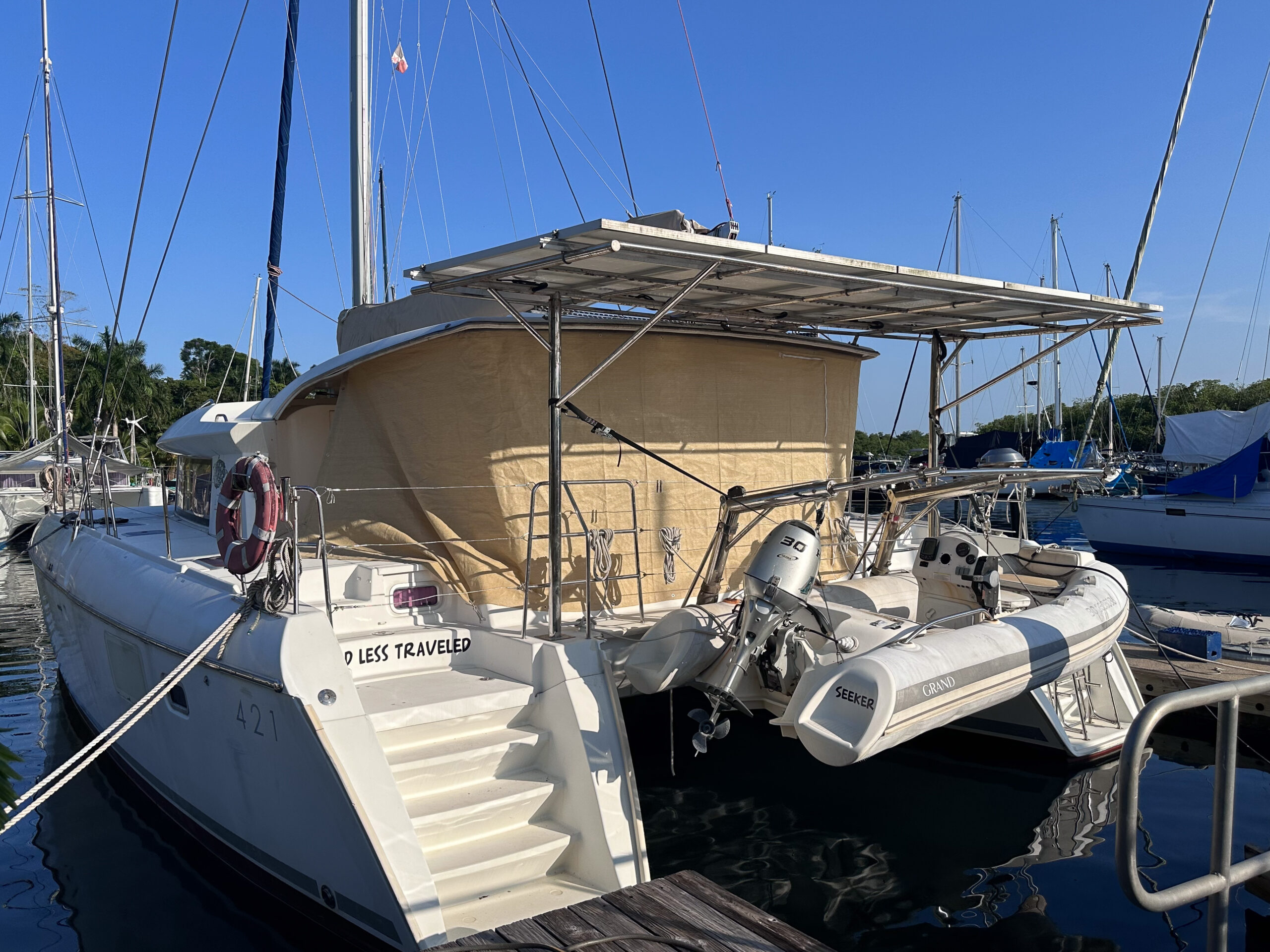

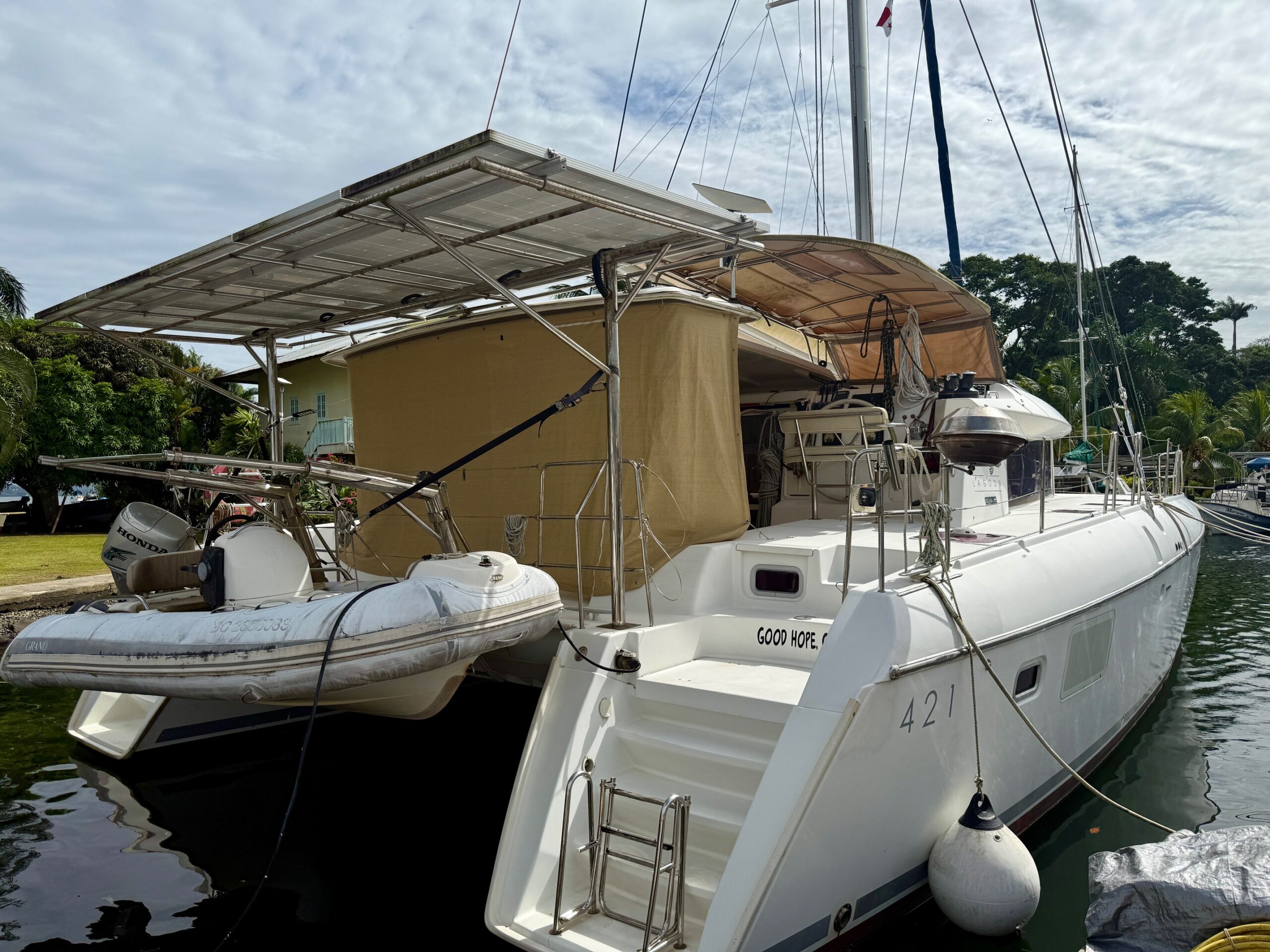

• Stainless Steel Solar Arch new 2021
• Complete bottom job 2021
• Clean-A-Hull Ultrasonic Antifouling System new 2021
• LED Navigation Lights: Anchor, Bow, Stern, Mast/Deck Beam new 2021
• Underwater Lights new 2021
• Sugar scoop tri-color new 2021
• Outside Salon and Helm Upholstery new 2021

• Rear Salon Tri-Color LED lights new 2021
• All Salon and cabin 230v outlets and cabin light switches new 2021
• Cabin/Salon Fans (5) new 2021

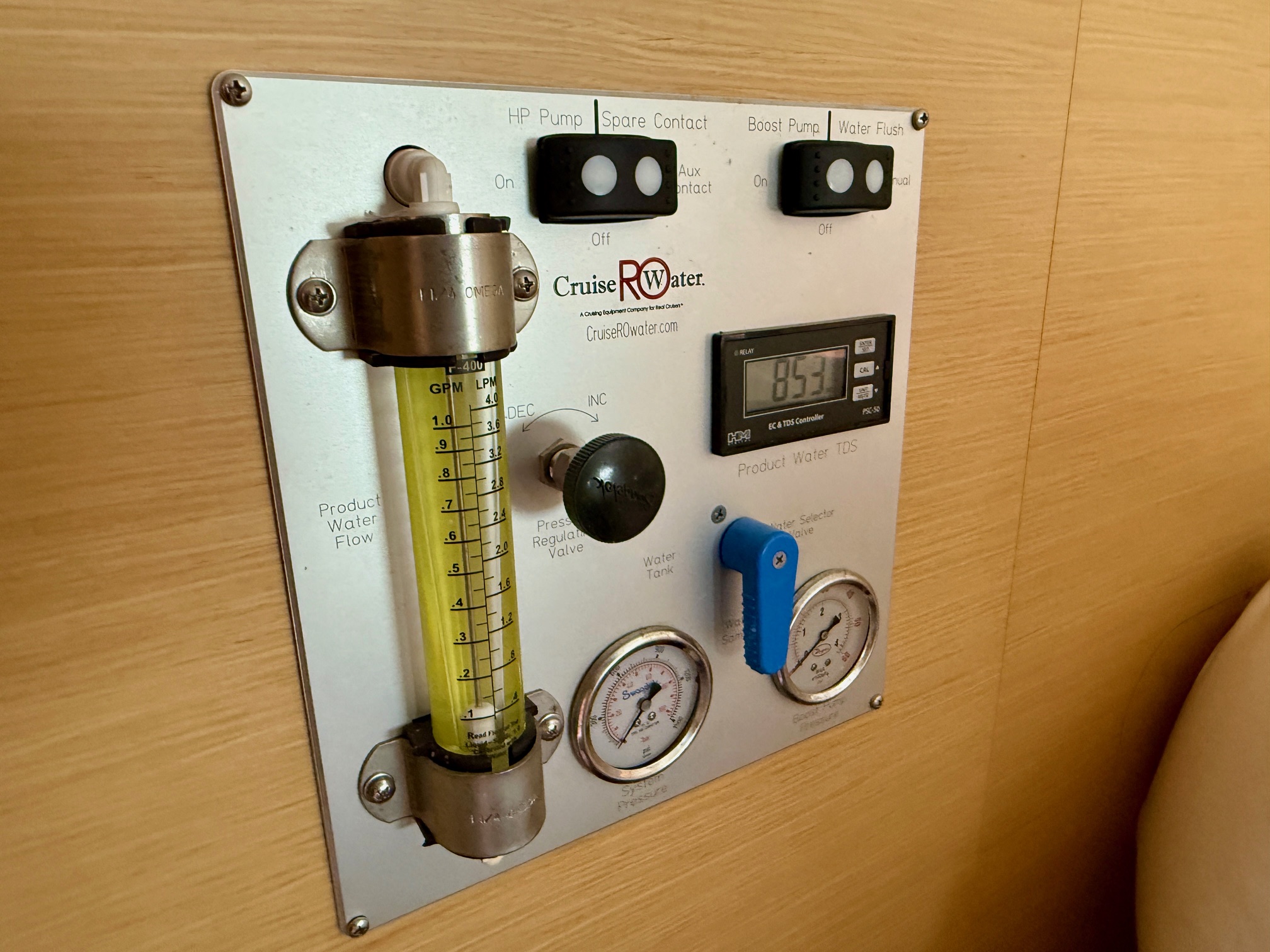

• Cruise RO DC 35gph Water Maker with auto flush new 2021
• House Potable Water Pressure Pump new 2021
• Acuva ArrowMax UV Fresh Water Filter System with LED Faucet new 2021
• Water Heater Element and Thermostat new 2021
• Forward cabin faucets with spray arms (2)
• All shower heads (4) new 2021
• Fresh water deck wash down

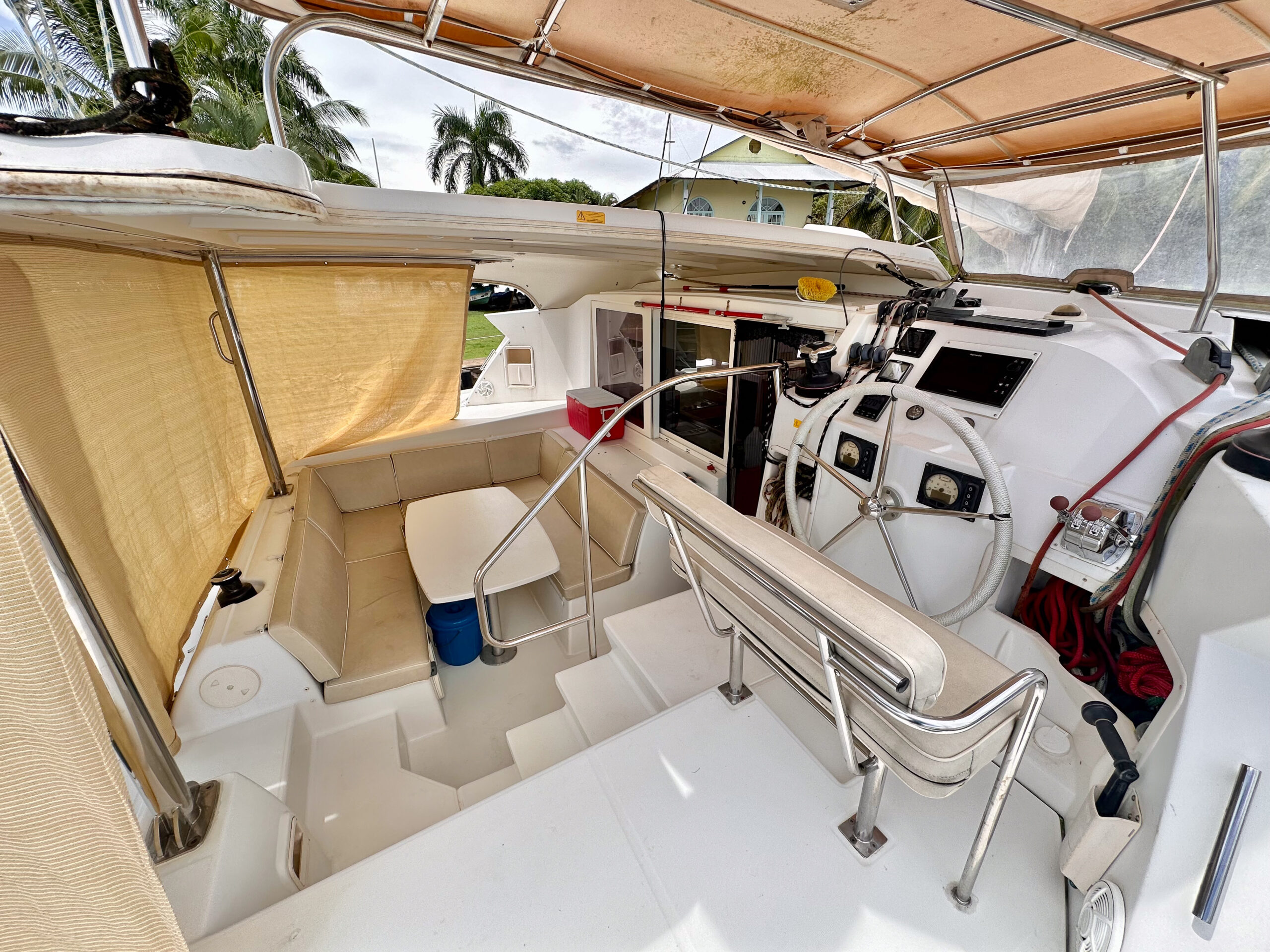

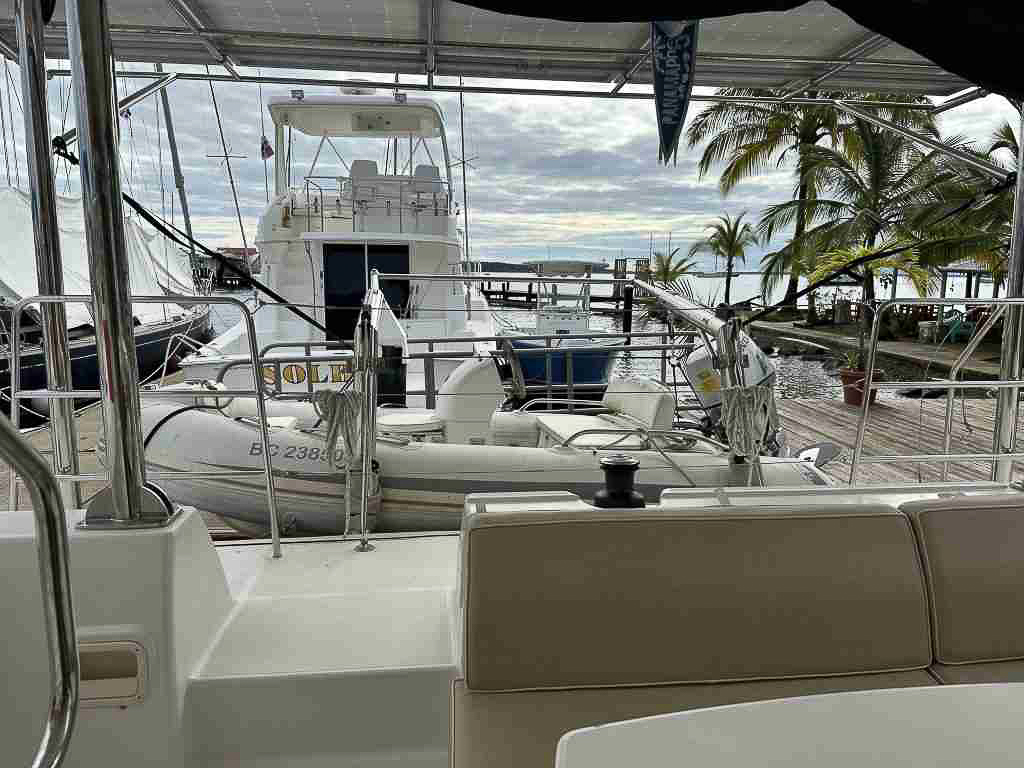

• Cockpit useable as outdoor salon, accessible via a stern walkway connecting both transoms
• Hard top bimini with integral lighting
• Self bailing cockpit with teak grate

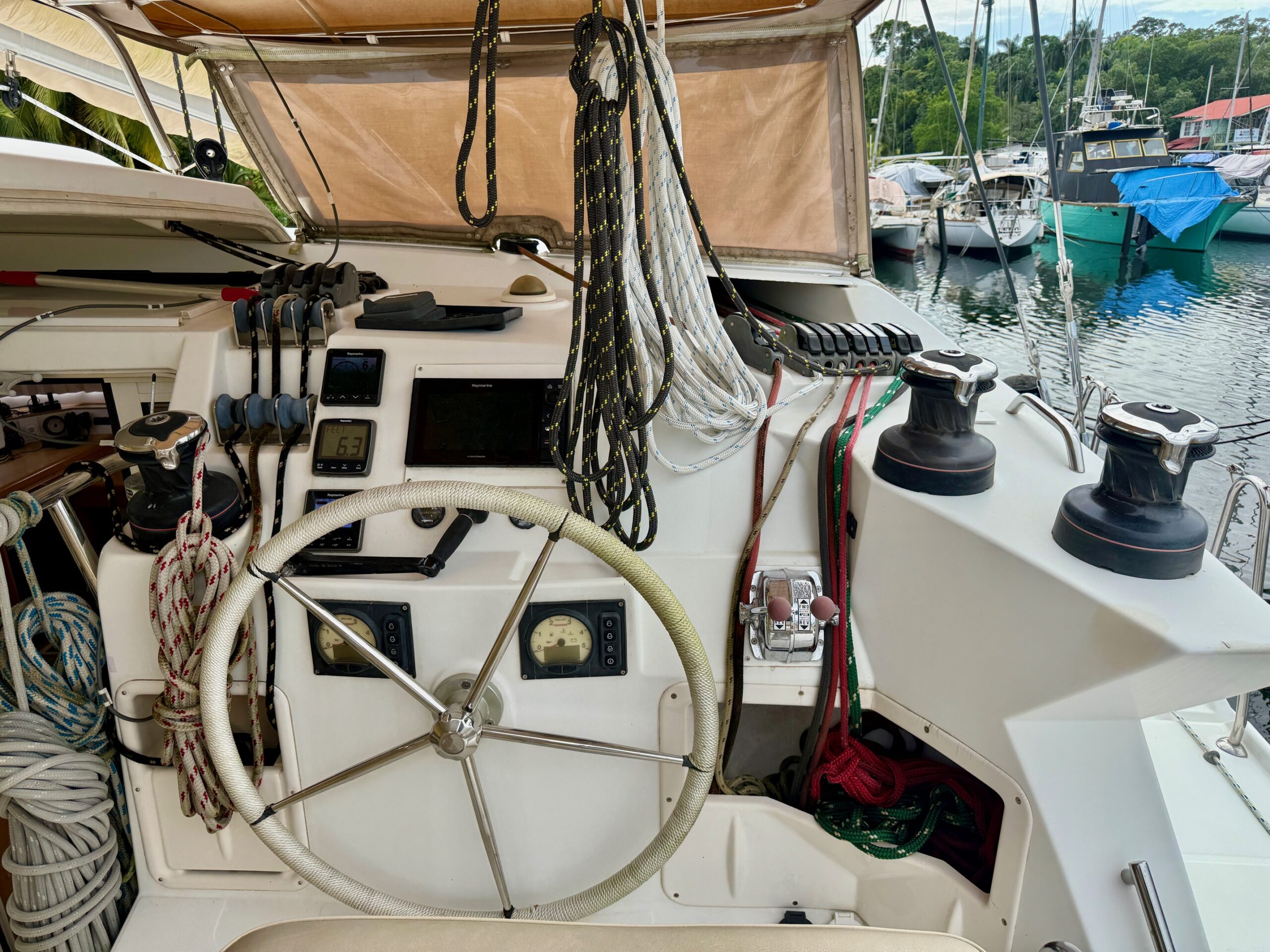

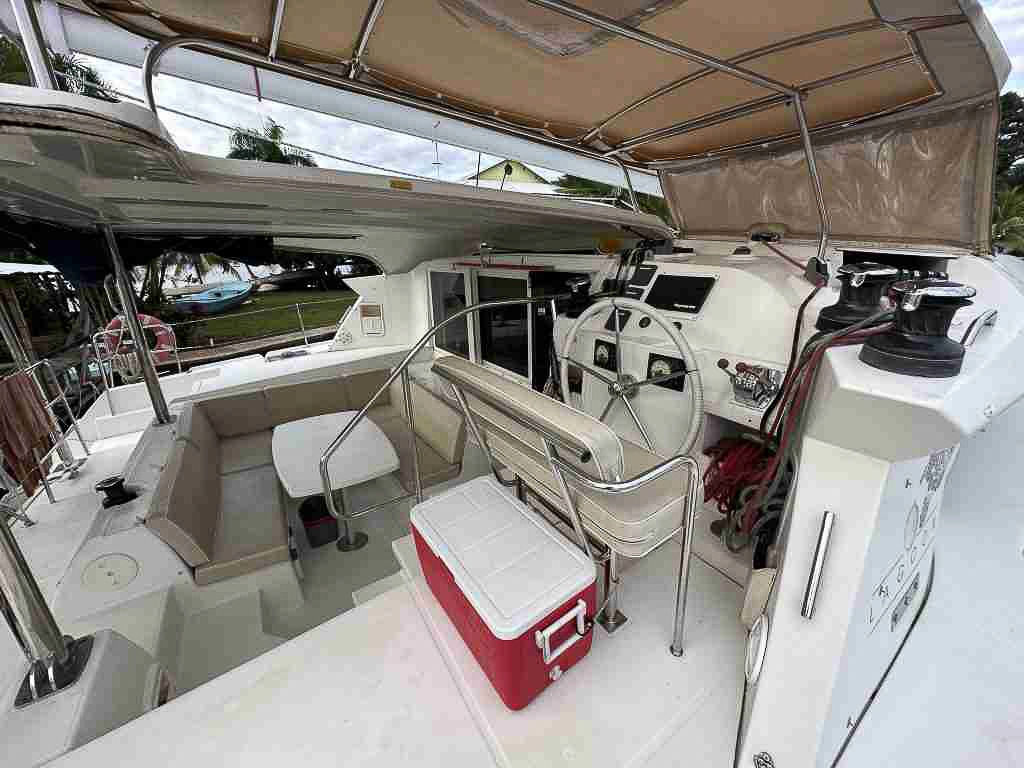

• Helm station on starboard roof bulkhead including: motor throttle controls, motor control panels, steering compass, area for electronic instruments installation, leather covered steering wheel with brake, double helm seat with cushions, access steps from cockpit with s/s handrail, 2 line storage compartments
• Steering system: cable steering, composite shaft rudders, emergency tiller
• U-shape seating area with technical/generator (option) compartment
• Varnished wooden cockpit table interchangeable with salon coffee table
• 1 aft cockpit seat locker
• 1 port cockpit propane locker
• 2 large storages area under steering station
• 2 cockpit storage shelves

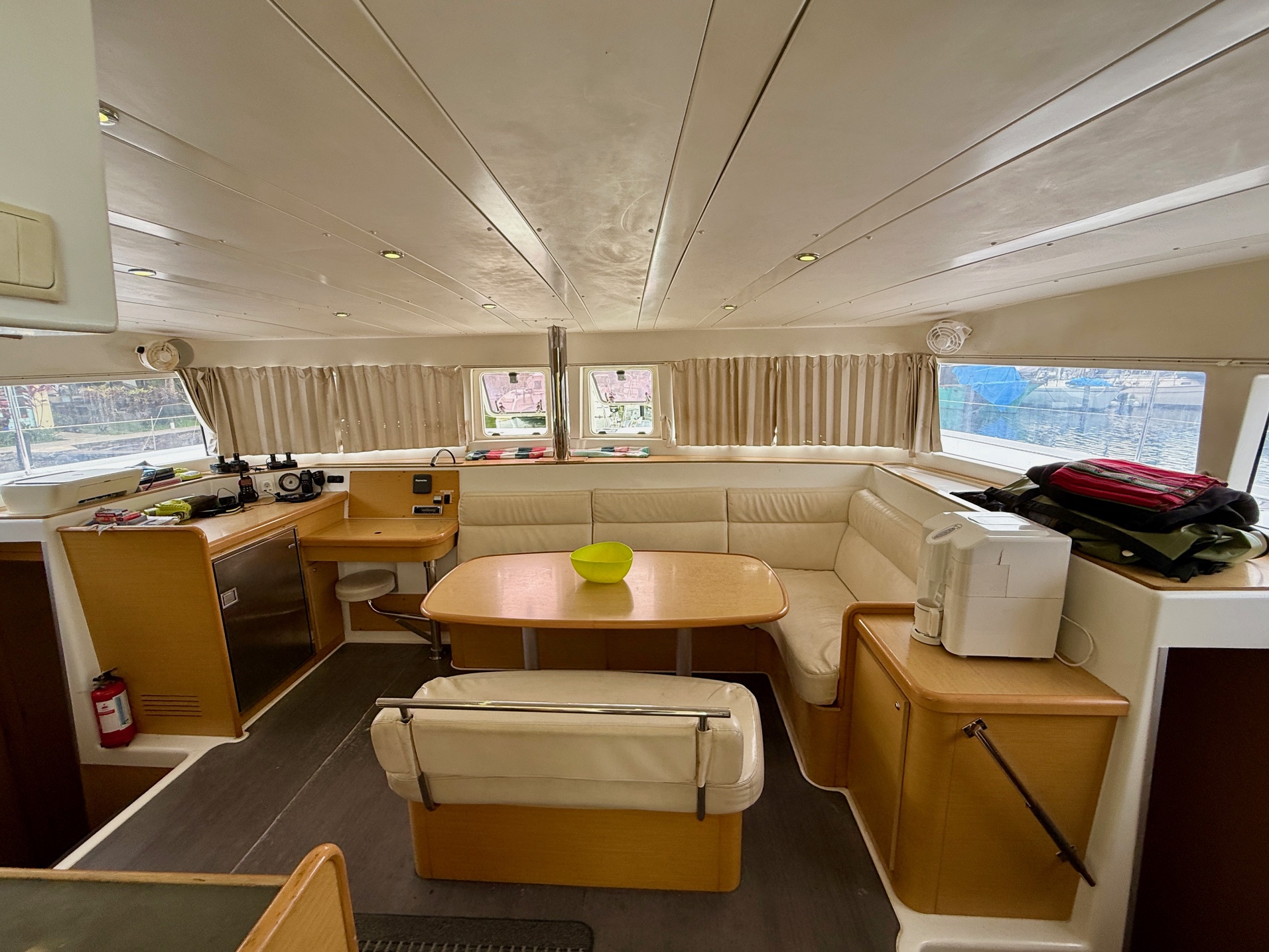

Salon

• Large panoramic view salon with sliding door and lock
• Standing headroom: 2.05m/6’9”
• 12V salon overhead lights
• Seating for 8 people
• Varnished wood coffee table that can be swapped with large wooden cockpit table. 1 set of tall Aluminum legs and 1 set of short Aluminum legs
• Storage under settee
• 2 opening hatches in forward vertical coachhouse window

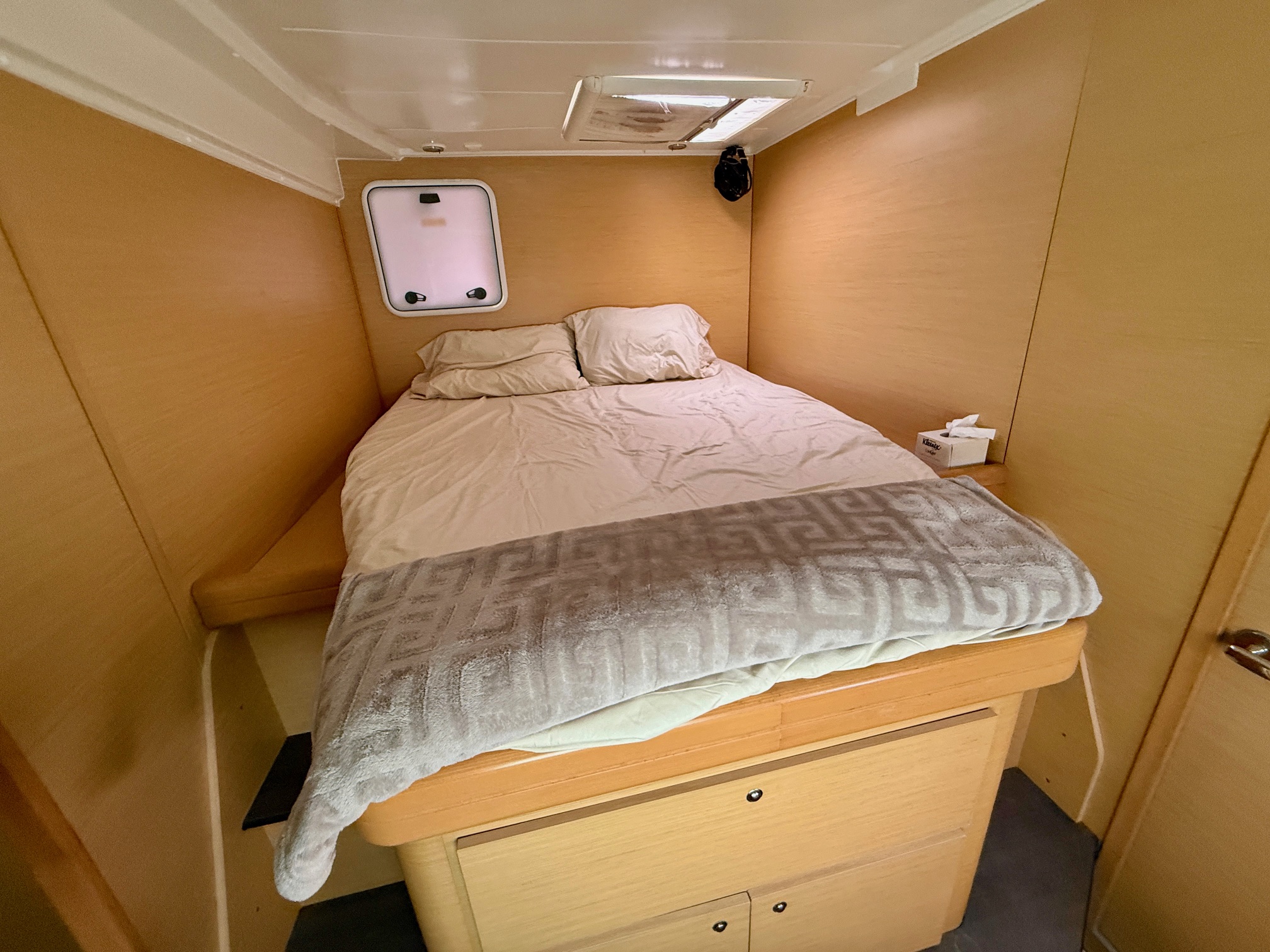

Forward Starboard cabin

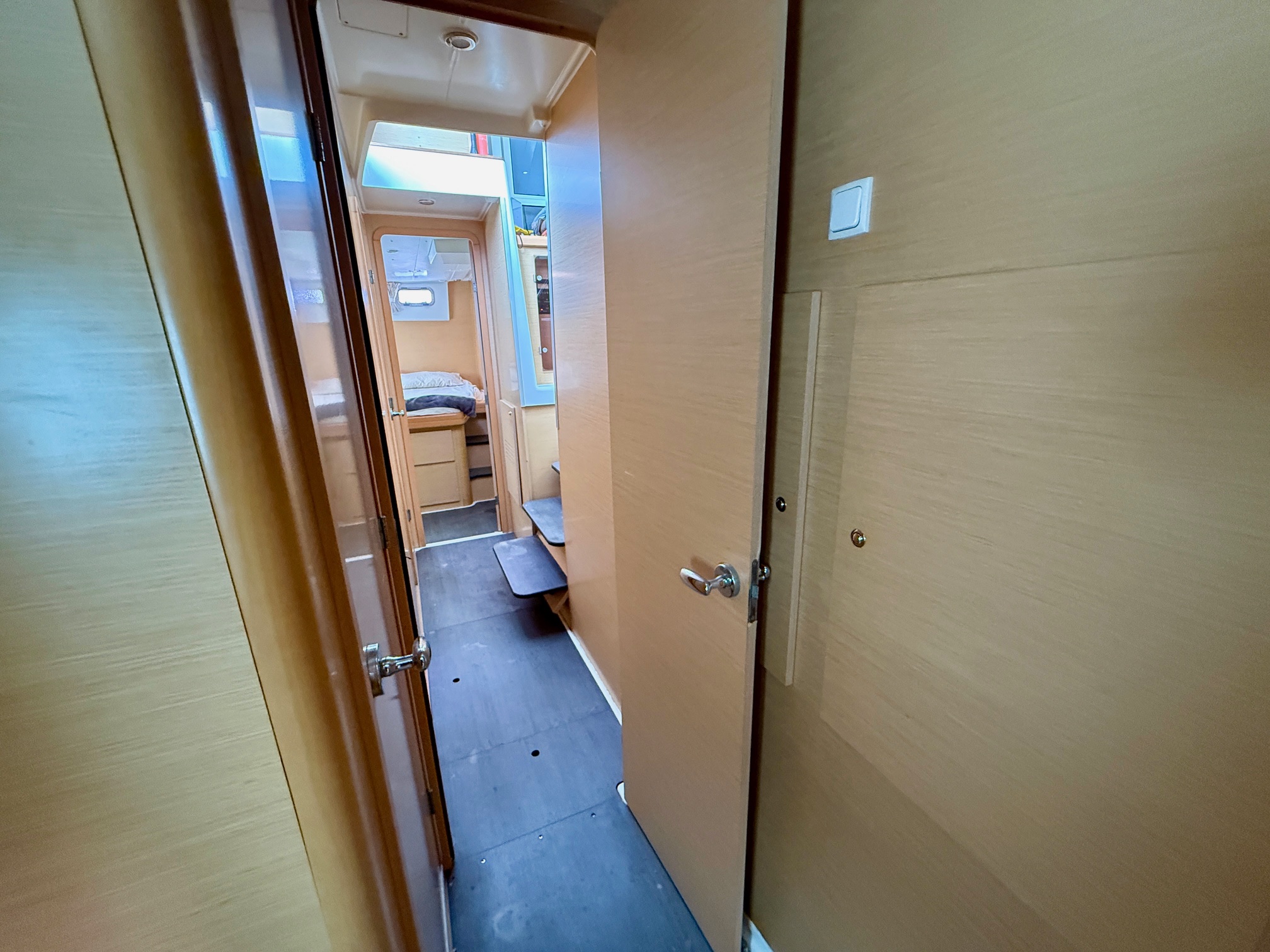

• Access through starboard passageway door
• Standing headroom: 1.95m/6’5”
• 12V overhead lighting
• 2 X 12V headboard reading lights
• “Semi – island” type berths with front and side access 2.0 m X 1.5 m/6’7” x 5’
• 1 drawer and 2 storage lockers on front of bed
• Lockers on both sides of bed
• 1 Hanging locker
• 1 Opening deck hatch with curtain
• 1 Hull port with curtain
• 1 Large one-way fixed window with curtain

Forward starboard head

• Access from cabin door
• 12 V lighting
• Standing headroom: 1.95m/6’5”
• Large manual marine head with holding tank with gravity drain/ deck pump out (same holding tank for front and aft WC)
• Fiberglass washbasin with hot/cold mixer tap, cupboards, mirrors
• 1 Opening deck hatch with blind

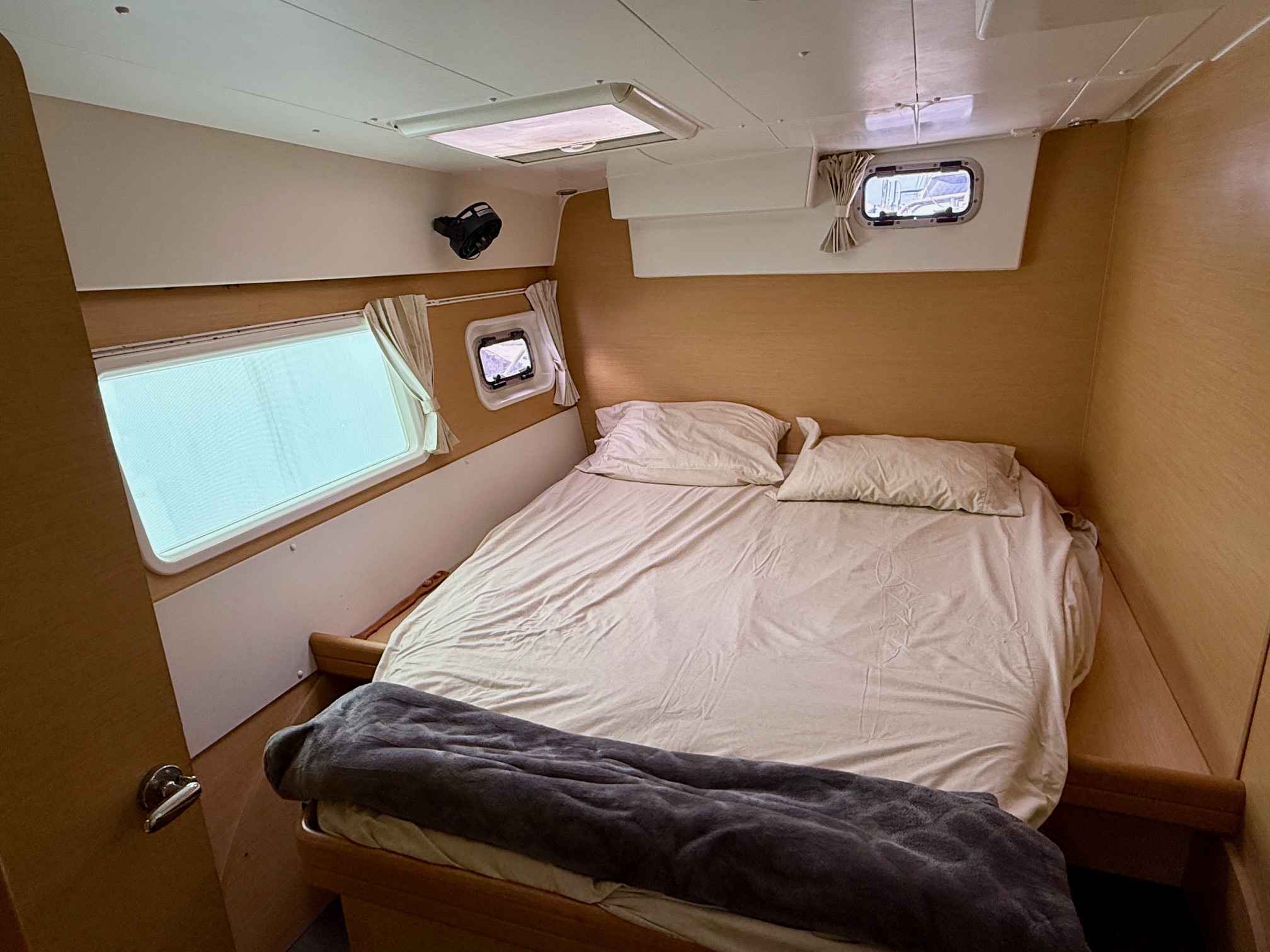

Aft Starboard Cabin

• Access through starboard passageway door
• Standing headroom: 1.85m/6’1”
• 12V overhead lighting
• 2 headboard reading lightsWC
• “Semi – island” type berth with front and side access 2.0m X 1.5 m/6’7” X 5 ft
• 1 Drawer and 2 lockers on front of bed
• Lockers on both sides of berth
• 1 Hanging locker
• Access to emergency escape hatch
• 1 opening deck hatch with blind
• 1 hull port with curtain
• 1 large one-way fixed window with curtain

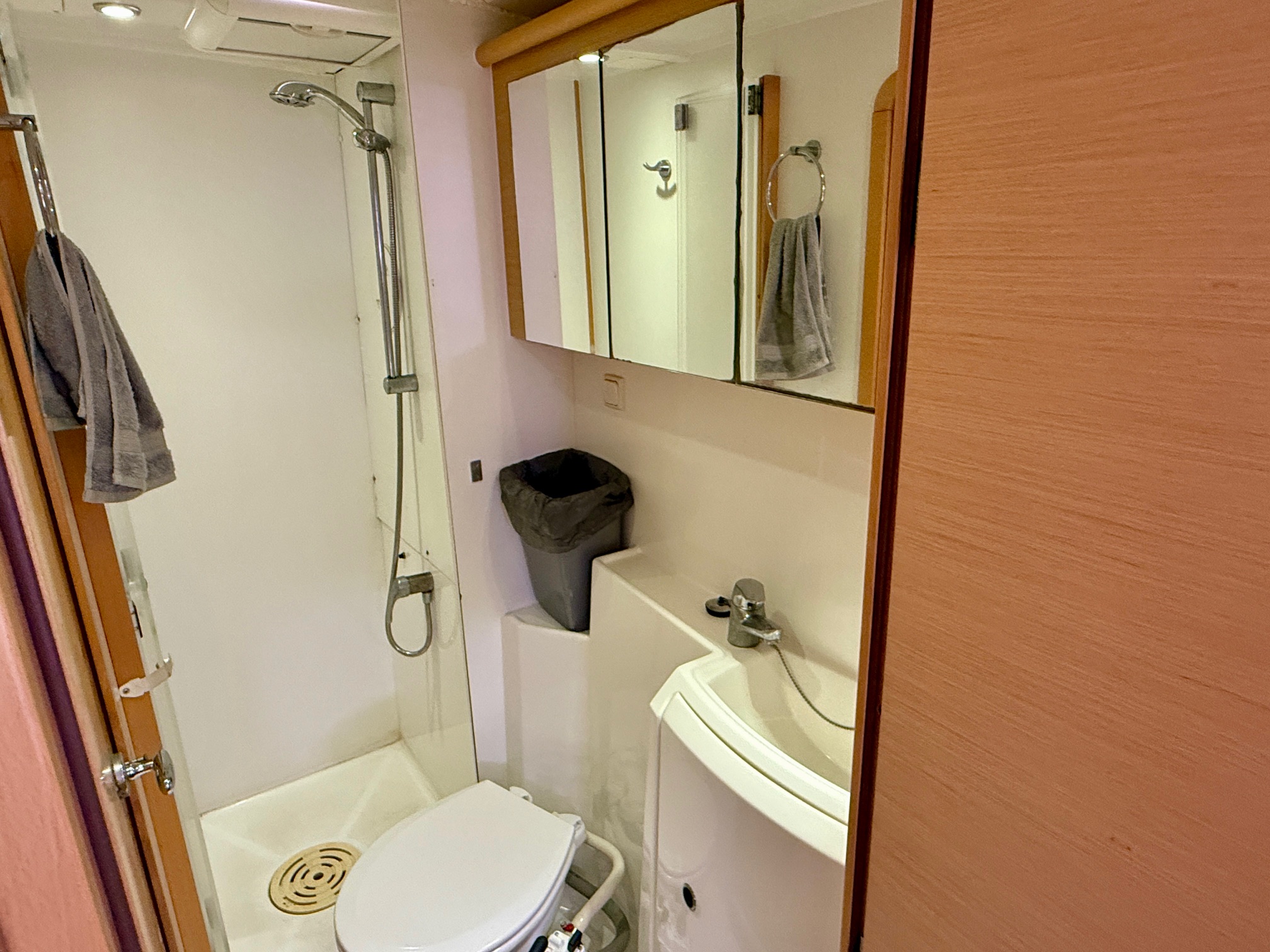

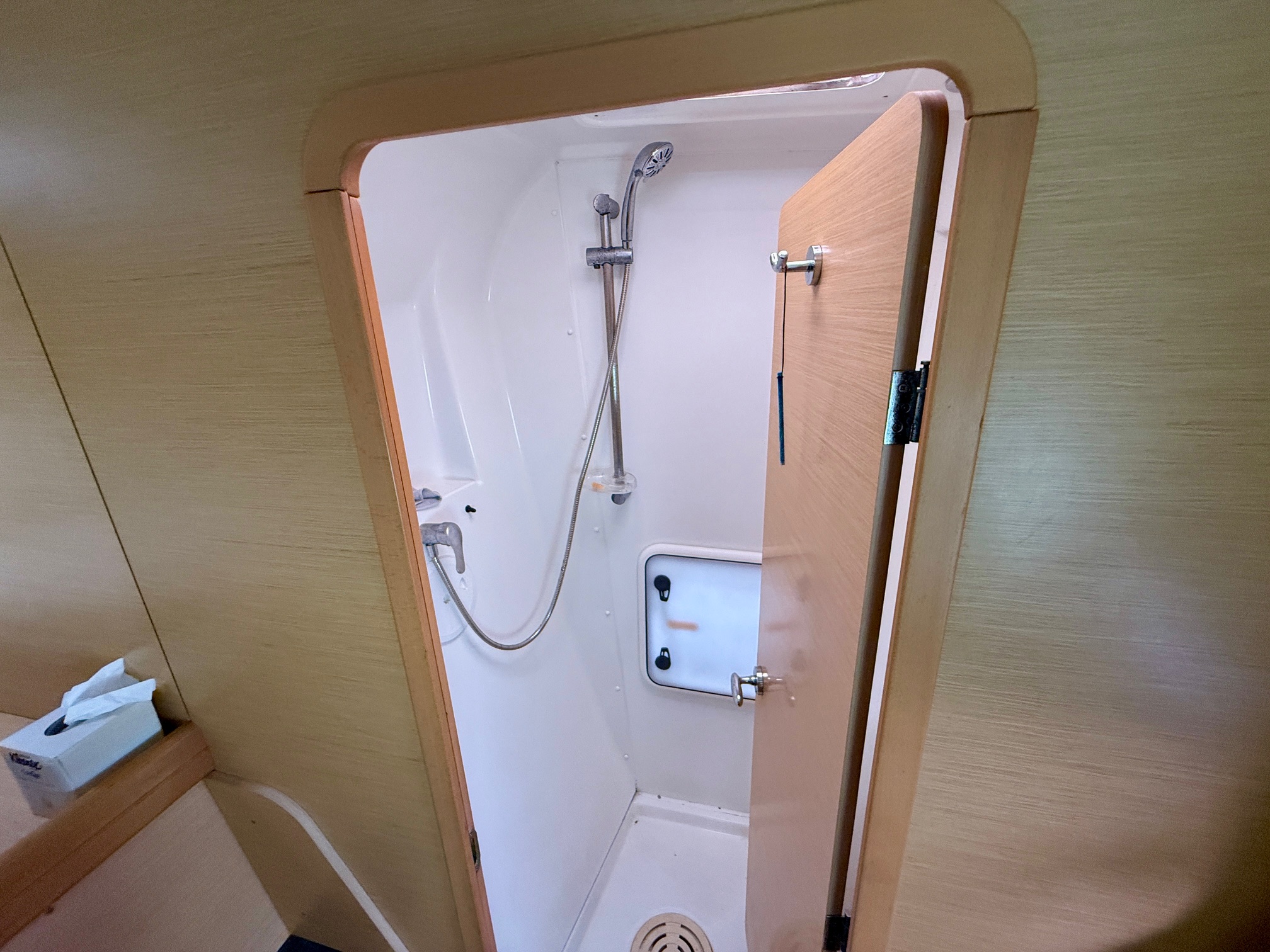

Aft starboard head

• Access from aft starboard cabin door
• 12 V overhead lighting
• Standing headroom: ± 1.95 m/ 6’5”
• Large manual marine head with holding tank with gravity drain/ deck pump out (same holding tank for front and aft WC)
• Fiberglass washbasin with hot/cold mixer tap, lockers, mirrors
• 1 opening deck hatch with blind

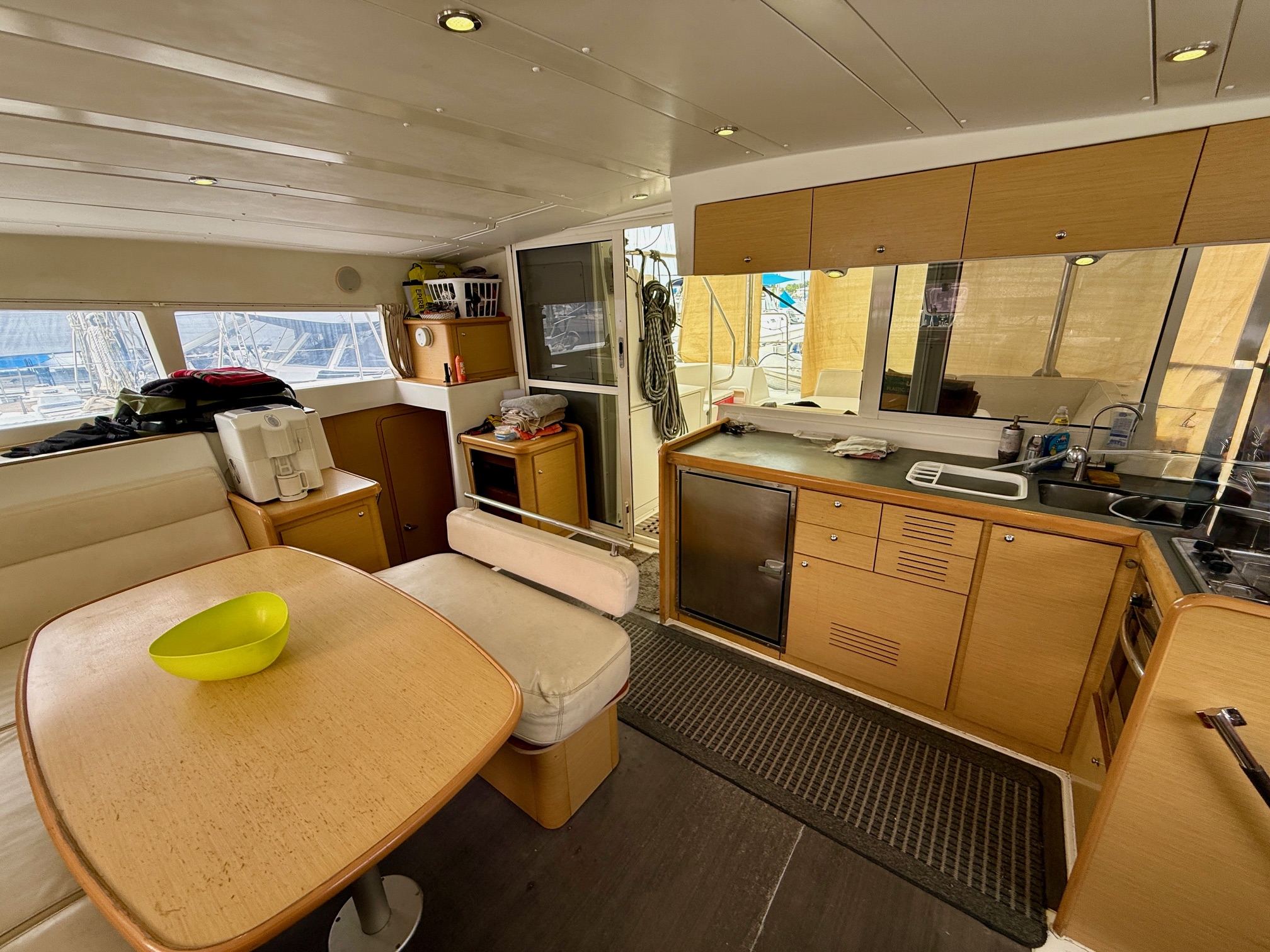

Galley

• Standing headroom: 2 m/6’7”
• 12V overhead lights
• White laminate countertop with wooden fiddles
• 3 burner stove
• Separate oven with grill
• 2 drawers
• Cupboard under sink with waste bin behind door
• Storage under central seating area
• Overhead cupboards
• Additional storage areas designed for (optional) additional fridge or freezer, a dishwasher and microwave oven
• 1 x12V fridge 130 L/34 US gal

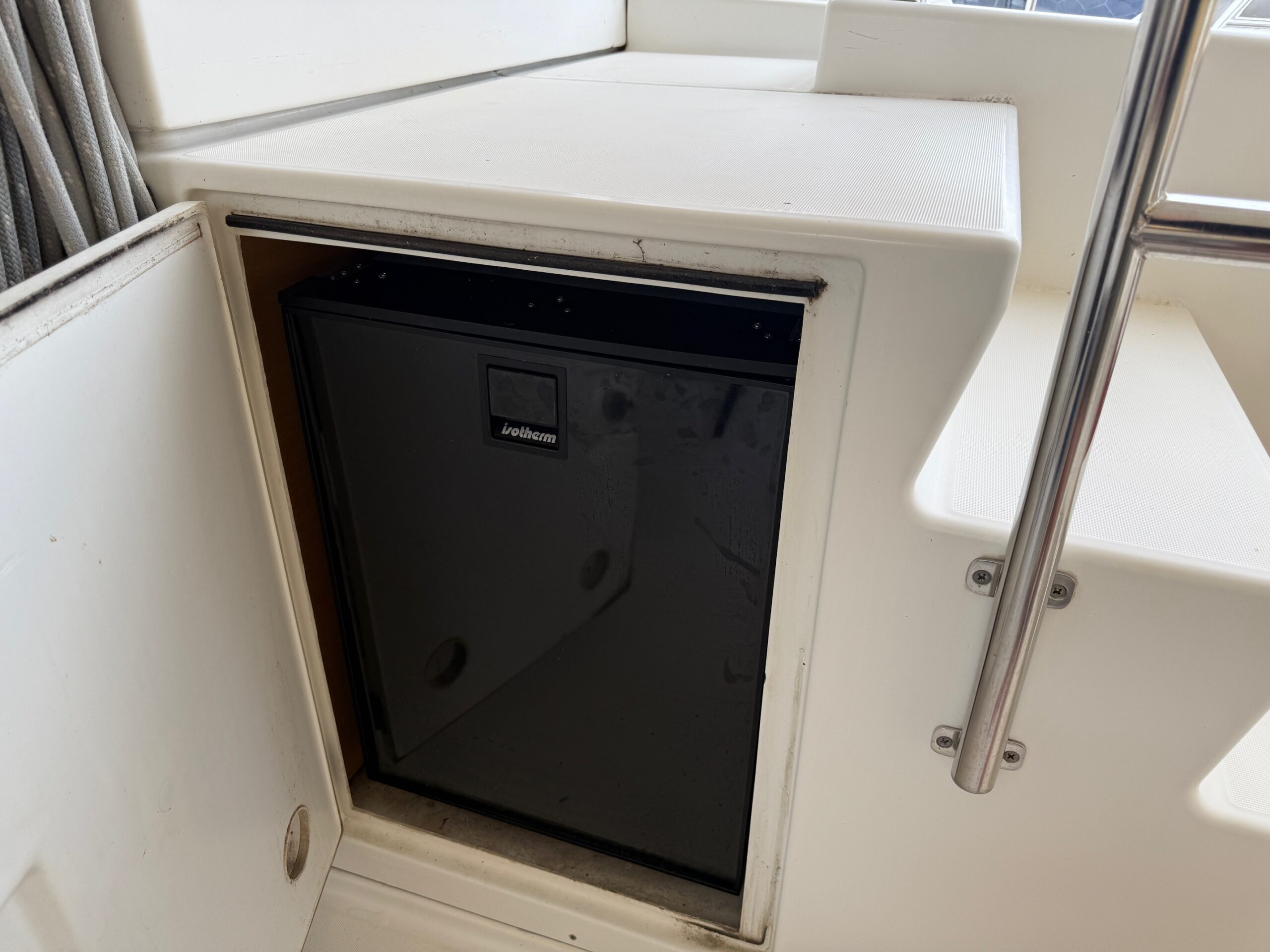

• Isotherm Cruise 90 Stainless Freezer new 2021
• Isotherm Cruise 85 Elegance Frig/Freezer new 2021
• Counter Ice Maker new 2021
• Induction Cook Plate new 2021
• Electronic Propane Kitchen Shutoff new 2021

• Access from opening hatch in transom
• 2 x 40 hp sail drive diesel
• Motor shut off at helm station
• Double motor throttle control at helm station
• Motor compartments sound insulation
• Motor compartments air intakes on aft crossbeam
• 12V Air exhaust fans
• 1 engine start battery 12V – 110 Ah (per engine)

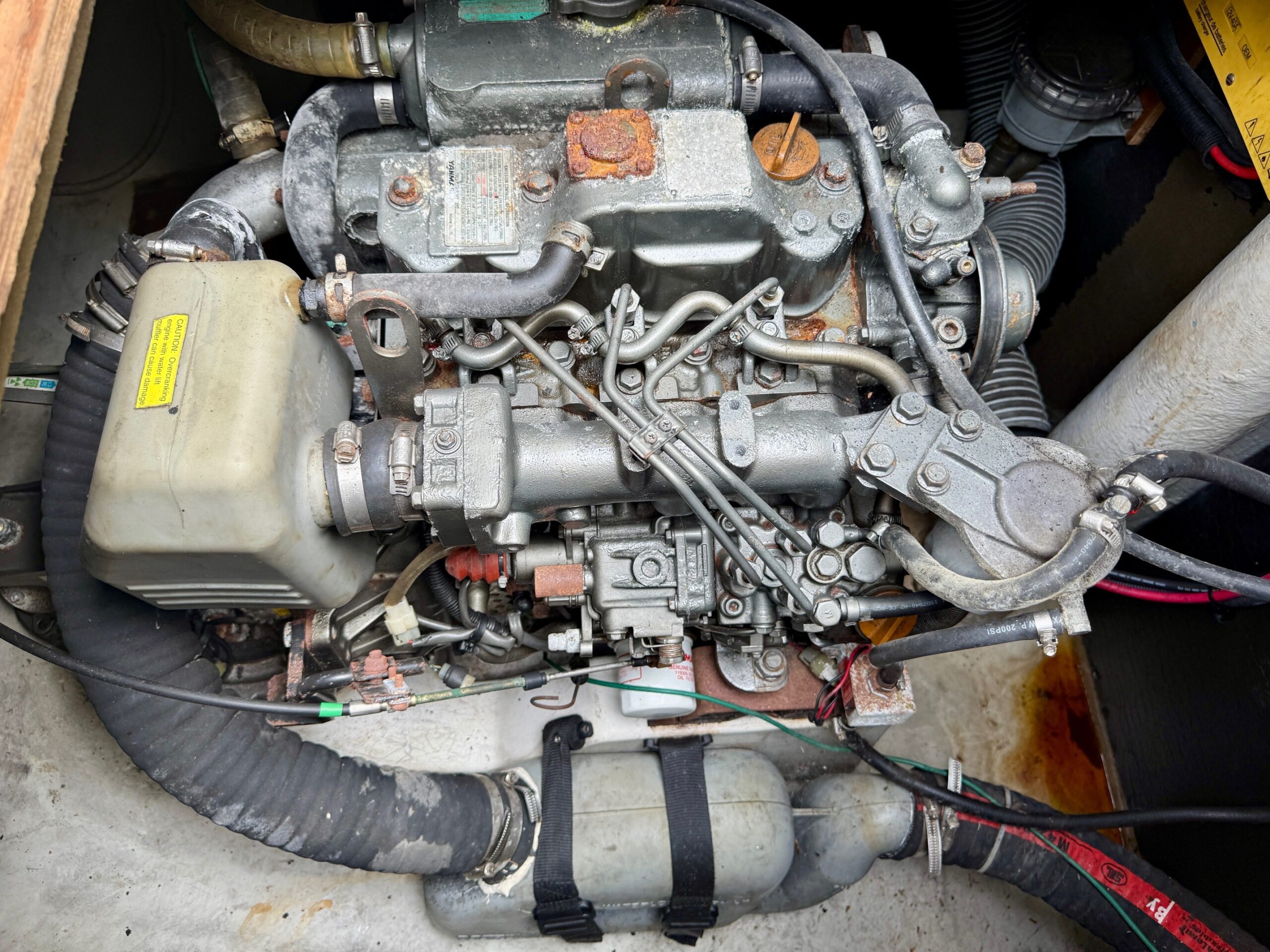

• 39hp Yanmar diesels with 3800 hours
• SD60 Saildrives new 2021
• Flexifold 3 blade folding prop new 2021
• Racor 500FG fuel/water separator filters (2) new 2021
• Yanmar Digital Oil Pressure and Engine Temperature Sending Unit Options (both engines) new 2021

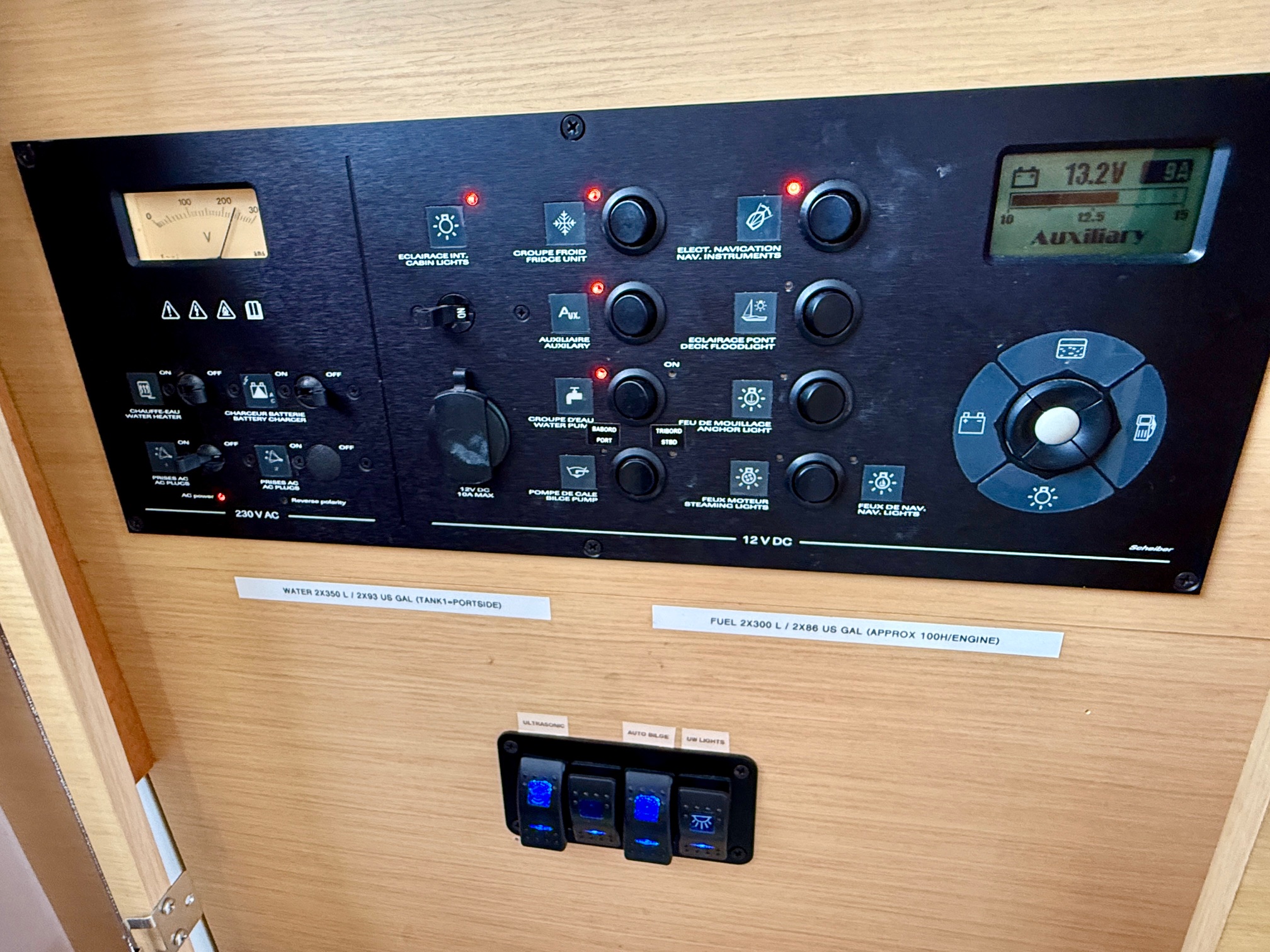

• Backlit 12 V Electrical panel
• LCD display with: voltmeter, Ah-meter, water level gauge, diesel level gauge, low level alarm for diesel and water tanks
• 2 Start batteries: 12V - 110 Ah
• 2 House batteries: 12V - 140 Ah
• LED lights
• Solar Installation all new 2021

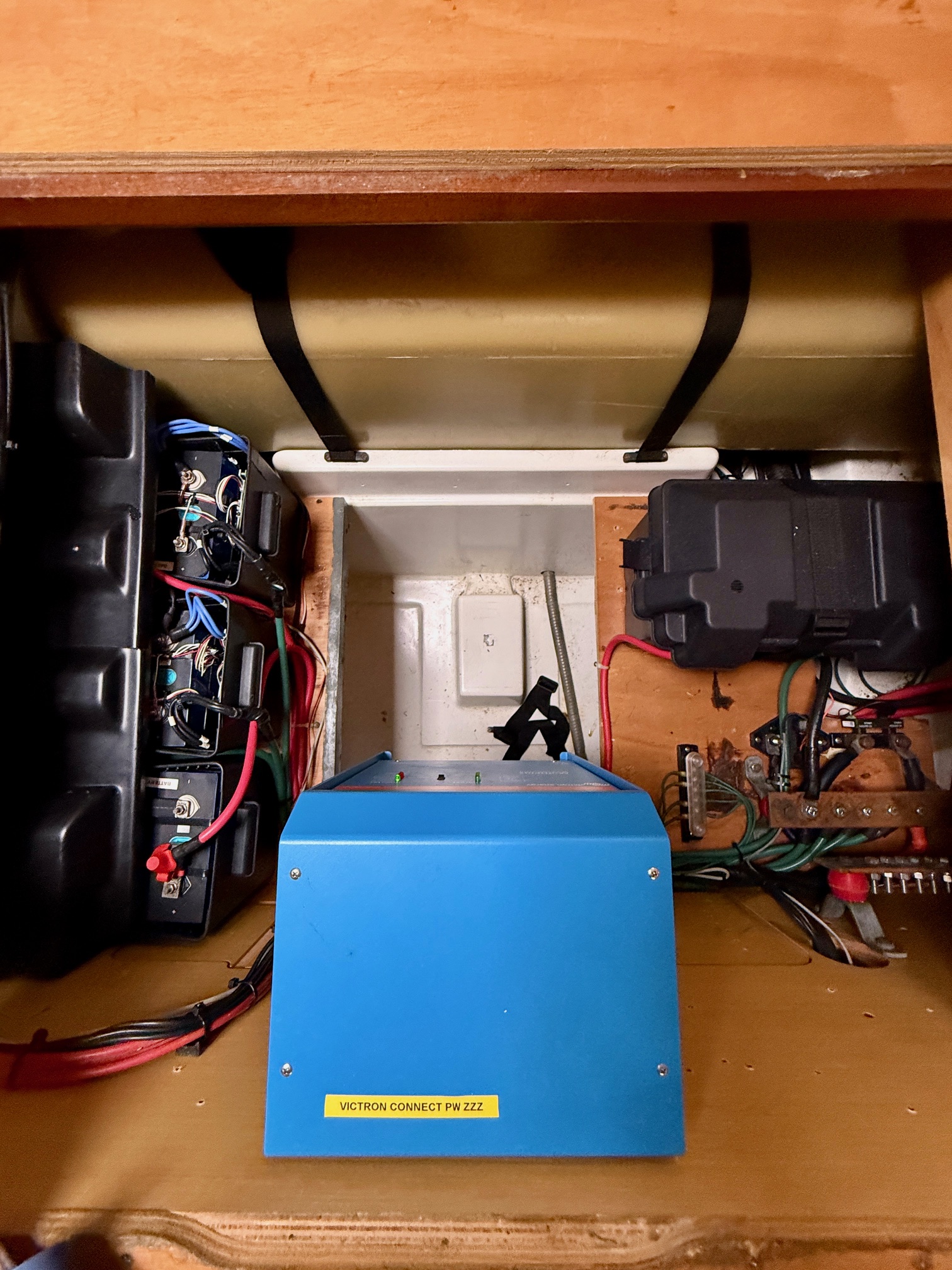

• Victron 3000w Charger Inverter 50hz/230v
• Victron MPPT 100/50 (5)
• Victron Shunt

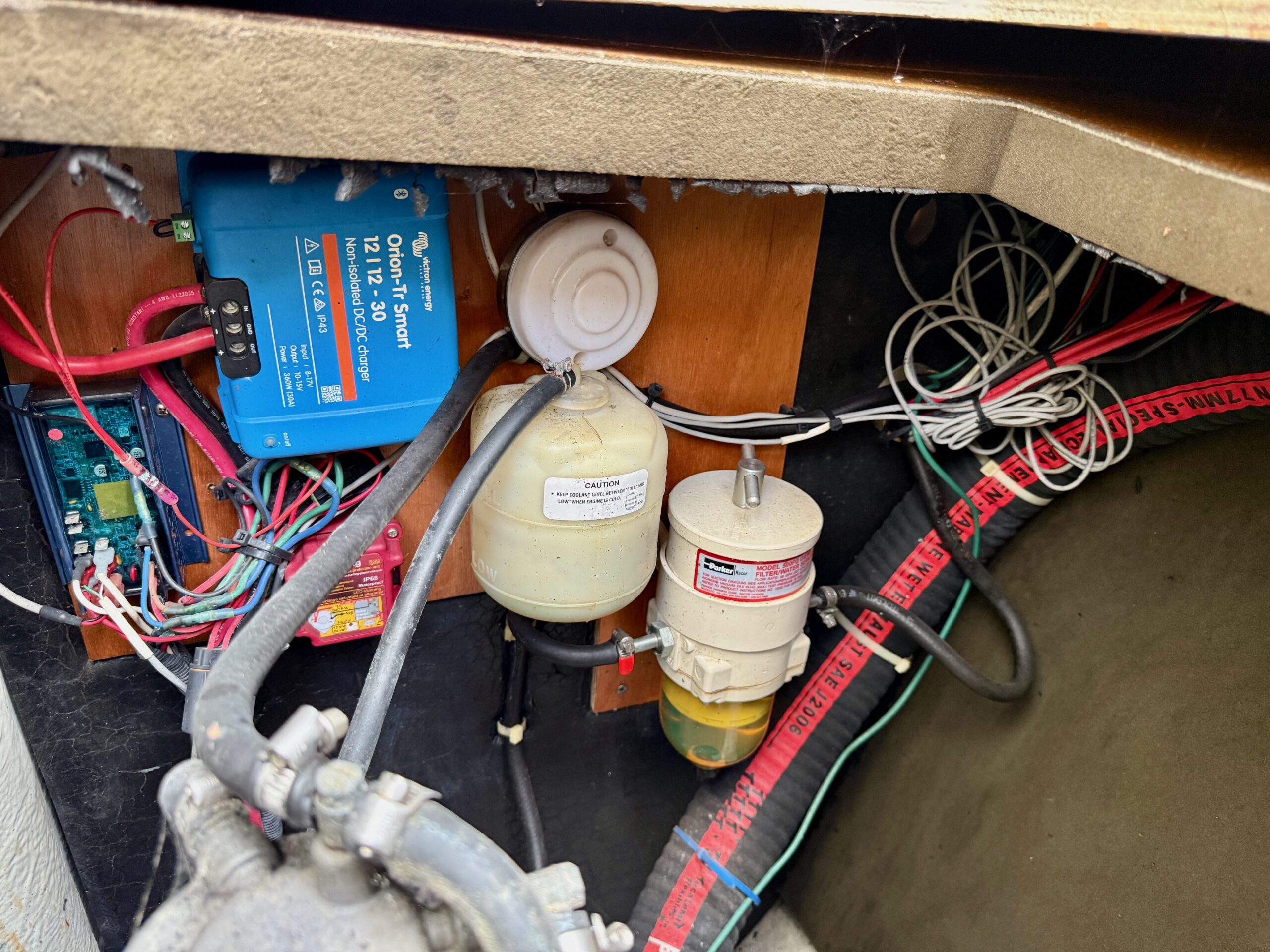

• Victron 30A dc-dc chargers (2)
• Victron GX50
• Sterling Isolators (2)
• Balmar 100a alternators with smart regulators (2)
• 1120 AH Lithium Battery Bank (280ah x 4)

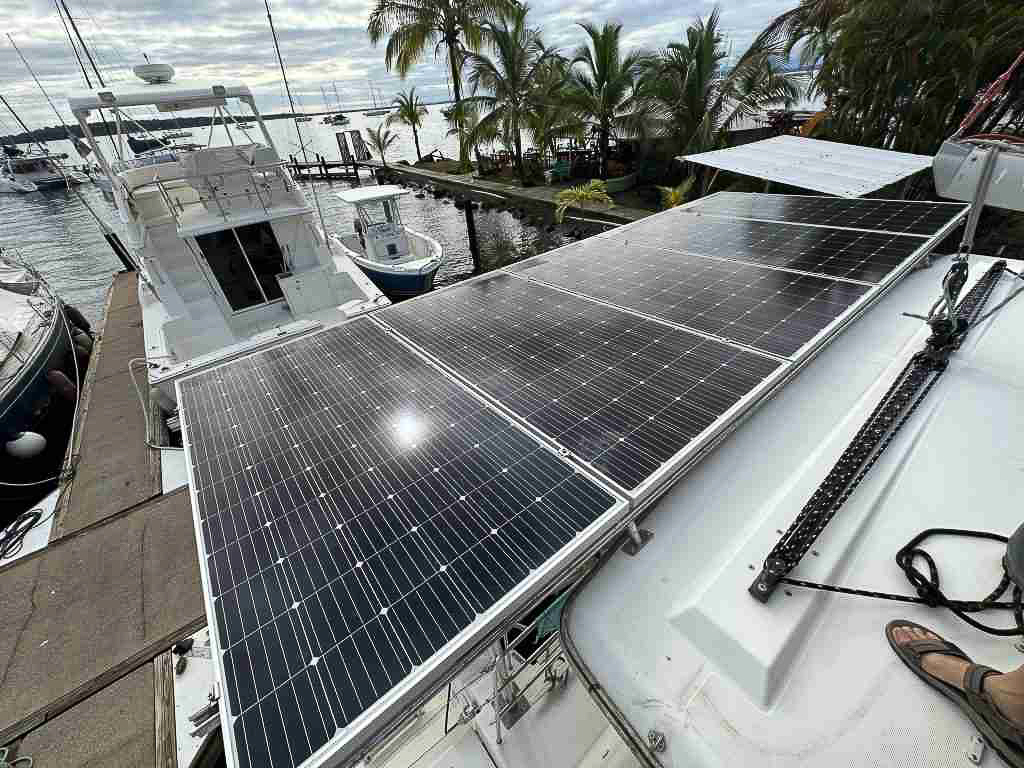

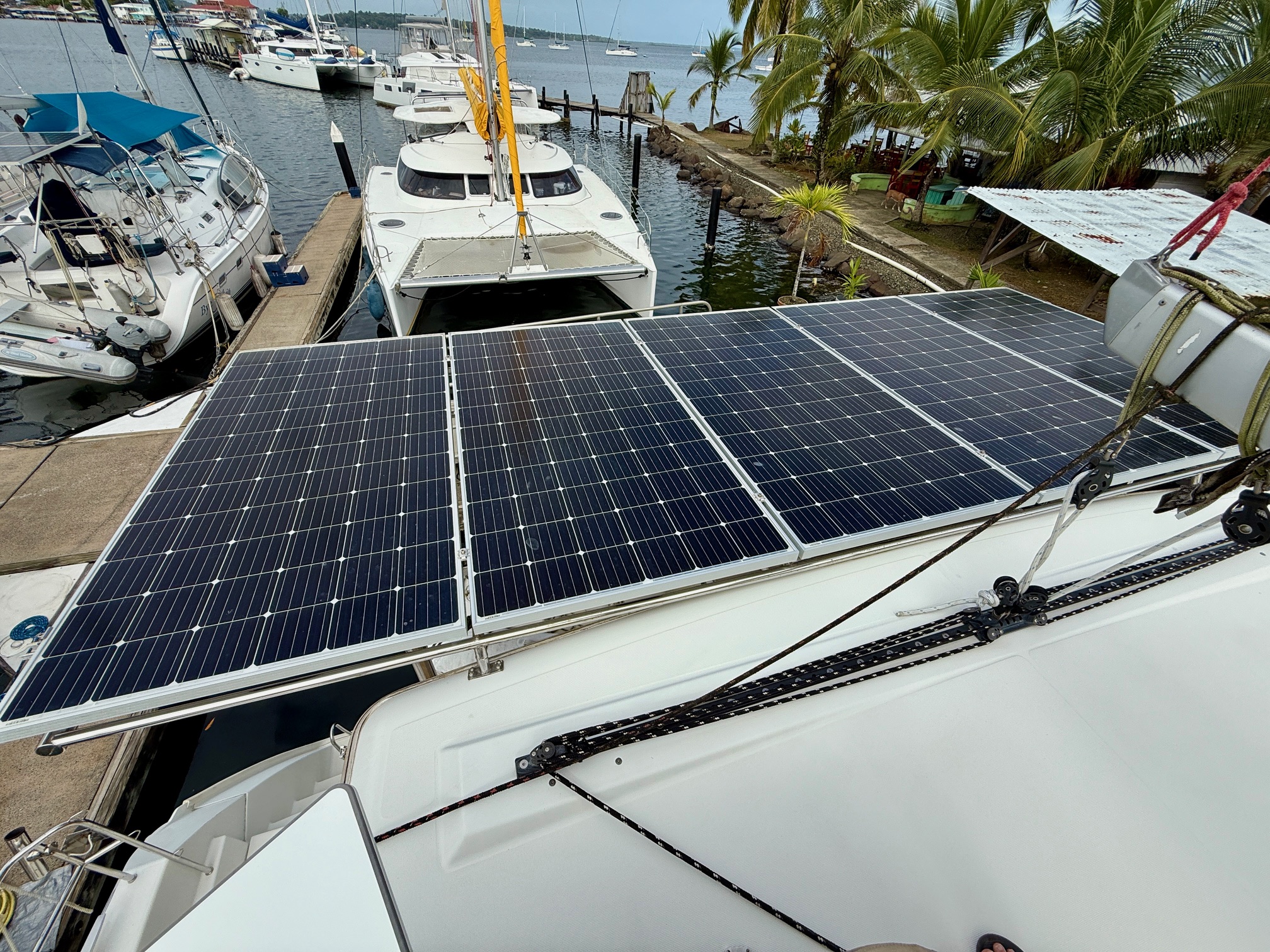

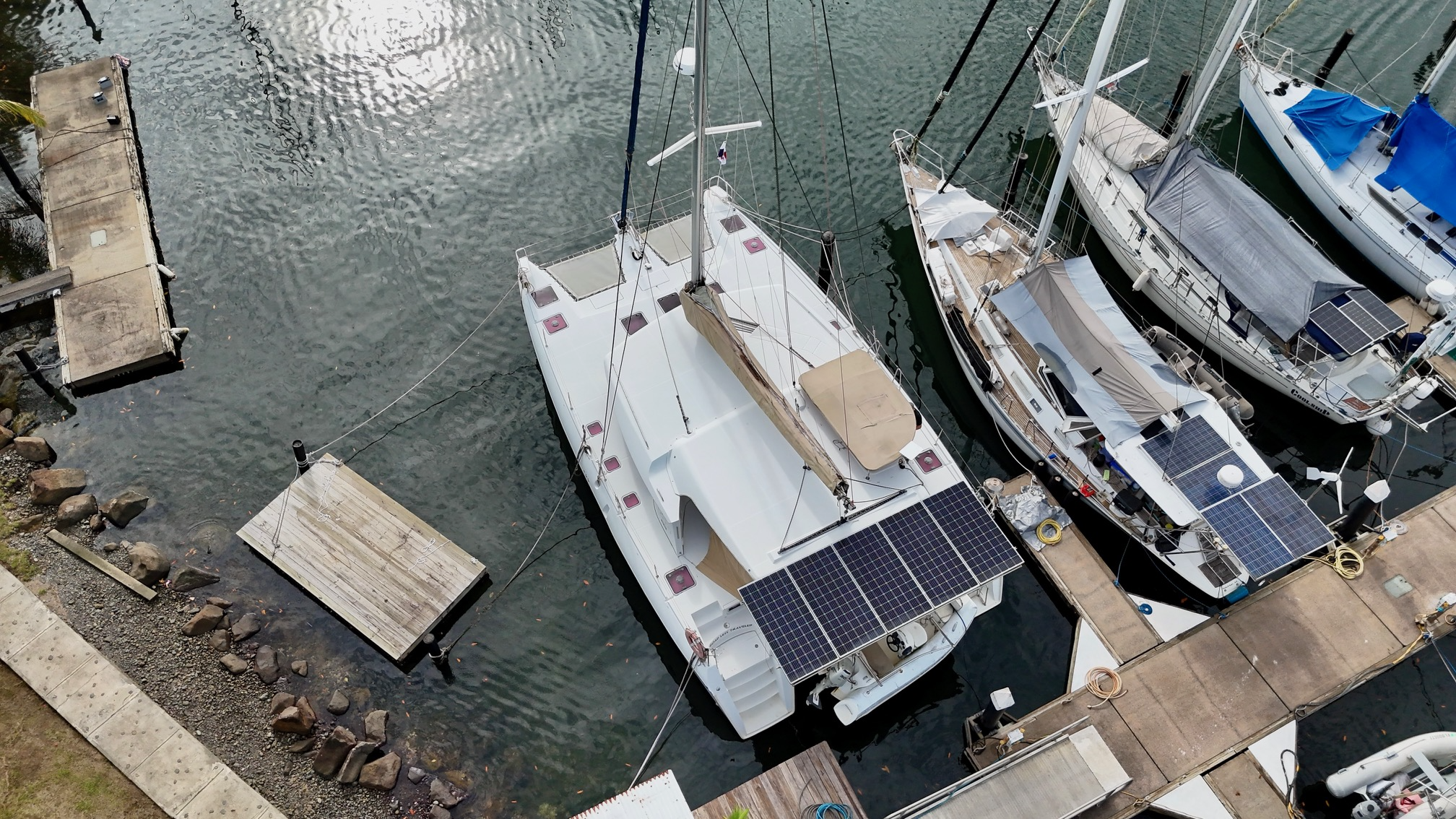

• 1925w Solar (5 panels)
• New 230v outlets in main salon and cabins

• 1 Full batten full roach mainsail, 66,4 m²/ 714 sq ft
• 1 Furling genoa with UV protective band, 35,9 m²/ 386 sq ft
• Asymetrical Spinnaker with sock and Bowsprit Rigging back to helm new 2021
• Blue Water Mainsail by Precision Sails (Nov 2022)
• Full Service on Lewmar Electric Power Winch 2021
• Custom Sail Bag with lazy jacks and Helm Bimini new 2021

Standing Rigging

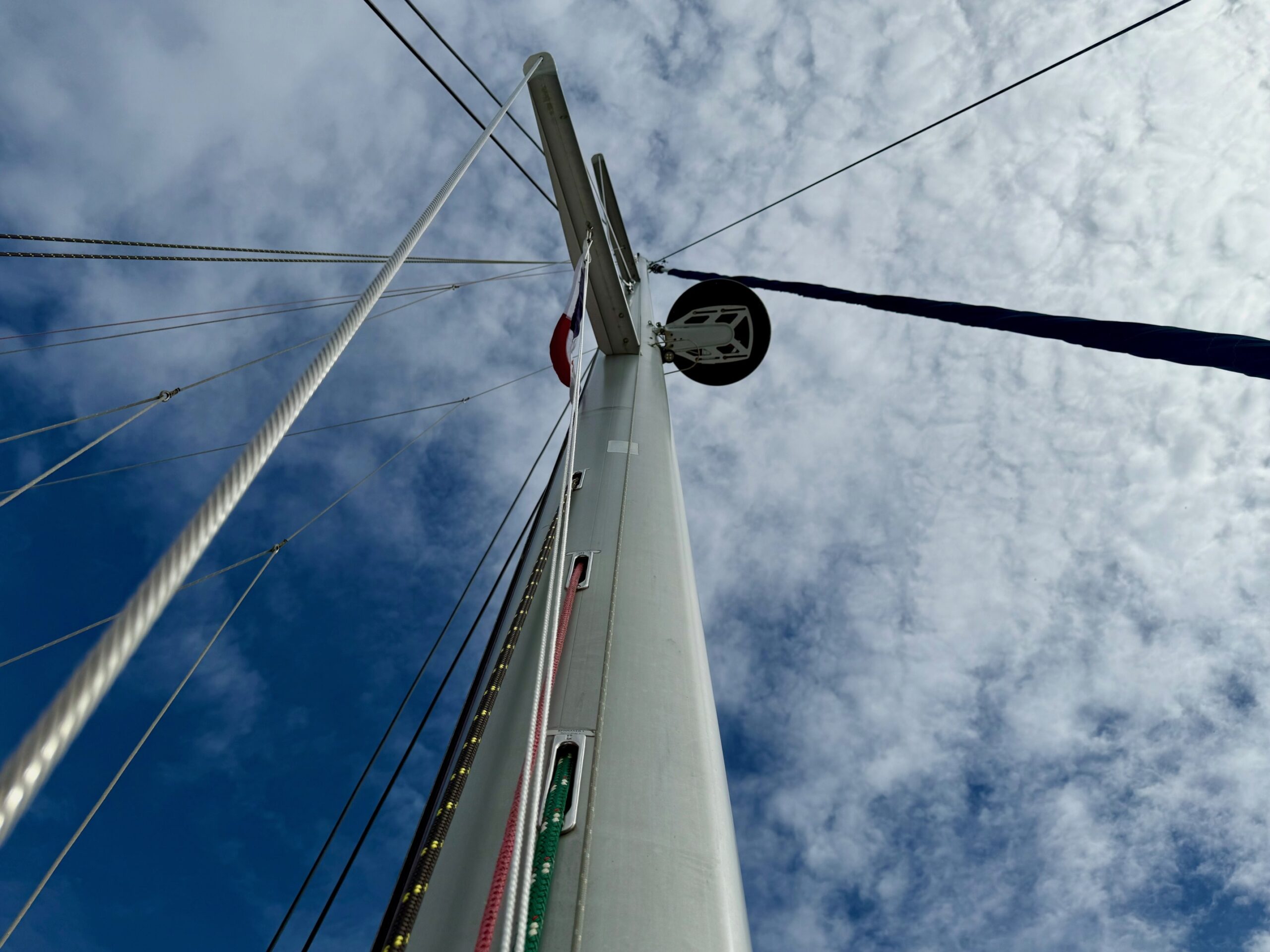

• Anodized aluminum deck-stepped mast (18 m /59'1'')
• Single spreaders
• 1 Anodized aluminum boom
• 2 Shroud deck chainplates
• 1 Forestay chainplate on composite central rostrum
• New Standing Rigging and Diamonds

• 1 Double purchase main halyard
• 1 Genoa halyard
• 1 Double purchase mainsheet led back to helm station, mainsheet traveler and car on hard top bimini
• 2 Genoa sheets
• 2 Genoa sheet tracks
• 3 Winches at helm station:
• 1 Winch 46.2ST for:
• Port mainsheet traveller line
• Starboard mainsheet traveller line
• Port genoa sheet
• 1 Electric Winch 44.2STE for:
• Main halyard
• Genoa halyard
• Optional spinnaker halyard
• Boom topping lift
• 1 Winch 46.2ST for
• Main sheet
• Reef 1 (automatic)
• Reef 2 (automatic)
• Reef 3 (conventional)
• Starboard genoa sheet
• Genoa furling line
• 3 reefing lines (2 auto and 1 conventional)
• Line jammers
• 1 Fixed mainsail clew padeye
• 1 Genoa furler line
• 2 Adjustable lazy jacks
• 2 Winch handles with holder
