Explore the 2023 Matrix Yachts Silhouette 80 Sail Catamaran: Performance, Luxury, and Innovation
Step aboard the 2023 Matrix Yachts Silhouette 80 Sail Catamaran and experience an unparalleled blend of performance, luxury, and innovative design. The master cabin’s exceptional design makes this yacht one of the most sought-after mega yachts in its class. The previous Silhouette model was honored with the South African Boating Award for Best Sailing Craft Over 10 Meters and has consistently earned prestigious charter awards. Known for its striking looks and superior capabilities, the Silhouette 80 stands out for its performance, luxury, and value in the sailing world.
Premium Features and Unmatched Value
The 2023 Silhouette 80 is packed with premium yacht features that come as standard, setting it apart from competitors. These include a carbon fiber mast and boom, Aramid side stays, powered self-tailing winches, high-quality sails, motorized blinds, frameless glass shower cubicles, laminated glass windows, a large LED TV, and lightweight carbon fiber gangplanks. While these features are often optional on other vessels, they come standard on the Silhouette 80, ensuring long-term value and protecting owners' investments.
Optimized for Performance
Built with a focus on performance and weight reduction, the Silhouette 80 utilizes advanced materials and synthetic wall finishes to enhance sailing efficiency. The yacht is designed to accommodate 10 guests and 6 crew members in spacious en-suite cabins, offering ultimate comfort and luxury for everyone on board.
Thoughtful Design for Maximum Comfort

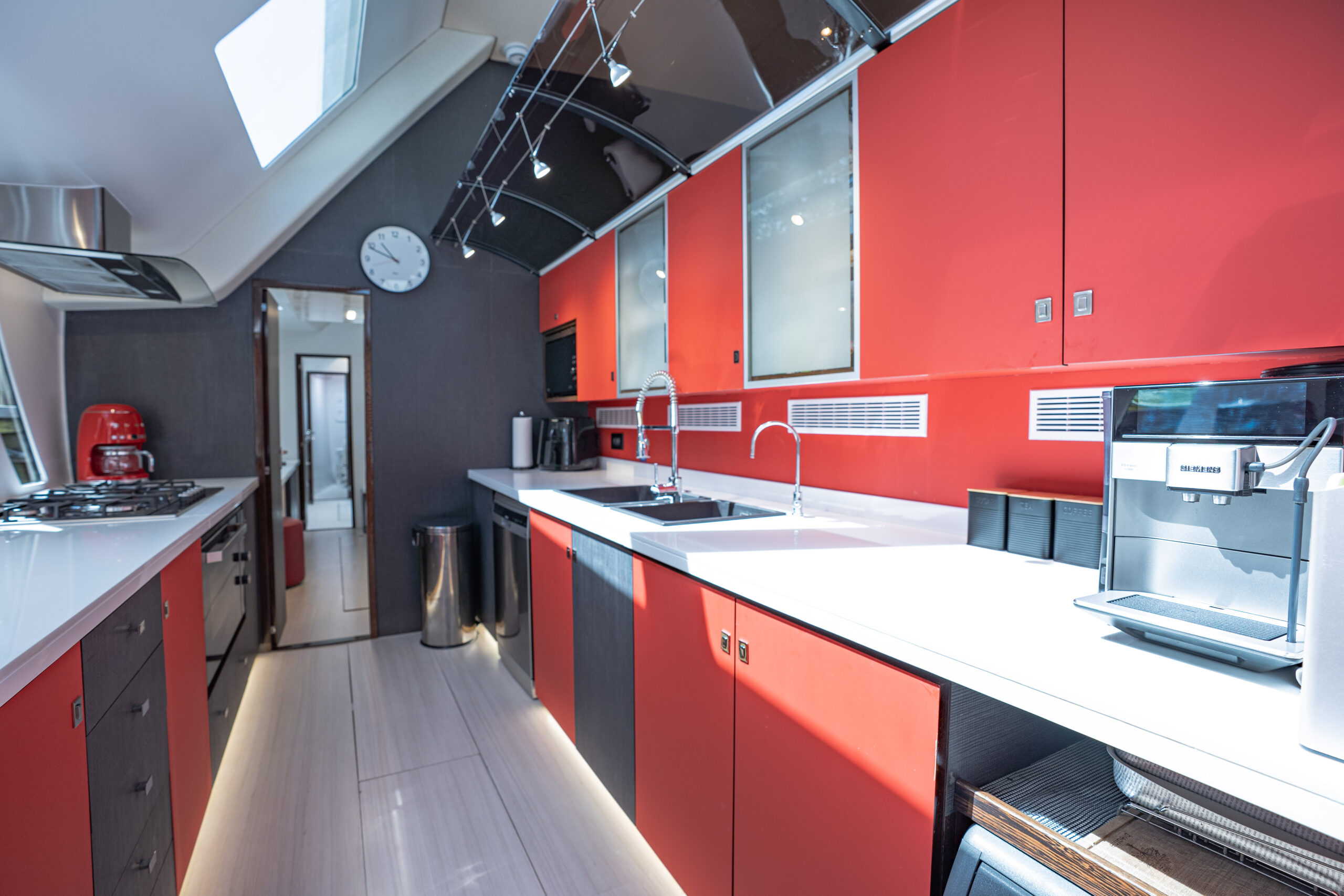

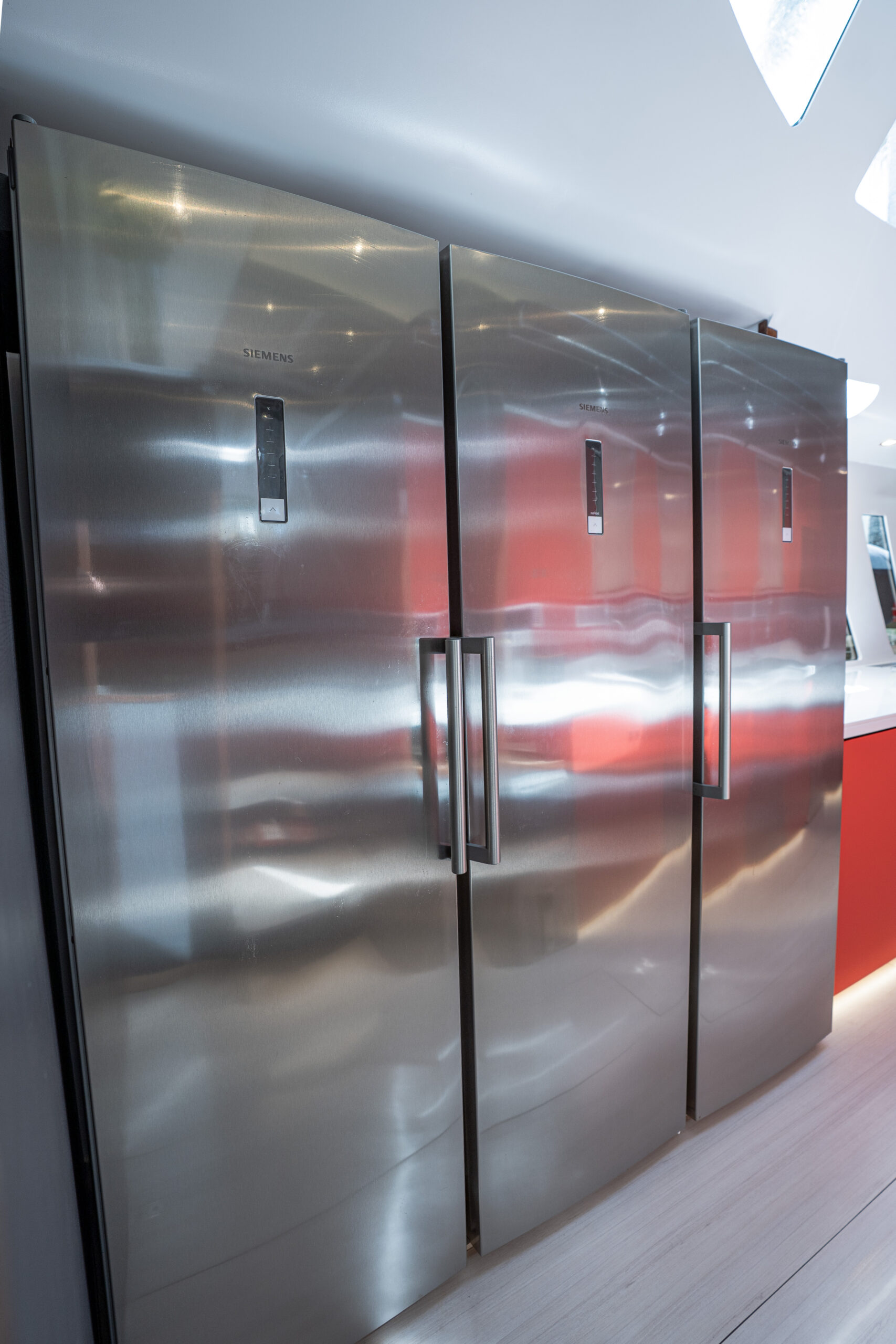

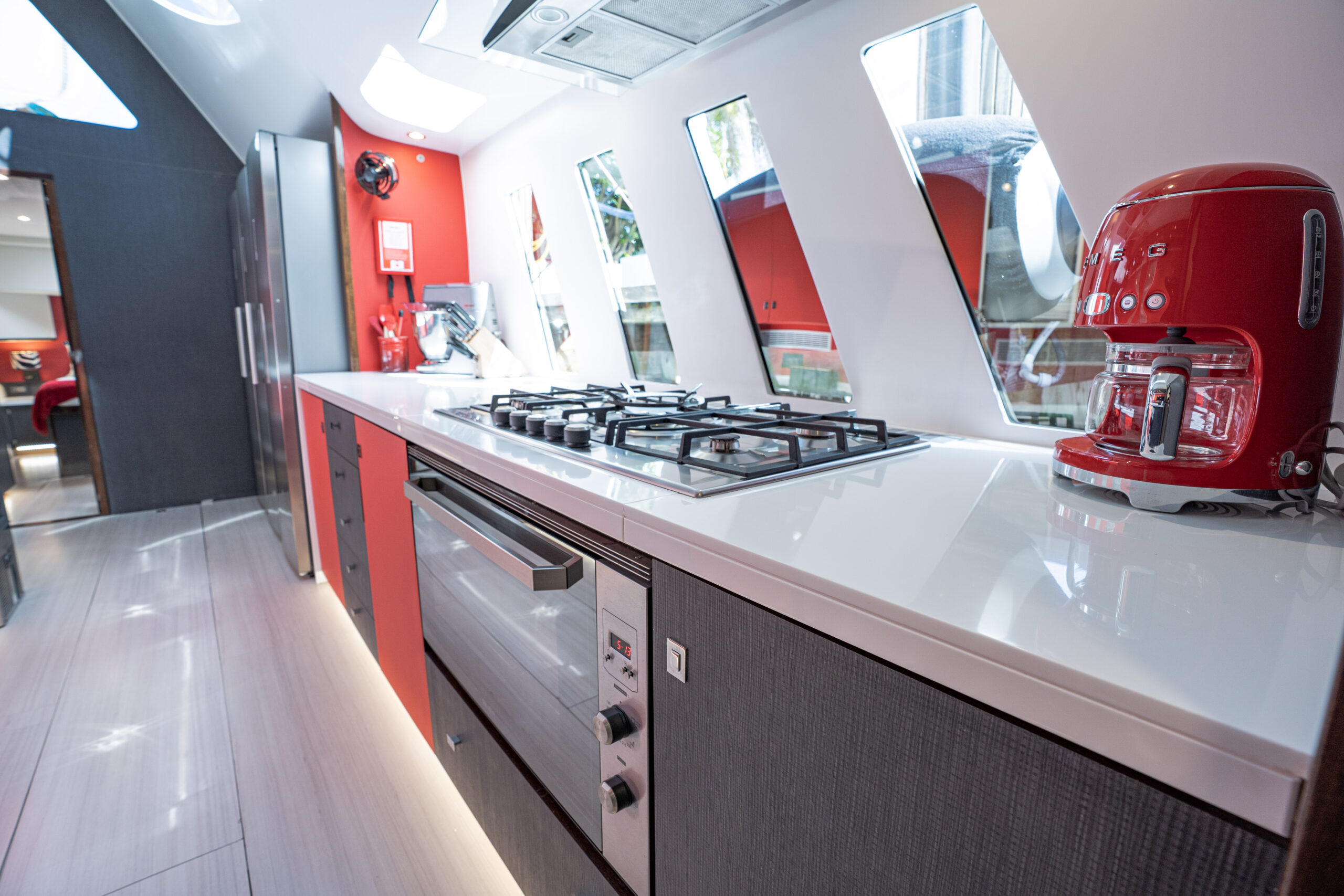

The bridge deck galley is a chef’s dream, featuring ample refrigeration, storage, and workspace to ensure the crew delivers top-tier service. The starboard hull houses generously sized crew quarters with en-suite facilities, while the captain’s private cabin comes with access to a workshop and laundry equipped with commercial-grade appliances, reducing reliance on shore services.
Innovation and Versatility

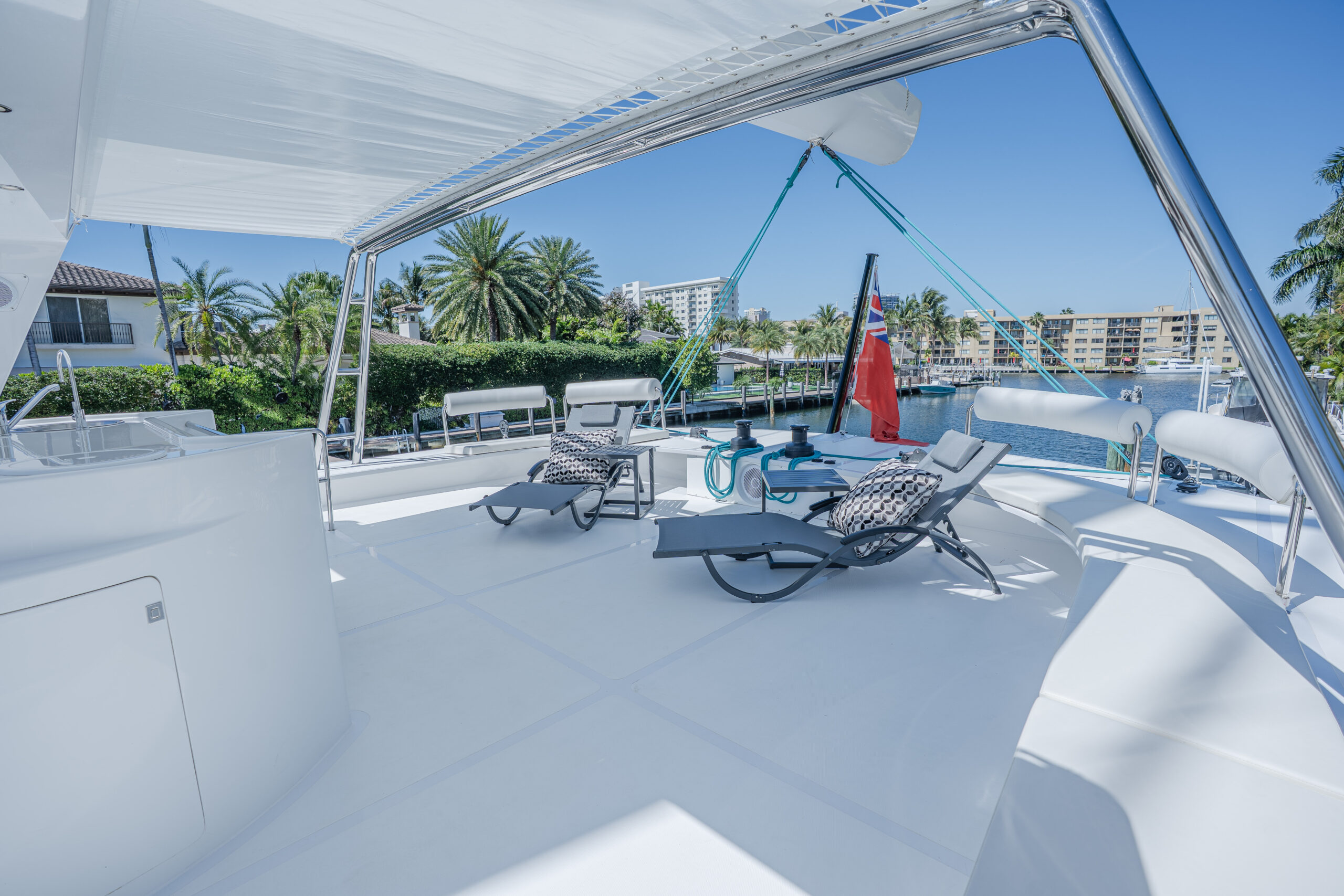

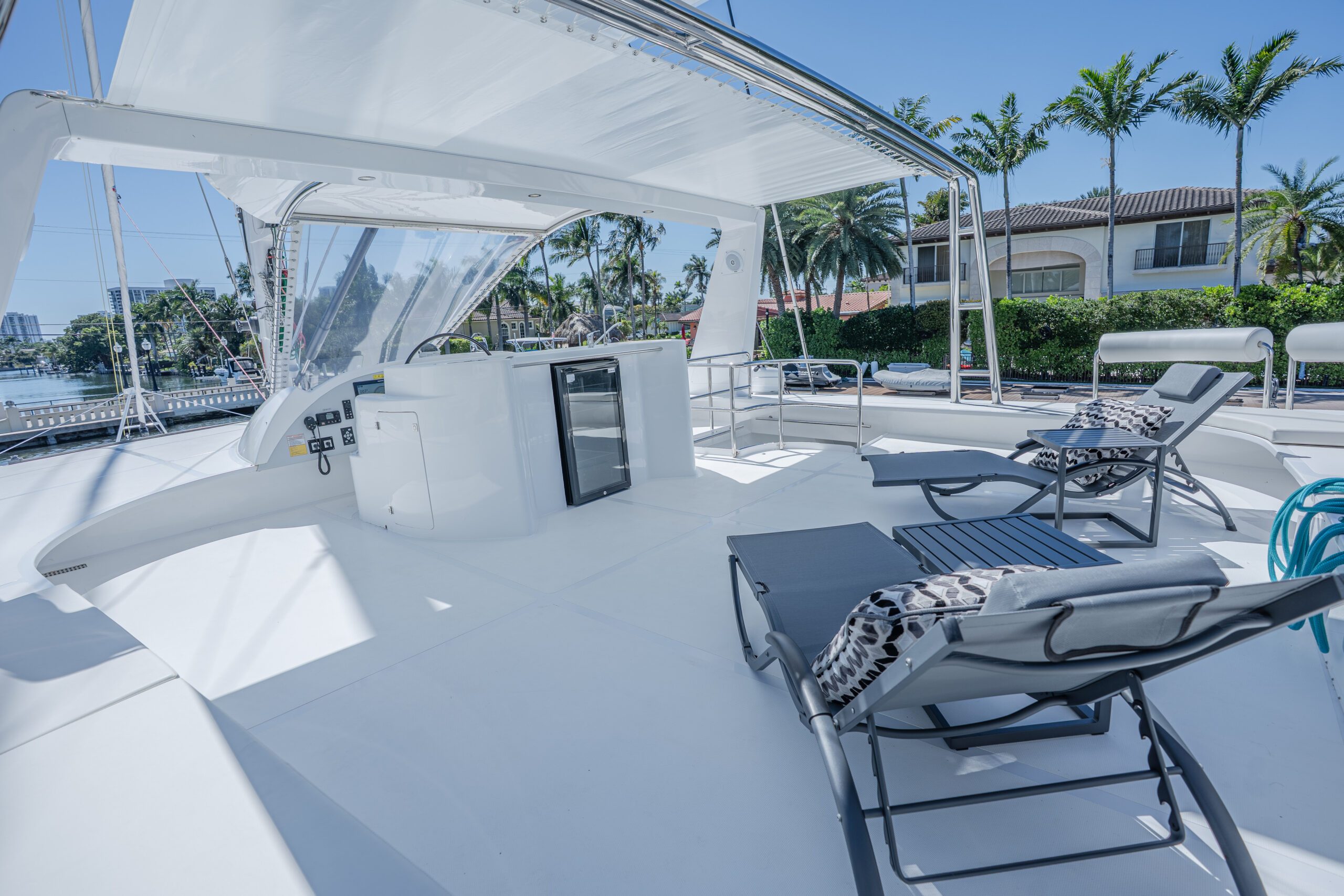

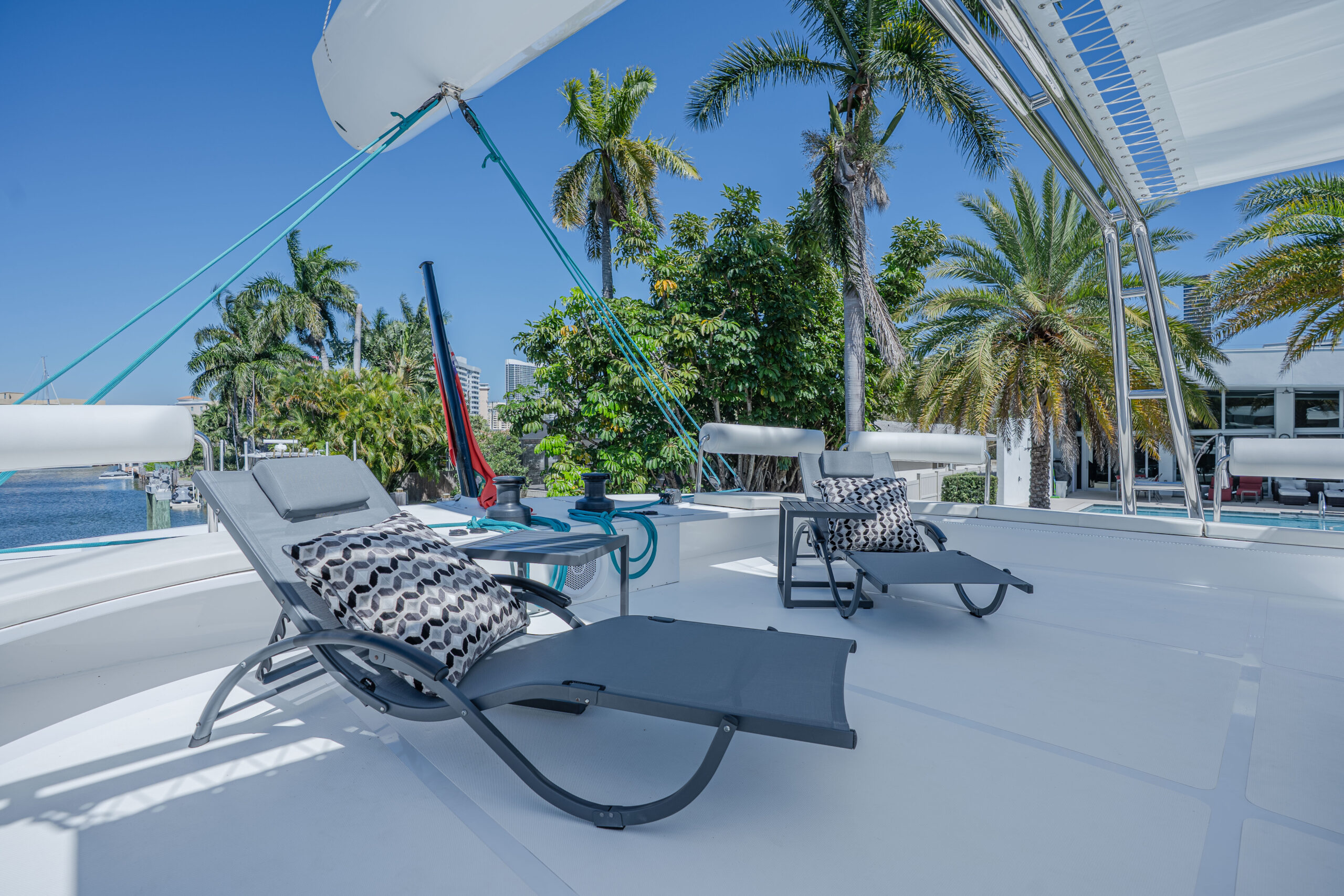

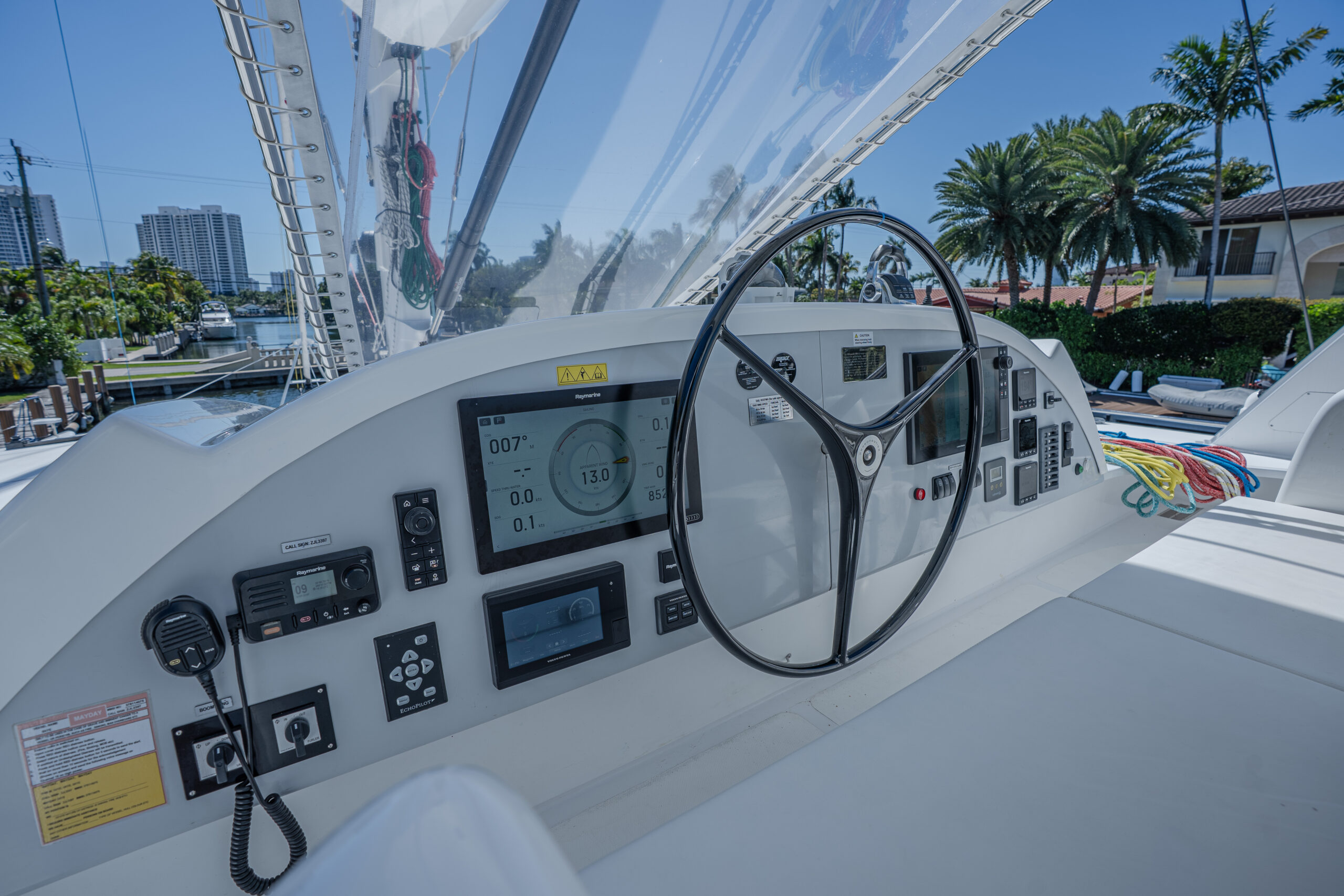

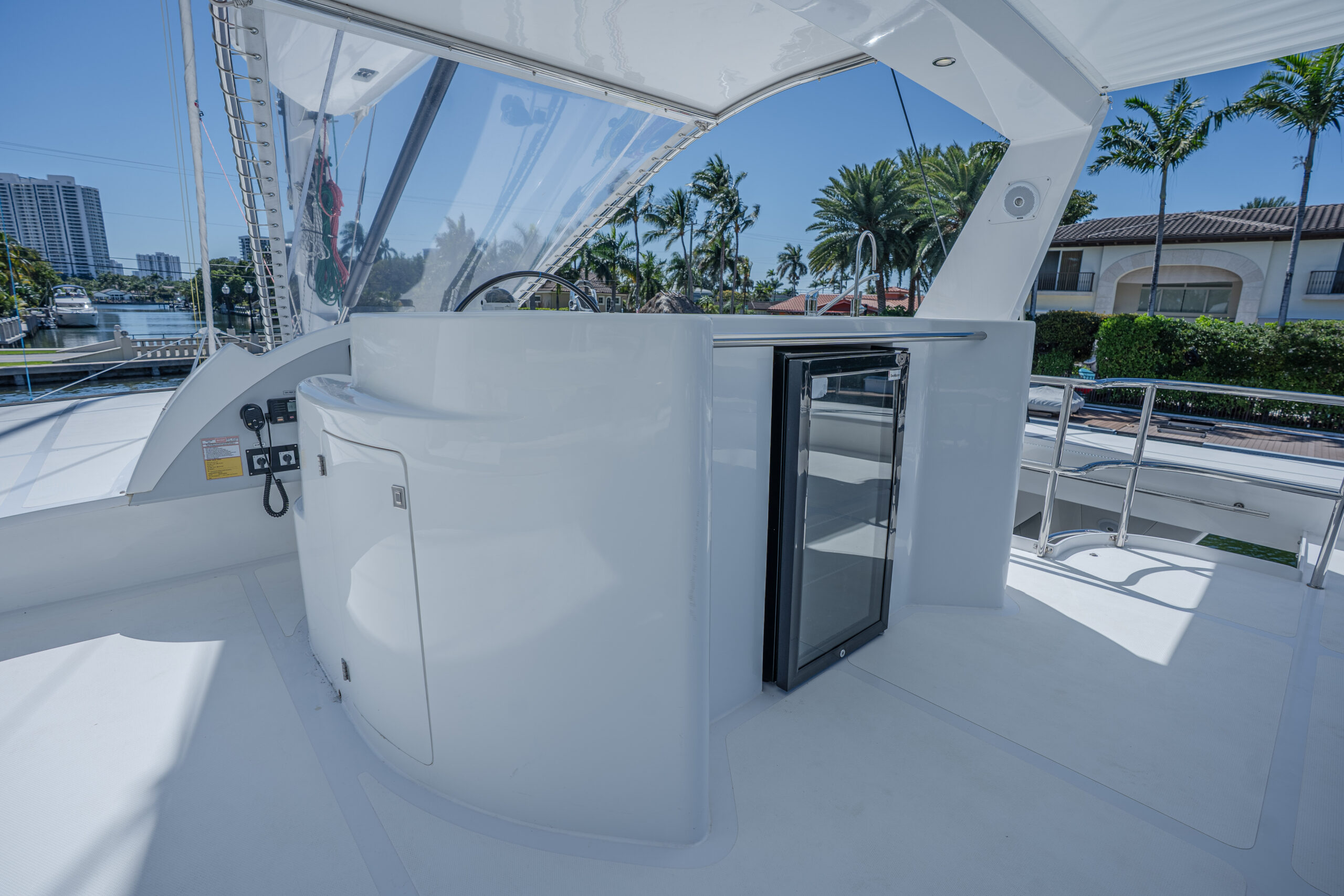

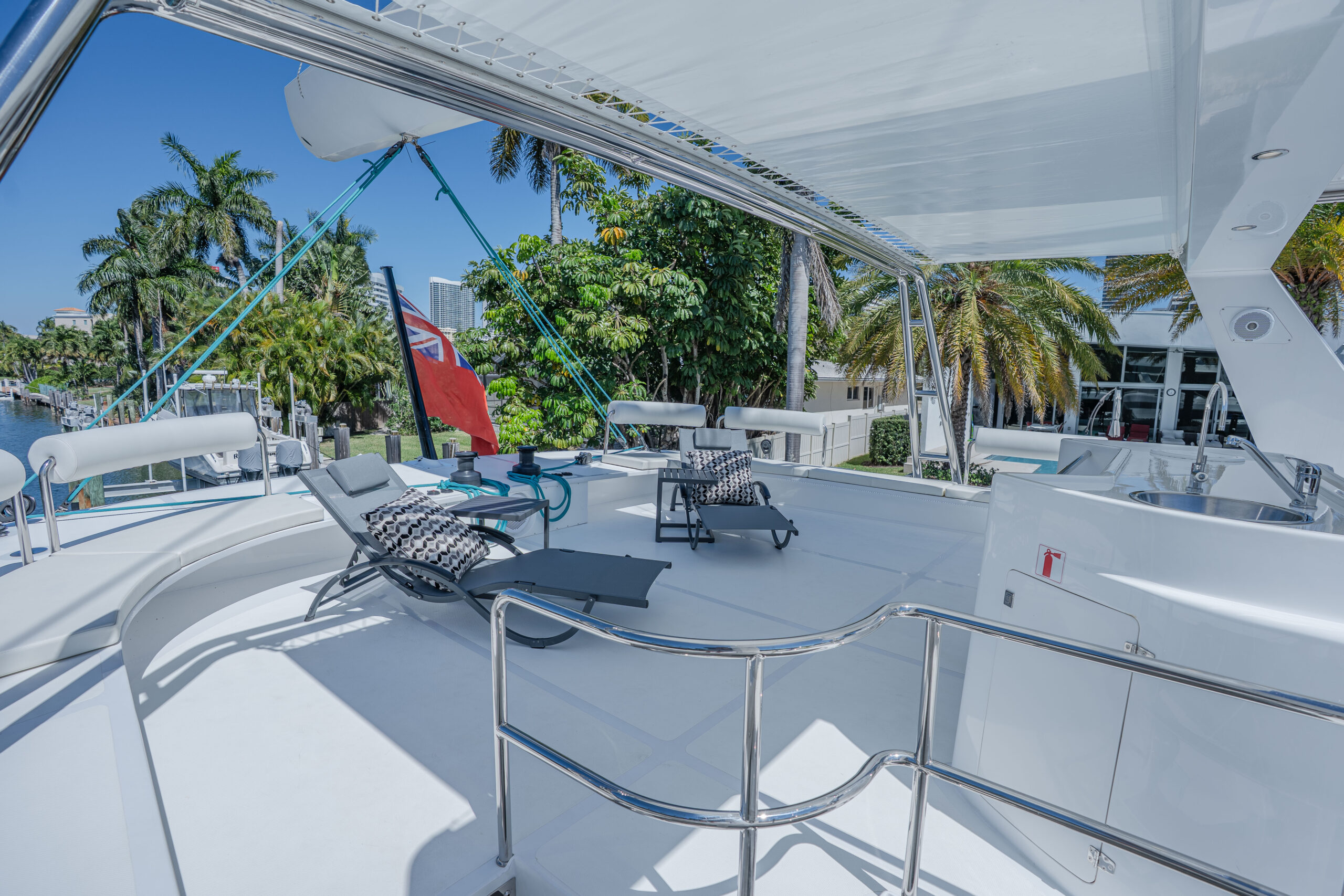

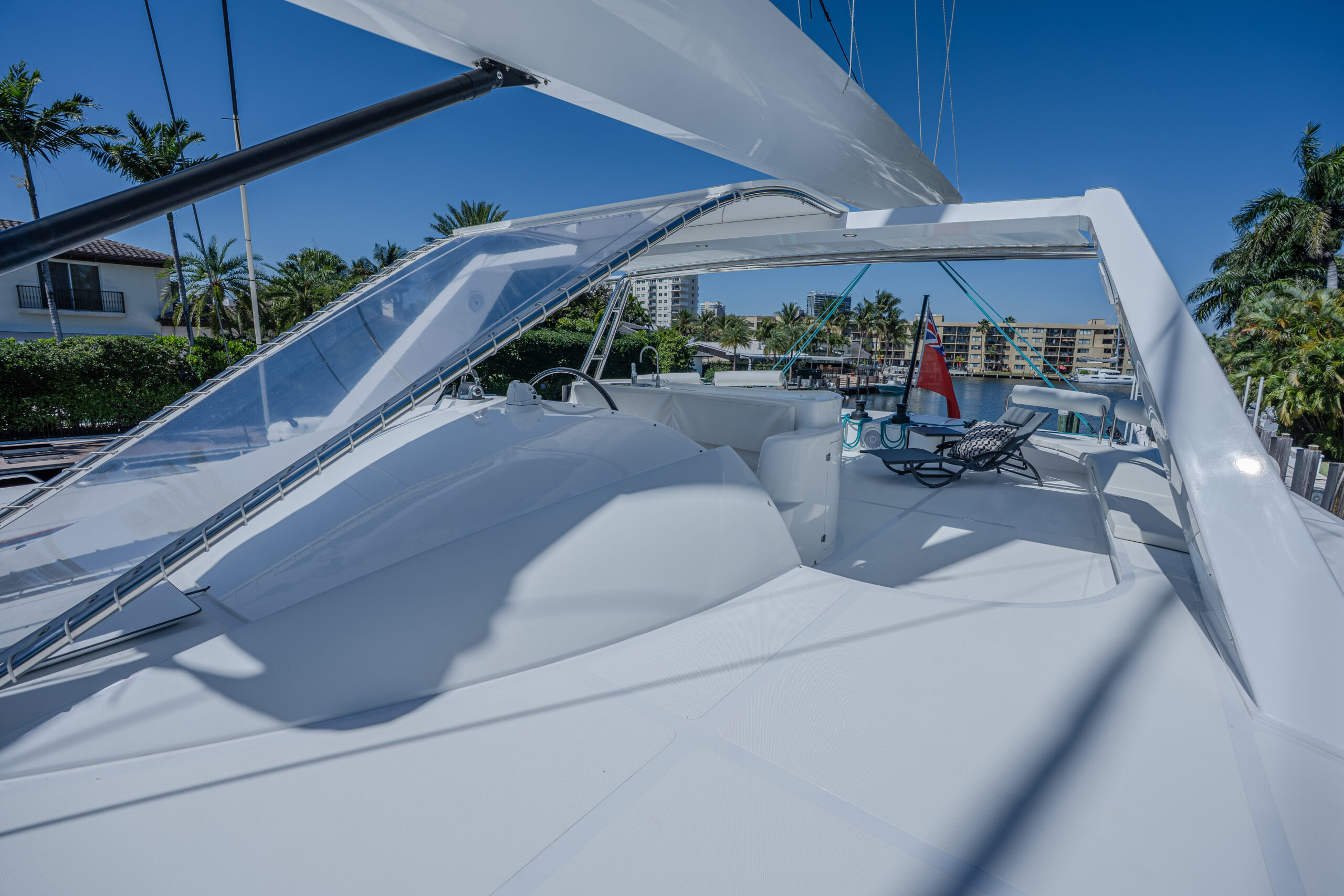

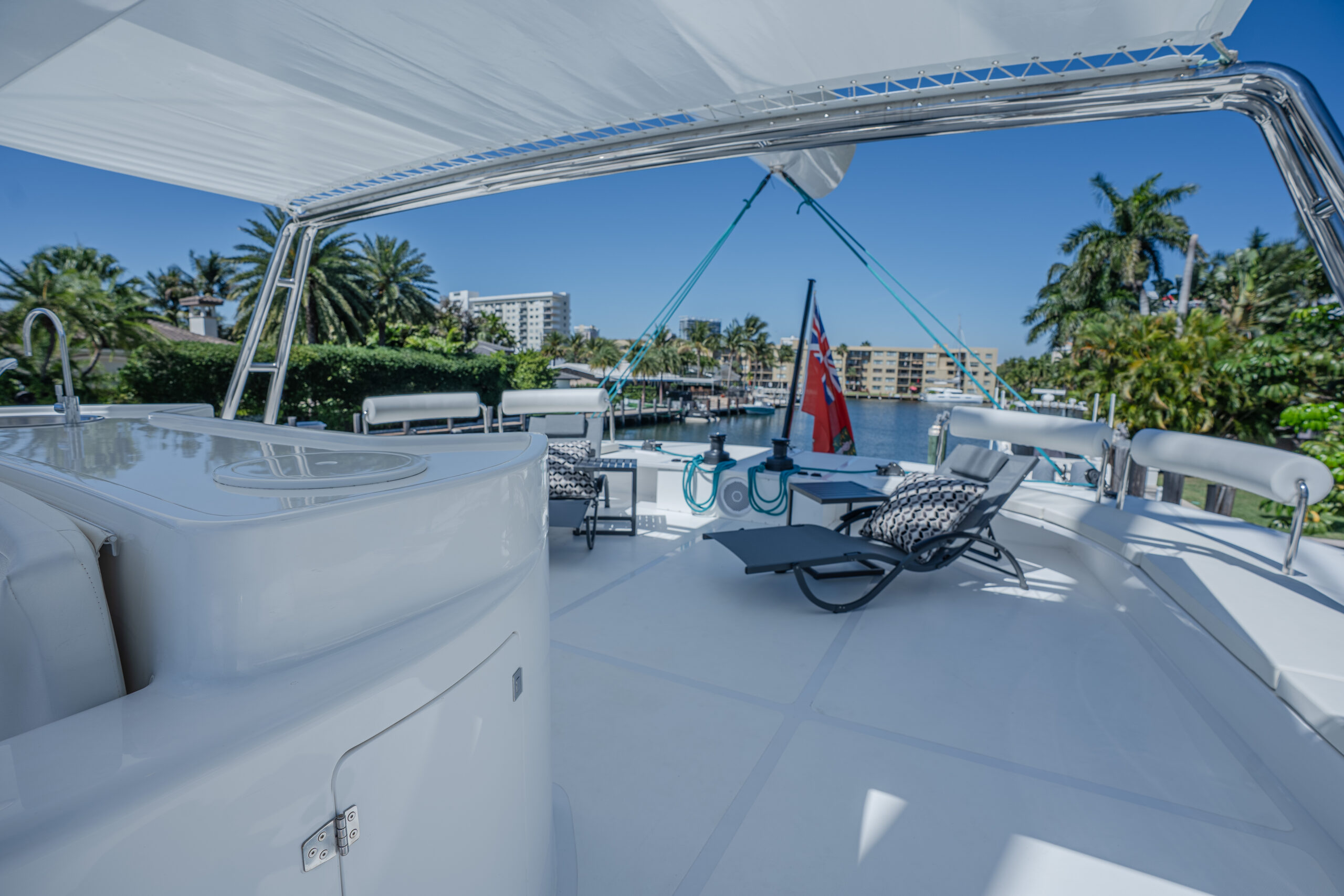

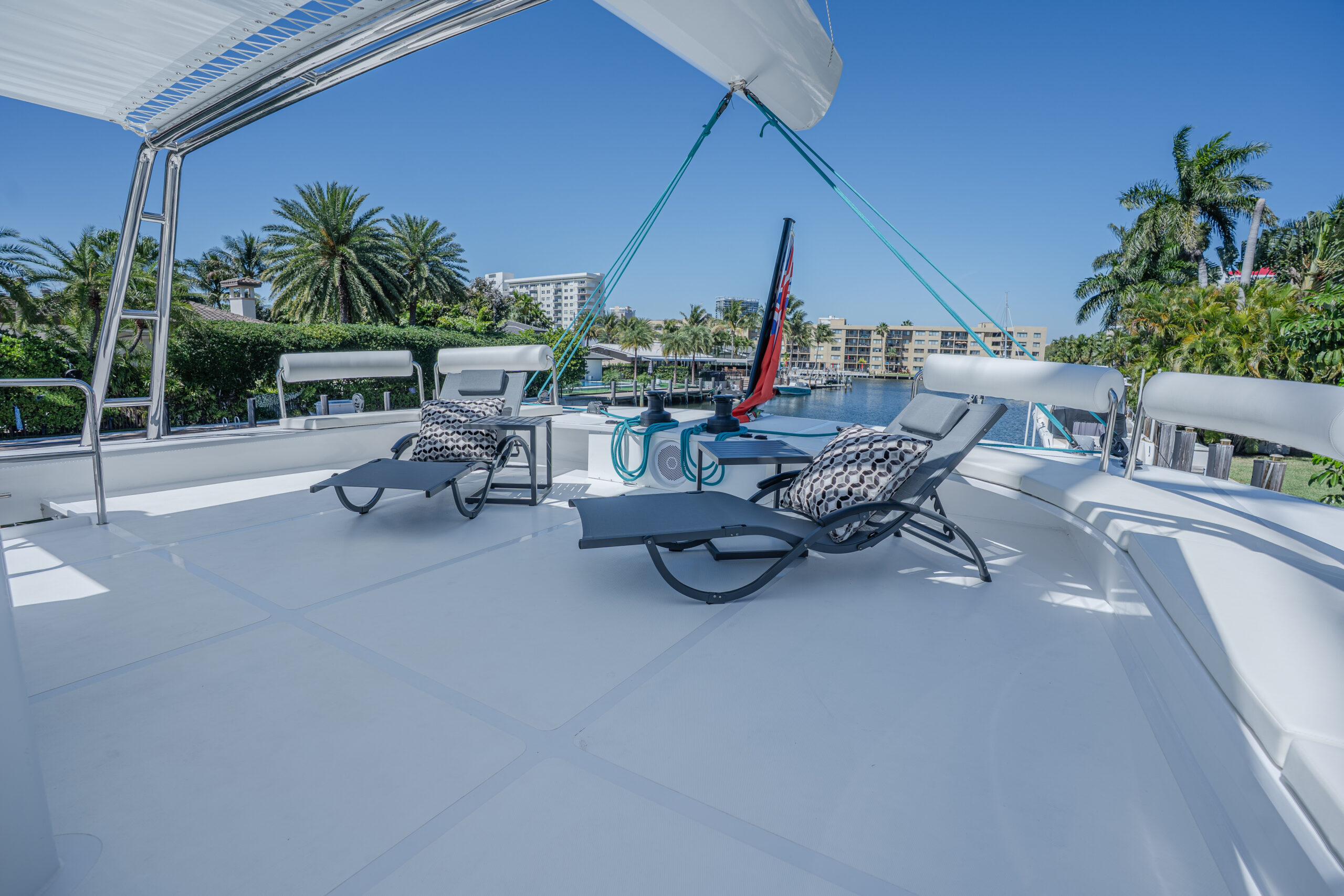

A standout feature of the Silhouette 80 is the large, open flybridge, which centralizes all sailing operations, ensuring safety and reducing crew requirements. The yacht also features an electronically operated dive platform that extends off the aft deck, which can be used as a tender lift, lounging area, or swimming platform at the push of a button.
Unmatched Luxury, Performance, and Versatility
The 2023 Matrix Yachts Silhouette 80 offers a combination of unmatched luxury, performance, and versatility, making it a top contender in the mega yacht category. Whether you're looking for the ultimate cruising experience or a vessel that combines elegance with functionality, the Silhouette 80 Sail Catamaran is in a class of its own.
01/52
Construction
The 2023 Matrix Yachts Silhouette 80 Sail Catamaran features a primary structure constructed using Epoxy GRP sandwich technology throughout. The core consists of high-density, closed-cell PVC foam that has been thermo-formed to reduce weight and eliminate square-cut edges, preventing moisture migration. All composite laminates utilize epoxy resin, are vacuum-consolidated, and undergo post-curing for enhanced strength.
Key Features:
Quality Assurance: Fiberglass reinforcement and epoxy resin used in construction comply with ISO 9002 or higher quality control standards.
Material Use: Epoxy resin is applied to all structural components, while polyester resin is used in non-structural areas.
Reinforcement: Stitched E-glass engineered fabrics are used throughout, with carbon reinforcement in specific areas.
Core Materials:
Thermo-formed rigid closed-cell PVC foam is used in the hull, decks, floors, and bulkheads.
Polyethylene honeycomb is utilized in the bridge deck and flybridge floor.
Marine plywood is incorporated in high-stress areas.
Bulkheads: Resin-infused for precision and durability.
Laminates: Vacuum-consolidated for optimal strength and integrity.
Core-to-Laminate Bonding: All core materials are securely bonded to cured laminates.
Dimensions
Length Overall (L.O.A.):
78.75 feet
(23.98 meters)
Beam (molded):
36.00 feet
(10.97 meters)
Draft (loaded):
5.58 feet
( 1.07 meters)
Genoa: Code O with profurl furler
Tonnage: 75 gross
Machinery
Experience unparalleled control and precision aboard the 2023 Matrix Yachts Silhouette 80 Sail Catamaran, equipped with an advanced steering system designed for seamless navigation. Engineered for optimal performance, this system delivers a smooth, responsive sailing experience. Whether you're at the helm or entrusting the vessel to your crew, the Skye’s steering system ensures reliability and effortless maneuverability, empowering you to navigate the open seas with confidence and ease.
Main Engines
Engine Type: (2) Volvo D3-200 Diesel @ 200 Hp each
Gearboxes for Main Engines: (2) ZF 63A gearbox, ratio 2.71
Other:
Exhaust system, Racor fuel filters, and raw water strainers
Volvo 7" glass cockpit engine instrument panel
(2) Stainless steel 50mm propeller shafts
(2) The propeller shaft is supported by P brackets with cutlass bearings
(2) 19 kW Onan super silent low reving Gensets in sound enclosures
AC & DC Distribution boards
(2) Marinco 220v shore power plugs, stainless steel
(2) Shore power cable, 15m (50ft)
Galvanic isolator
Genset/shore power change over switch
Victron inverter 24/5000 / 120 - 220V
Victron Skyllar charger 24/100
House bank (5) 200 Amp Hr Victon Li-Fe batteries 24v
Start battery – (2) 75 amp batteries (2no)
Victron Orion DC/DC converter 30amp (4no)
500-amp fuse (1no)
Shore Power: To enable the yacht to draw high power it can accept three-phase shore power as the majority of superyachts do
Batteries:
1000 Ah at 24V of Victron Lithium batteries
Inverter & Charger – For ease of maintenance, the yacht has been fitted with a standalone Victron 5kW Phoenix Inverter and a Victron Skylla TG 50A 3-phase battery charger
Air Conditioning
Type:
AquaAir Reverse Cycle two-stage
120,000 BTU multi-compressor marine chilled water system with individual cabin air handlers and remote controls in every cabin and saloon
Other Machinery
Watermakers:
Sea Recovery Water Maker 221LPH
Drinking water softeners and faucets on the Flybridge cockpit, and galley
Rudders are interlinked and connected to the steering wheel and aluminum steering quadrants with a stainless steel chain and wire
Sewage System:
(6) Headhunter Royal flush electric toilets
(1) Jabsco quiet flush electric crew toilet
Fresh Water System: Tanks coated with food-grade epoxy
Black Water System:
(2) Zenit draga 2M
1,004 US Gallons
3,800 liters
Grey Water System:
(2) Johnson Viking power 24v
552 US Gallons / 2,090 liters
Bilge Water Filtration: (6) Rulemate 1100 bilge pump
Electronics
Wherever possible, the 2023 Matrix Yachts Silhouette 80 Sail Catamaran is equipped with state-of-the-art Raymarine instrumentation. This includes two large touchscreen Axiom Pro MFDs, p70 instruments, and an Evolution Autopilot, allowing the operator to customize the displays to show their preferred data.
To enhance situational awareness, the yacht features a FLIR M232 thermal camera with pan and tilt night vision capabilities. Additionally, the vessel is equipped with advanced Doppler radar technology, commonly used by meteorologists, offering superior data quality compared to standard radar systems.
Communication Systems
VHF: Raymarine Ray53
Horn: Trumpet horn dual
Navigation Systems
Radar: Raymarine Quantum Doppler 24nm
Compass: Offshore 135 binnacle compass
Auto Pilot:
Raymarine p70 evolution & colour display
Jefa autopilot rotary drive unit
Echopilot forward facing 3D sonar with 2'x5" transducers
GPS: Raymarine
Weather FAX:La Crosse Weather Station

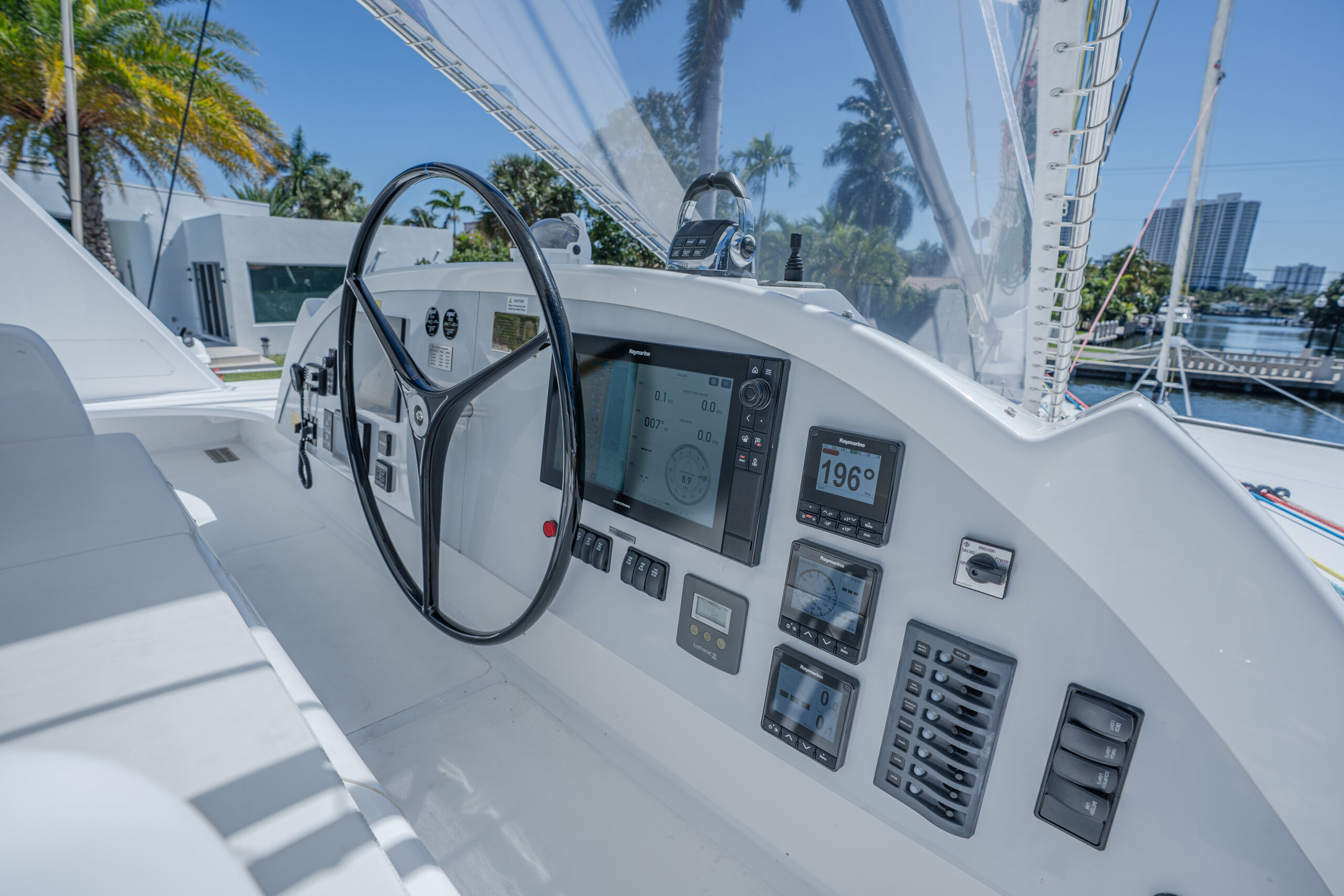

Chart Plotter:
Raymarine Axiom Pro16 RVX MFD with keypad
Raymarine Axiom 16XL MFD multifunction display
Wind/Speed Log: (2) i70 wind multifunction color display
Other: Raymarine thermal camera
Entertainment System:
Video Equipment

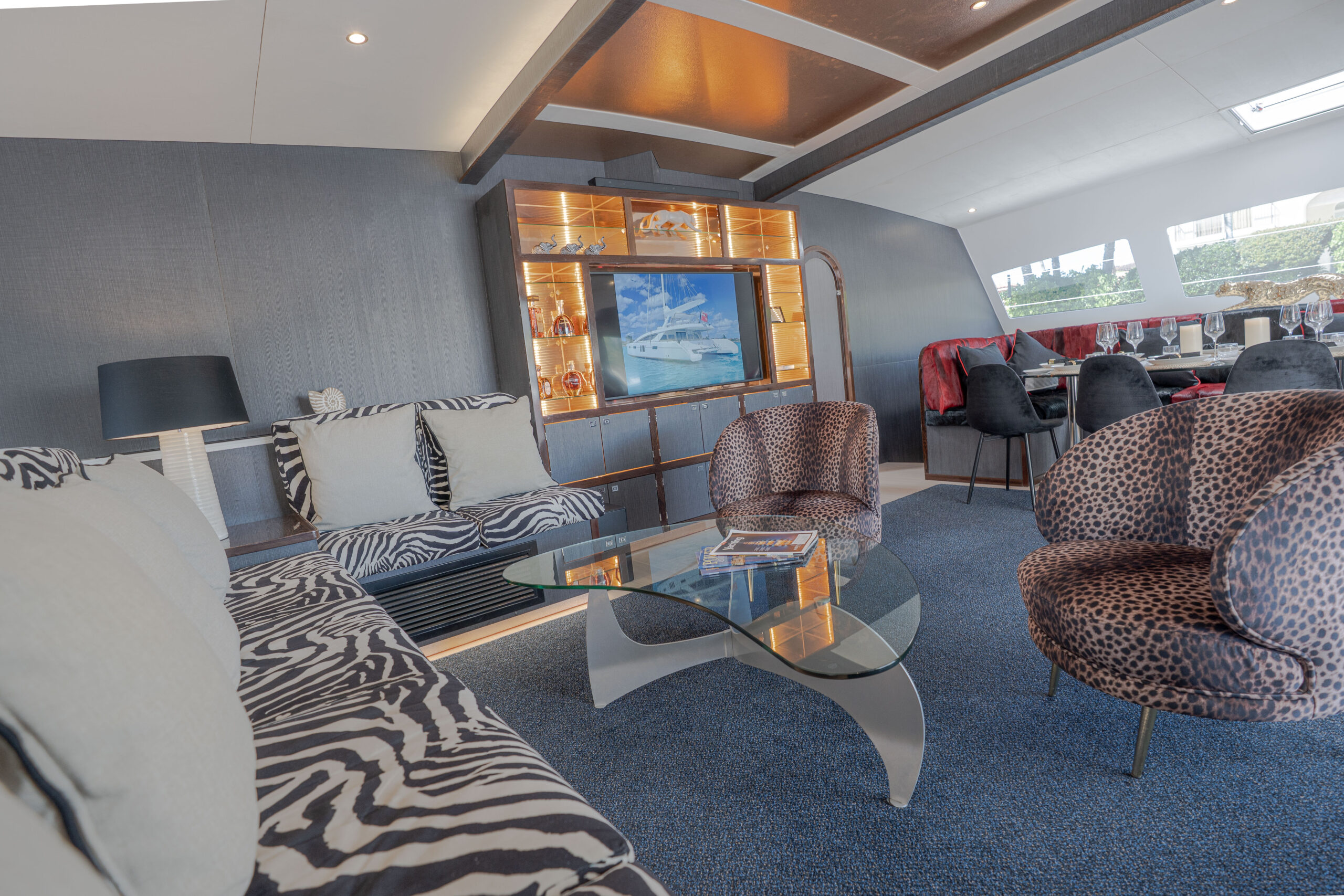

55” Samsung LED with sound bar (salon)
40” Samsung LED with sound bar (master)
Audio Equipment
Fusion Apollo True Marine media player and Fusion marine amplifier
Waterproof marine speakers 7” 260W (pair) and 10” Subwoofer

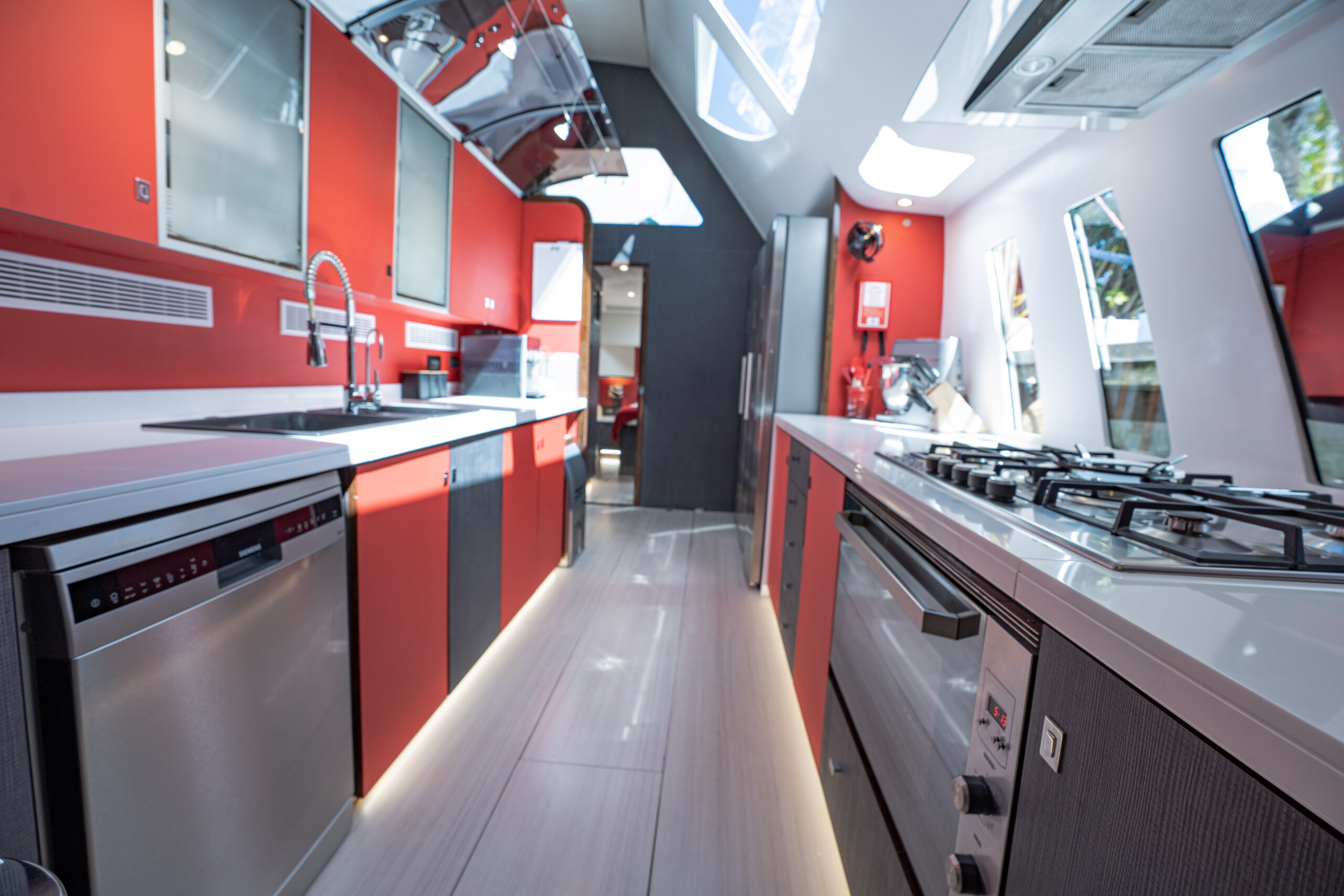

Galley and Crew Quarters
Main Galley Equipment
Cooking Equipment: Elba gas hob five burner cooktop
(2) Stainless steel folding swimming ladder in locker on transoms
Stainless steel grab handles to transom
(2) Hot and cold transom shower
(6) LED transom courtesy lighting

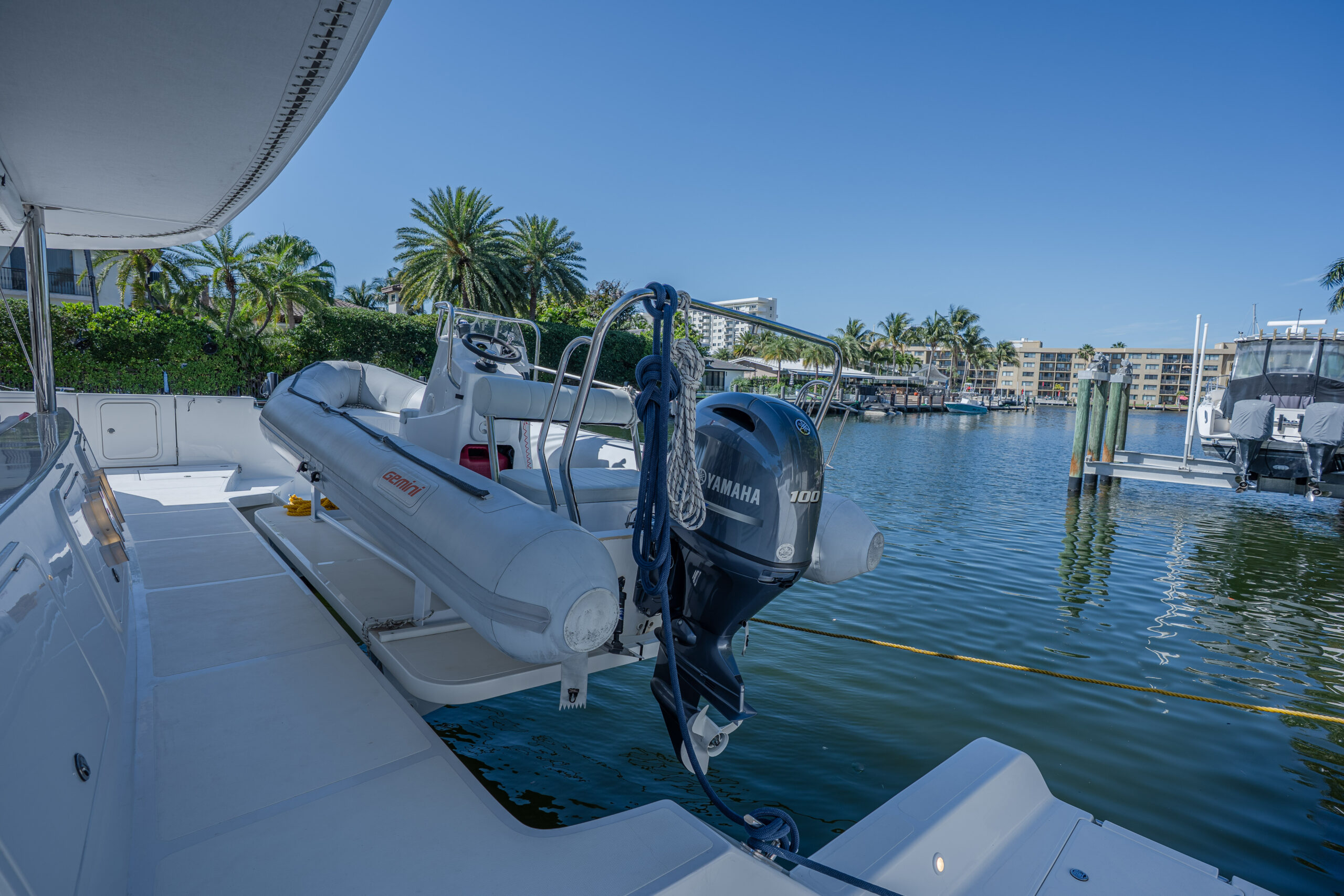

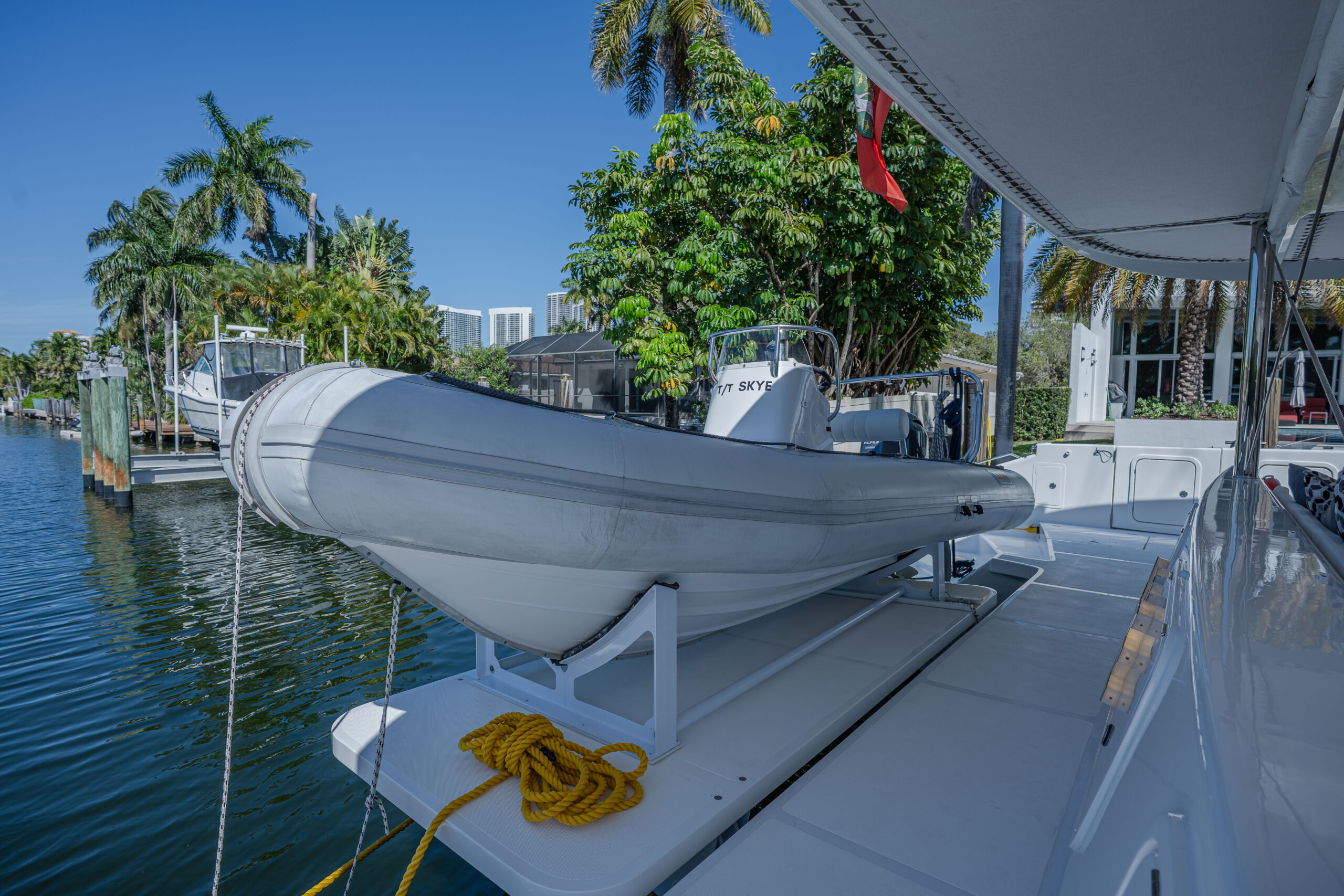

Electric lifting platform for tender
Emergency quick access for swimmers onto transom
Anodized aluminum toe rail
SS lifelines with 710mm high polished SS stanchions
Mooring cleats - 330mm, SS (10x).
Water, waste & diesel deck fittings (2 of each)

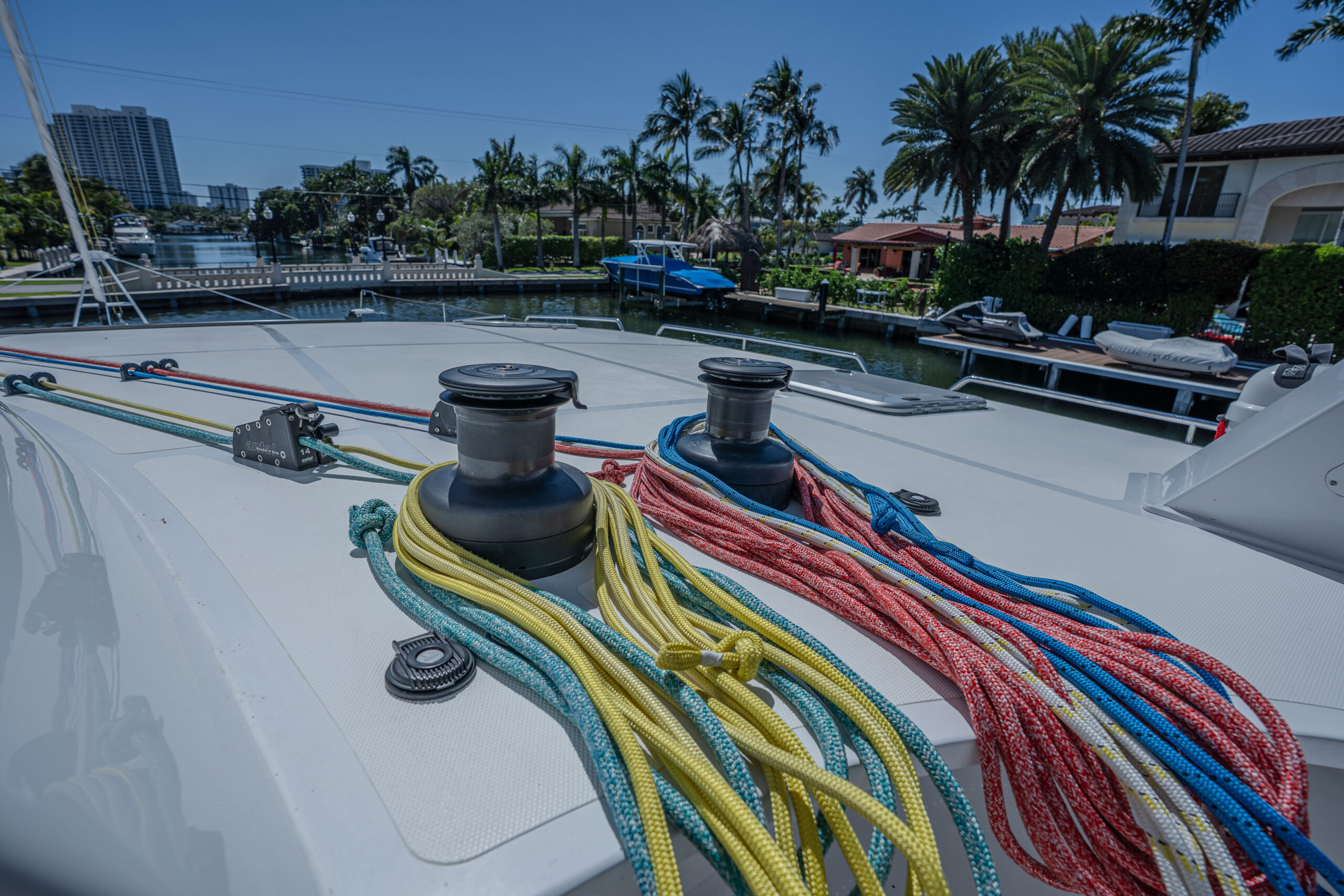

Main sail halyard winch - electric size 66
Antal ST XT52 electric winch (3x)
Antal ST XT62 electric winch (1x)
Antal XT52 2 speed winch (1x)
Winch handle (2x)
Antal jib track system (Maxi 47)
Jammers for main halyard, genoa sheet & furling line
Sheets - Mainsail, Genoa, Code 0 and Spinnaker
Furling lines for Genoa traveler and Code O
Bow prod line 10mm Dyneema
Features:
Elevate the Aesthetics: Molded GRP surfaces boast a flawless high-gloss gel coat
Artistry in Fairing: GRP surfaces are meticulously sprayed with a premium, high-quality paint
Traction Redefined: Decks featuring a patterned molded nonskid gel coat finish, ensuring a secure footing
Submersible Brilliance: Below the waterline, vessels are protected by two coats of antifouling paint, ensuring durability and performance that stand the test of time.
UV Shield Technology: Laminated glass window panes; they feature an integral fused black ceramic band, safeguarding the sealant against the harsh effects of UV rays.

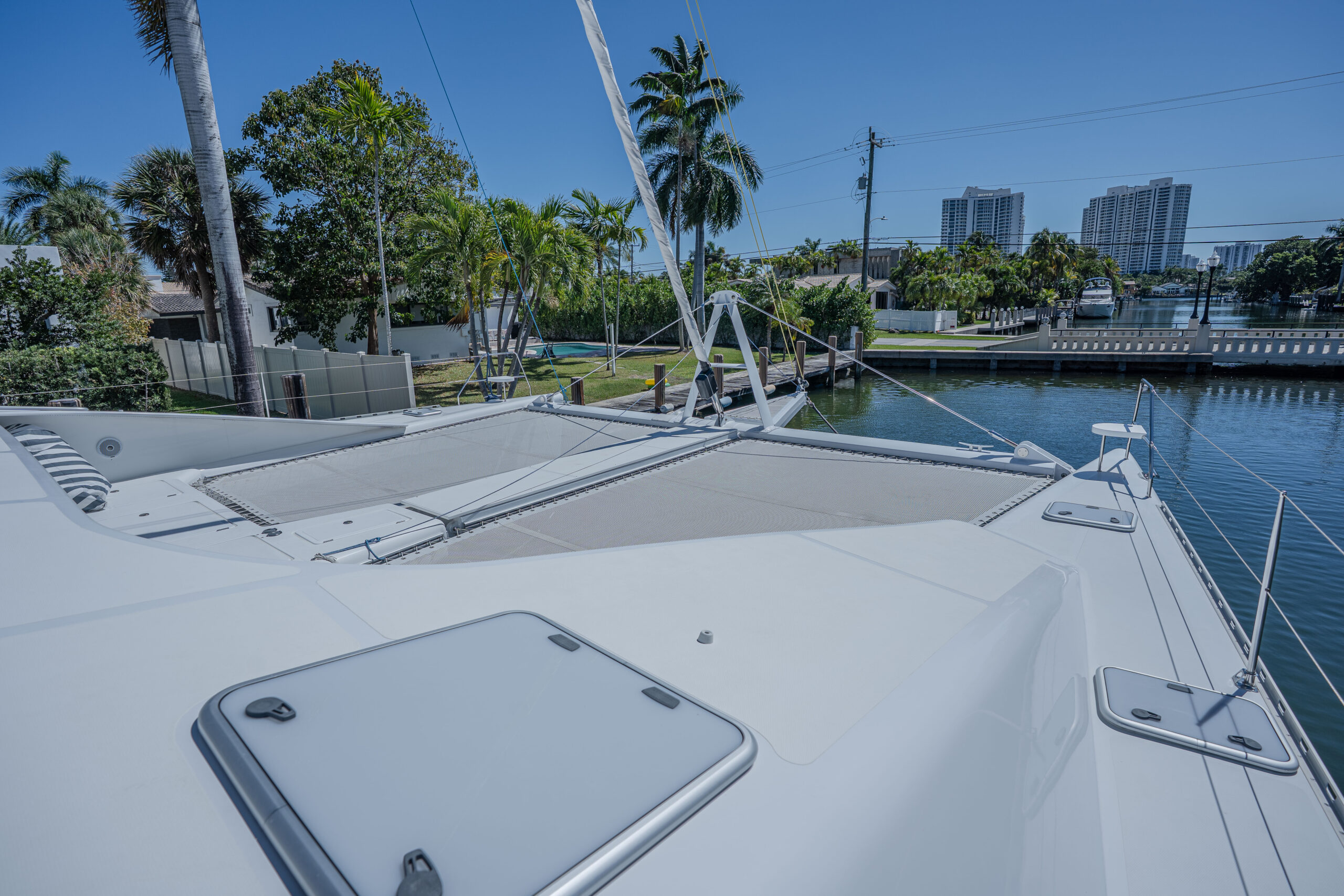

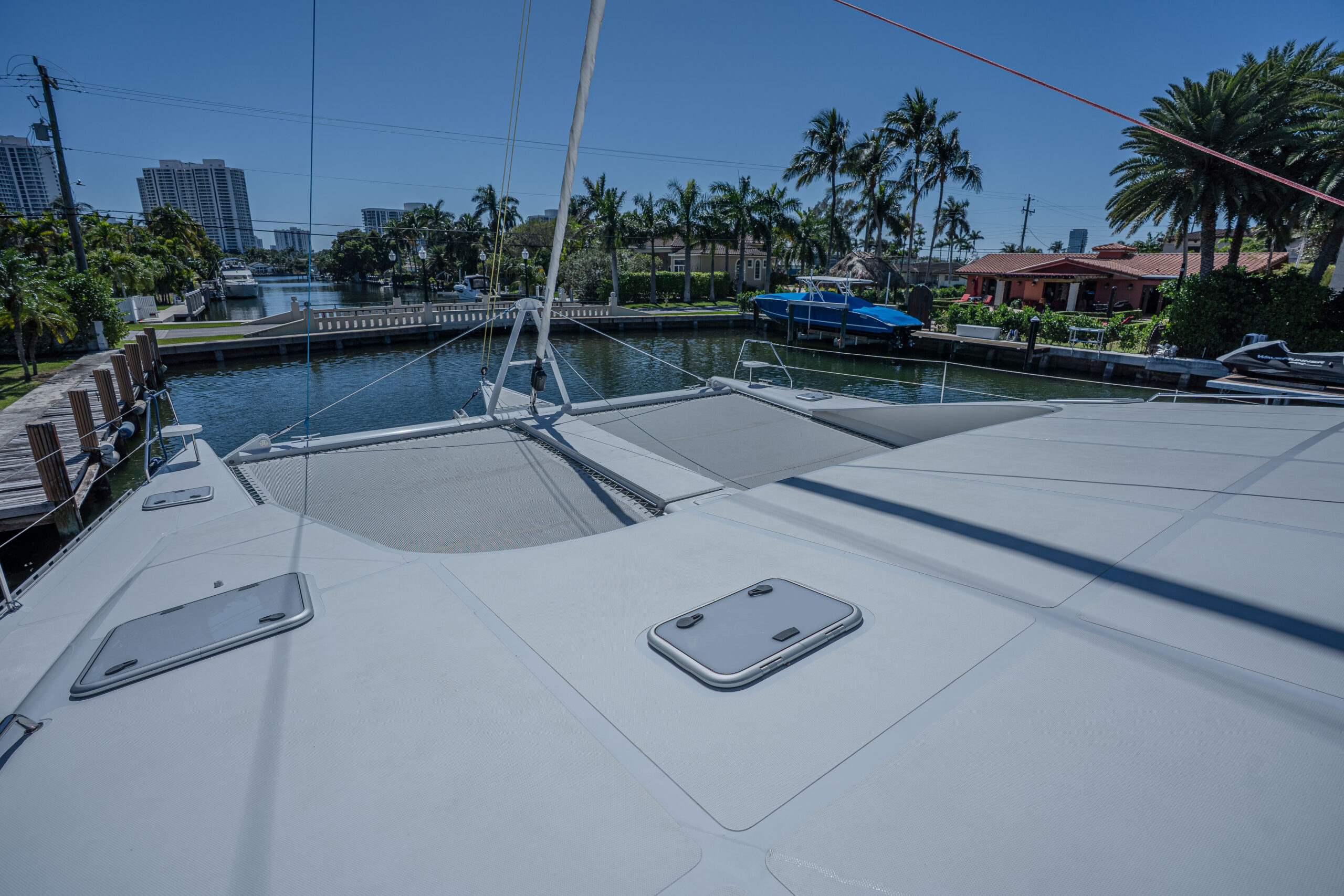

Visionary Hatches: Deck hatches with tinted or opaque lenses, combining functionality with a touch of mystique, creating an ambiance of luxury and exclusivity.
Polished Precision: Custom stainless steel fittings boast a bright polished finish, adding a touch of refinement to every aspect of the vessel.
Mast, Sails, and Rigging
Mainsail (179 sqm): Ullman SA Endurance Crosscut Dacron fully battened main sail
Furling Jib (101 sqm): Ullman SA Endurance Crosscut Dacron, UV cover on leech and foot.
Code 0 (270 sqm): 2.2 oz Nylon Rip-stop, UV cover on leech and foot
Carbon fibre mast (28.5 m) with spreaders, jammers, cleats, mast steps, mast head light, deck light, steaming light, and spreader lights
Safety Equipment
Fire Fighting Equipment
Fire Extinguishers:
(10) 1.5L
(2) 4.5kg
(2) Self-activating fire extinguisher in engine rooms
Other:
Fire blanket
(14) Smoke & Co2 detectors
Safety Equipment
Life Rafts: (2) Viking 8UKL rescue liferaft
Life Rings:
Lifebouy ring, Danbouy & Lifelink throwing line
Lifebouy ring with MOB light
EPIRBS: Ocean Signal EPIRB1 rescue me
Flares:
(6) Flares- handheld
(4) parachute
(2) smoke
Medical Equipment: Annexure 3 under 200 tons
Other:
(12) Water grab bag with thermal blankets
Emergency nav lights
Fog & Air horn
Emergency VHF aerial
Solas 2 signal card & bungs
Solas folding life jacket (10) adult (4) child
(4) Sigma inflatable lifejacket with harness line
(6) Lalizas safety harness with Dring
Telescopic boat hook
(2) Anchor ball and (1) cone
Flags C, N, Q, V, and W
Sail sewing repair kit
(2) Fire buckets
Accomodations

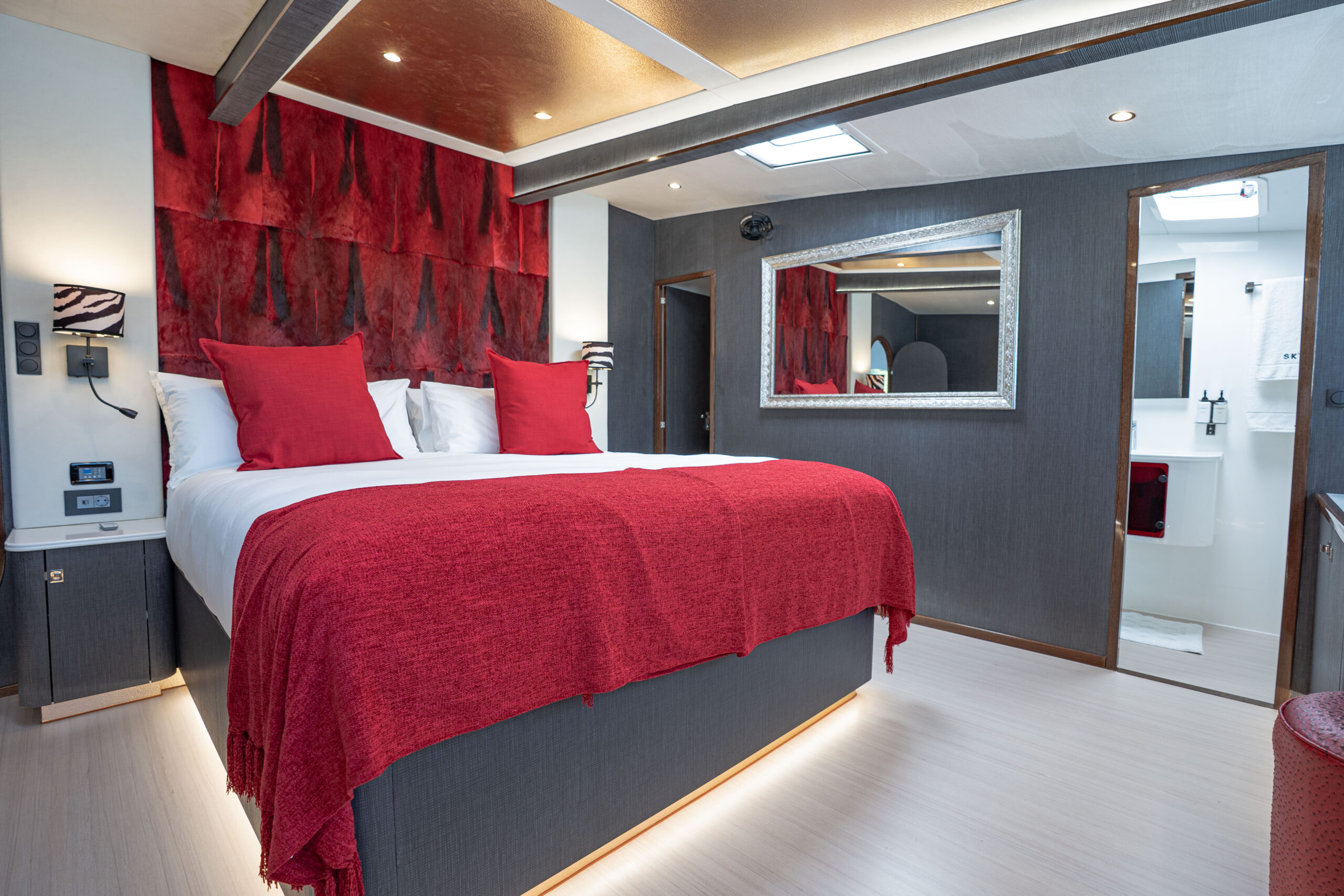

OWNER

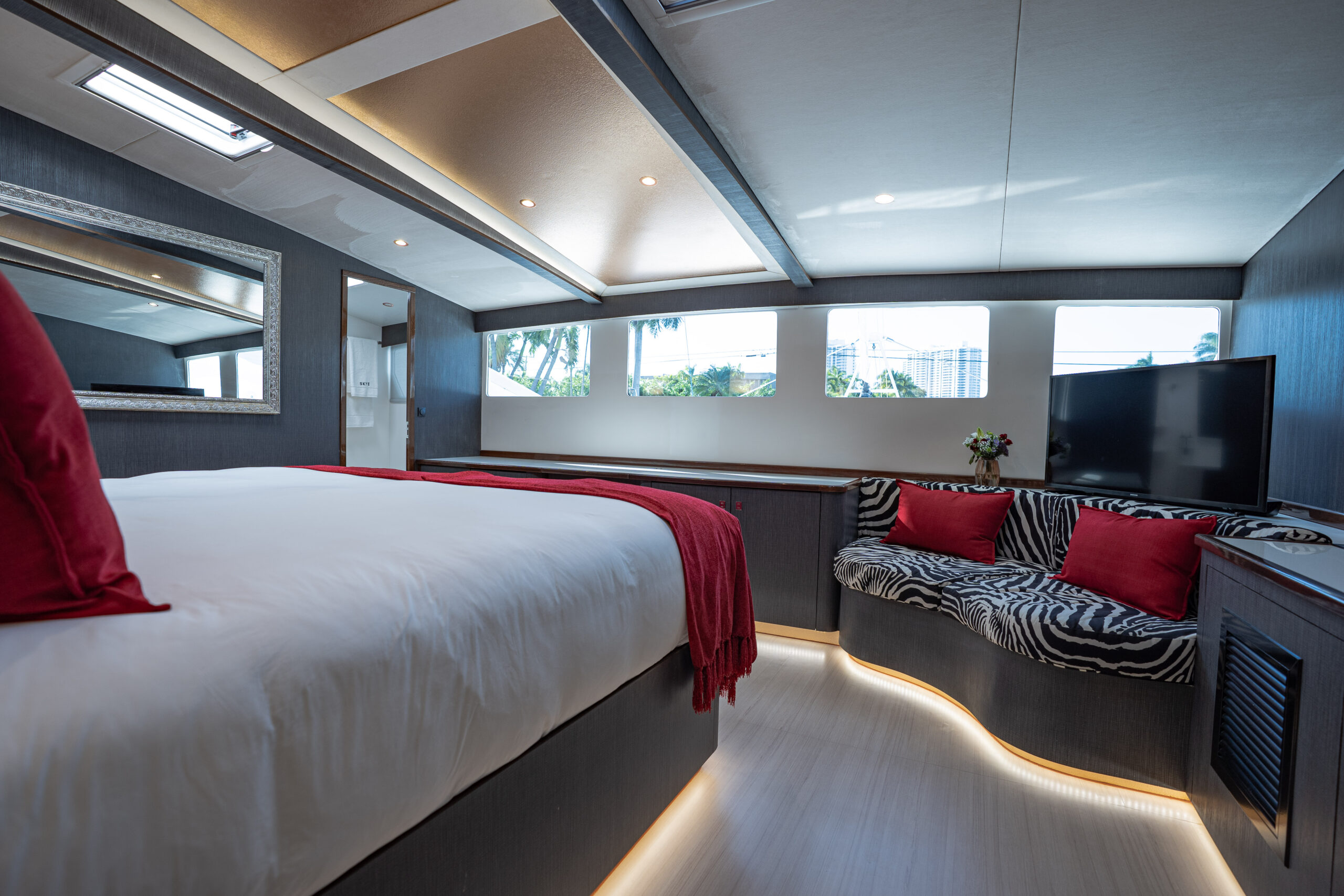

The expansive owner's suite on the main deck is a masterpiece of design, offering panoramic views and luxurious amenities.
Key Features:
King-Size Bed: With an upholstered headboard for added comfort
Convenience: Remote-controlled roller blinds for effortless light control
Storage & Ambiance: Bedside tables with lamps, a walk-in closet, and ample cupboards
Seating & Work Space: An upholstered lounge settee, vanity dressing table, and ottoman
Entertainment: A 138 cm UHD TV for ultimate viewing pleasure

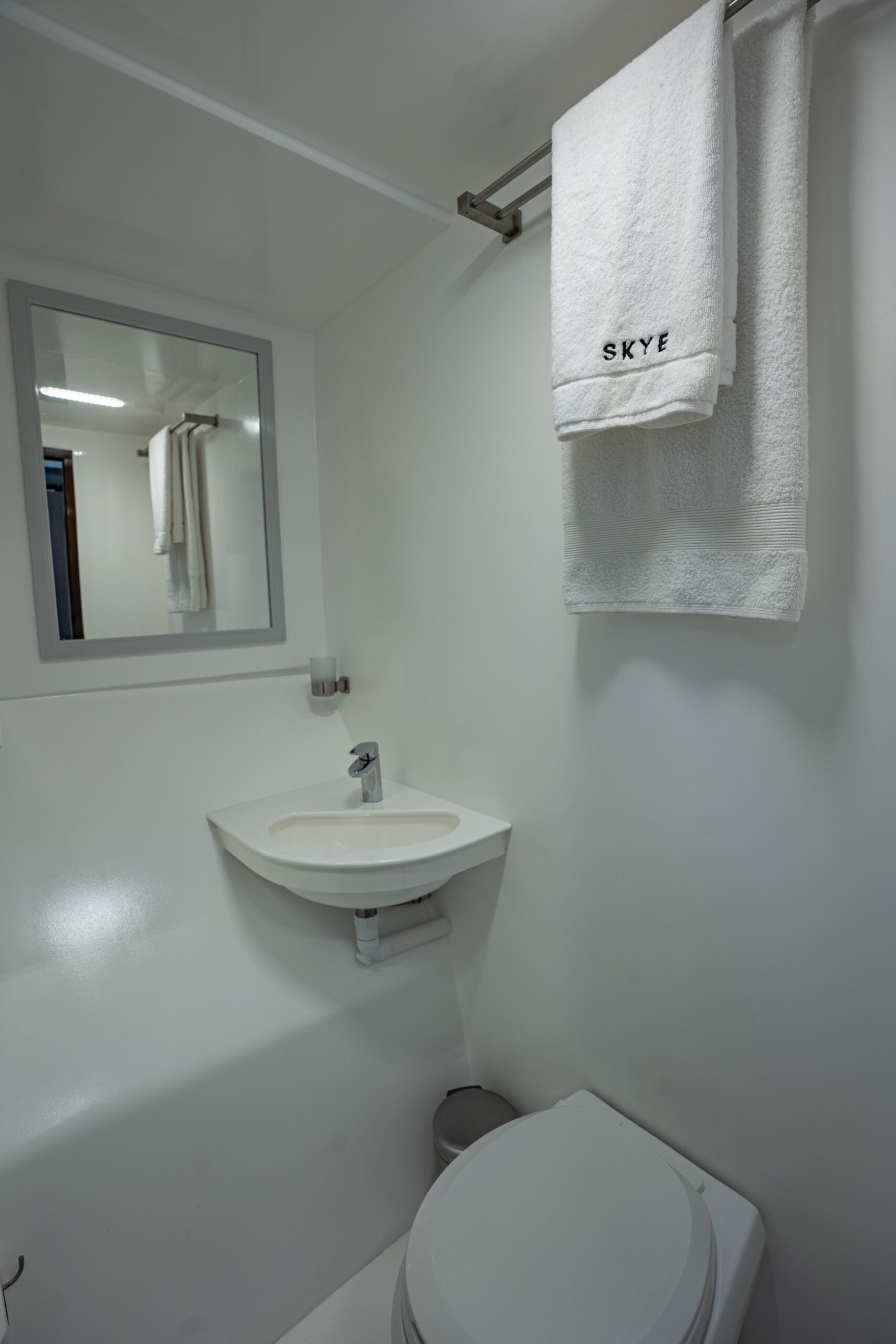

En-Suite Bathroom:
Frameless glass shower for a modern touch
Solid surface countertop with a wash basin
Vanity cupboard and ceramic-tiled flooring for durability and style

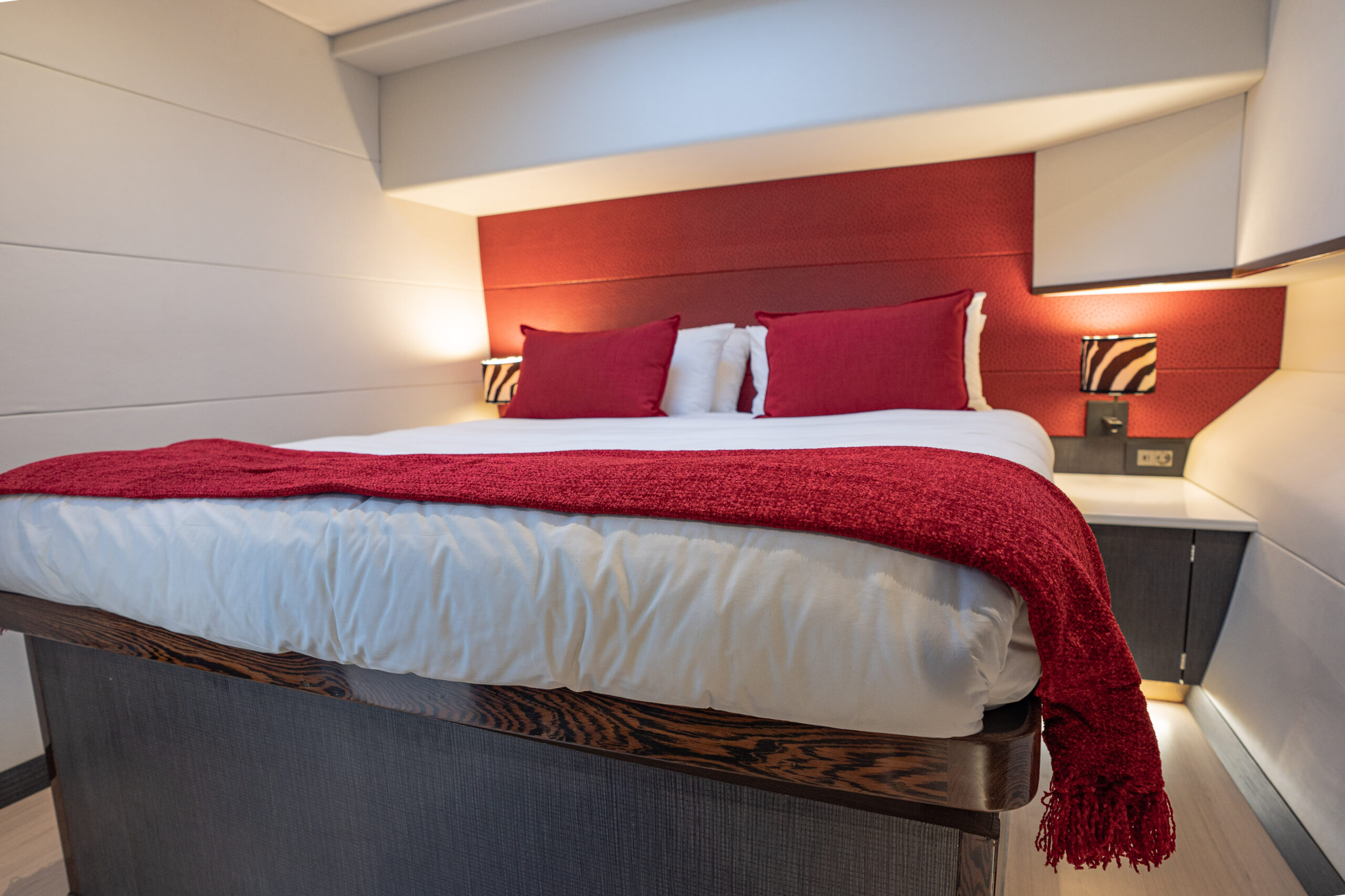

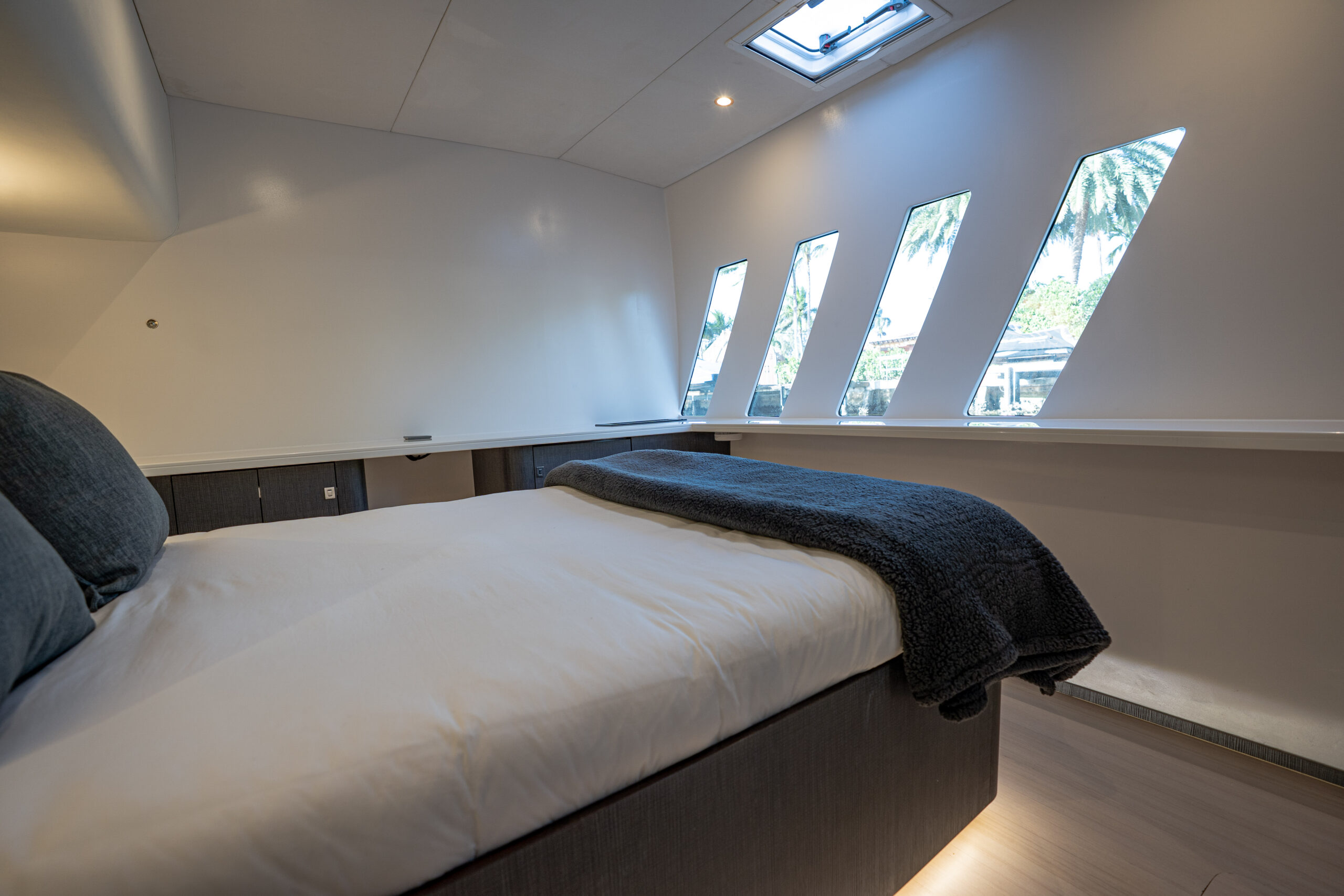

GUESTS (4)

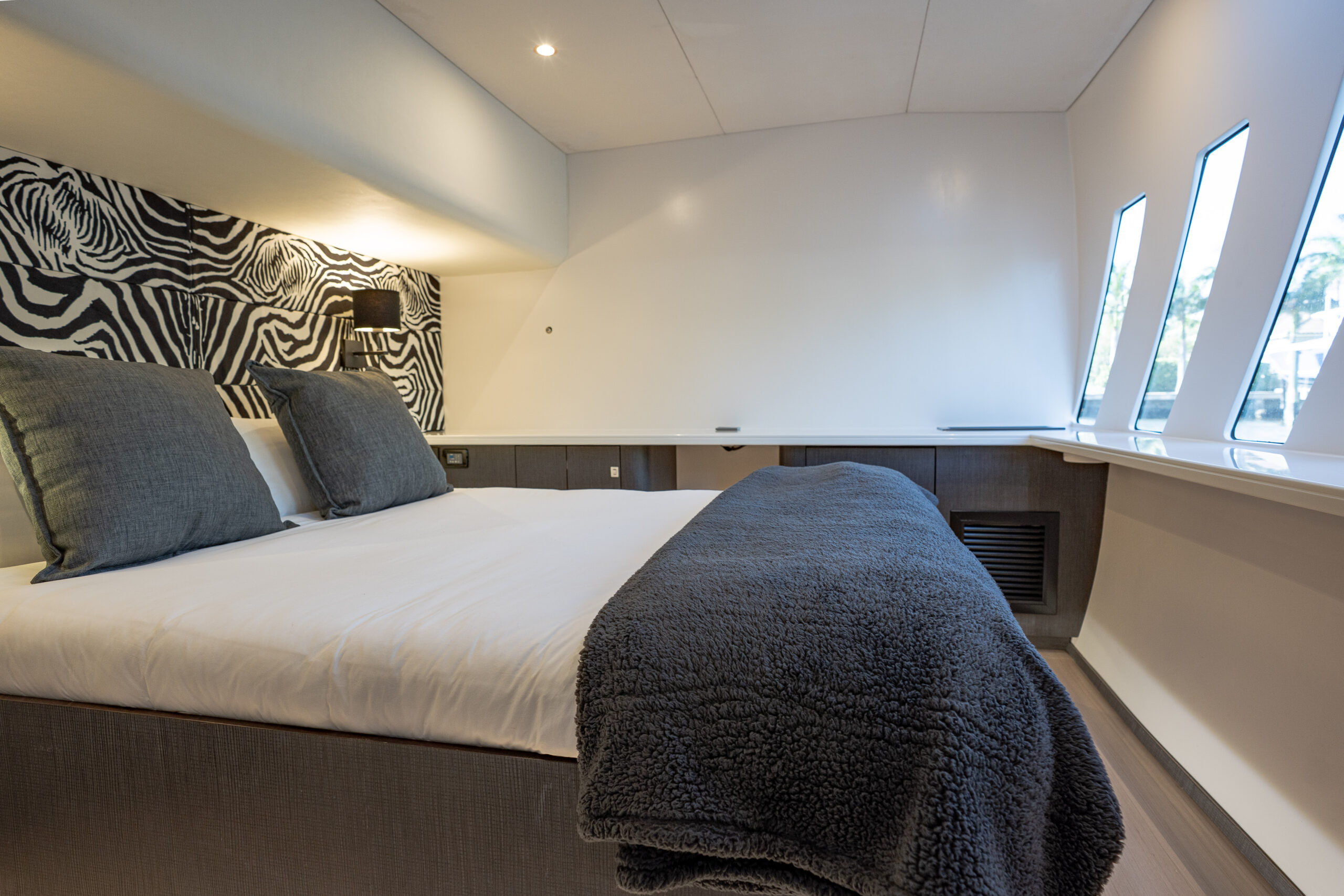

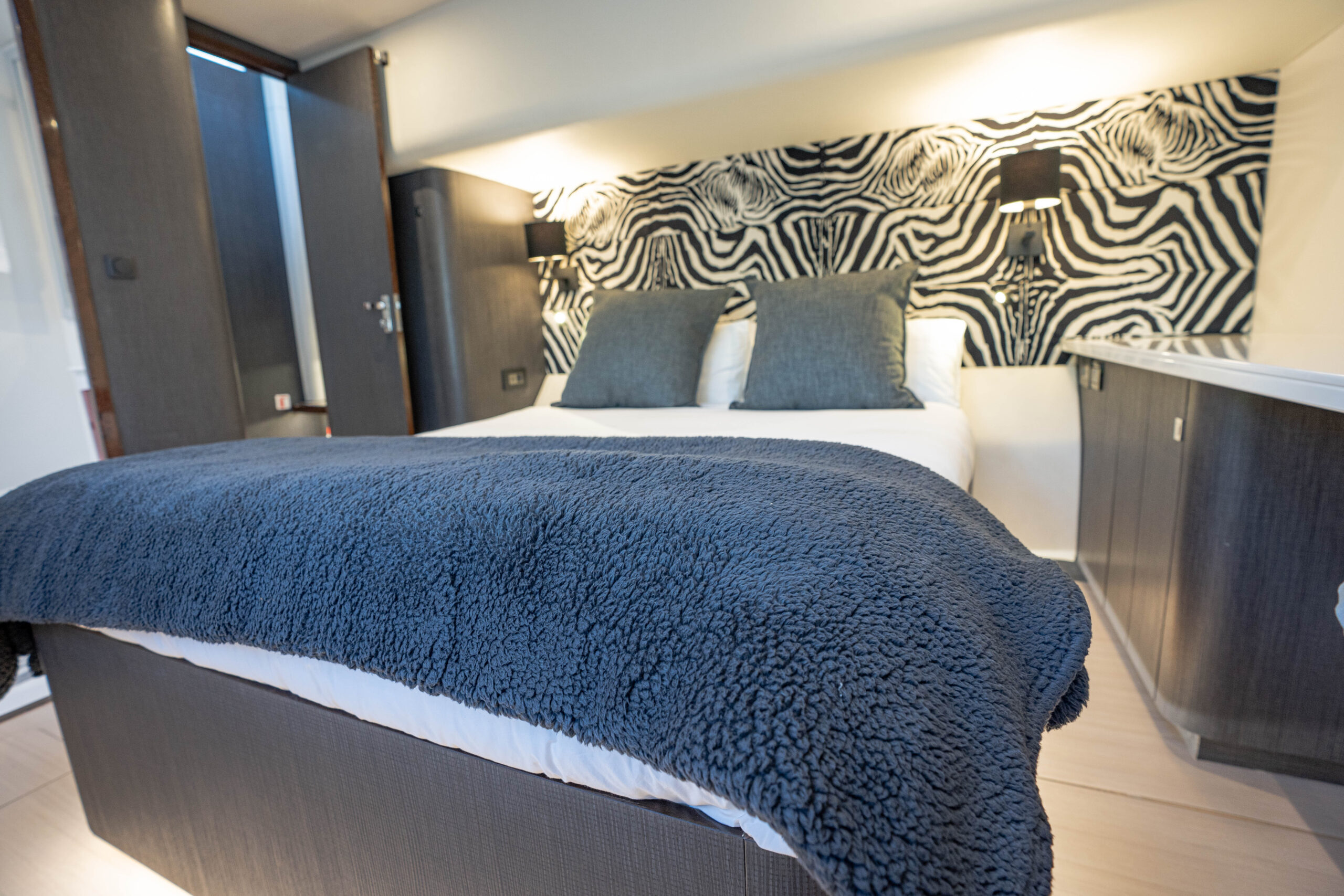

Each cabin features a queen-size bed, private en-suite bathroom, and refined amenities, ensuring an exceptional experience. Panoramic windows provide stunning sea views, making every moment unforgettable.
Key Features:
(4) Queen-Size Bed: (1500 x 1900 mm) for restful sleep
Storage: Clothes hanging cupboard for convenience
Ambiance: Bedside tables with lamps for a cozy atmosphere
En-Suite Bathrooms: Hot and cold water, frameless glass shower enclosures, and solid surface countertops for a sleek finish
CREW
Captain’s Cabin:

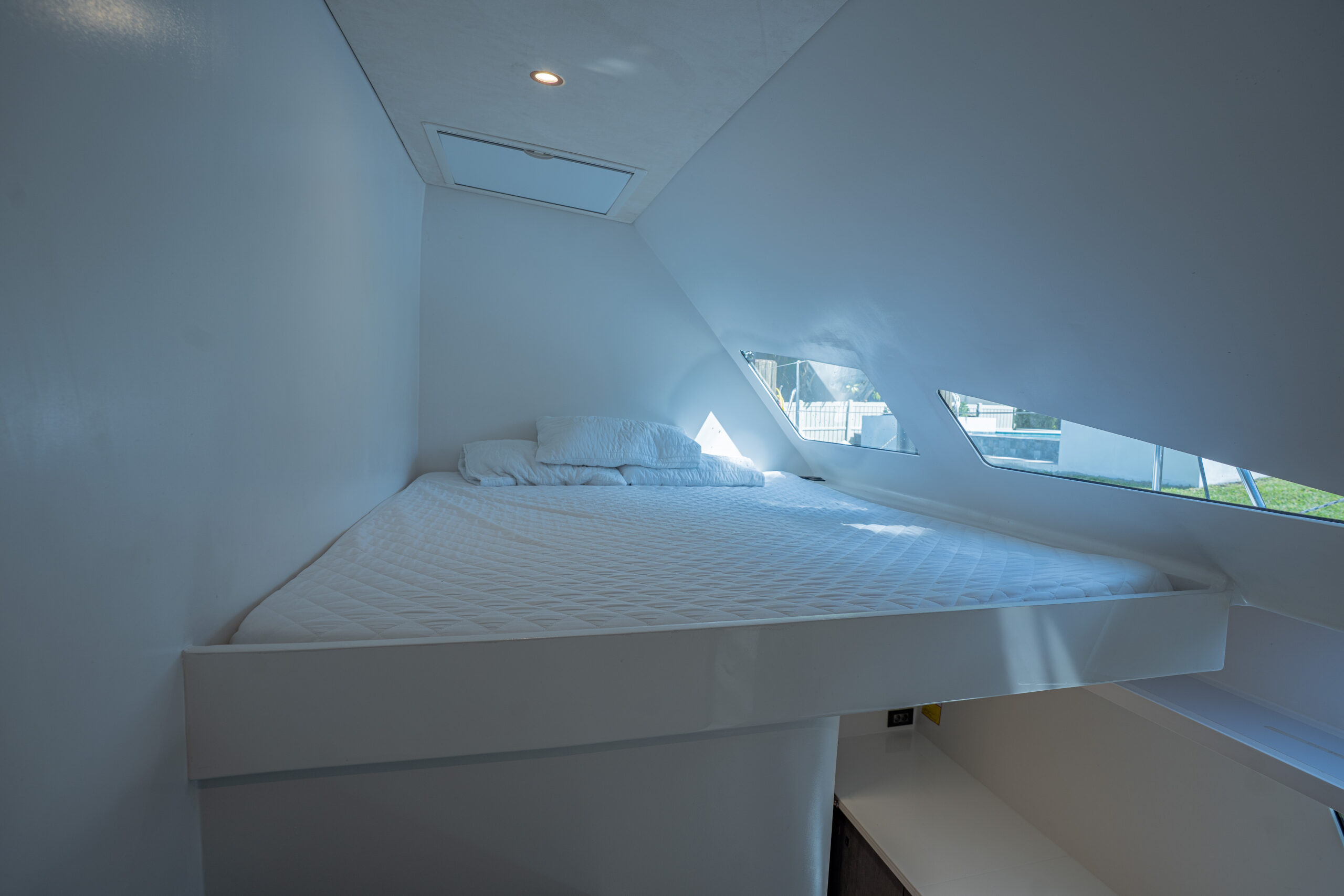

(1) Queen-Size Loft Bed: (1430 x 1900 mm) for comfort and space-saving design

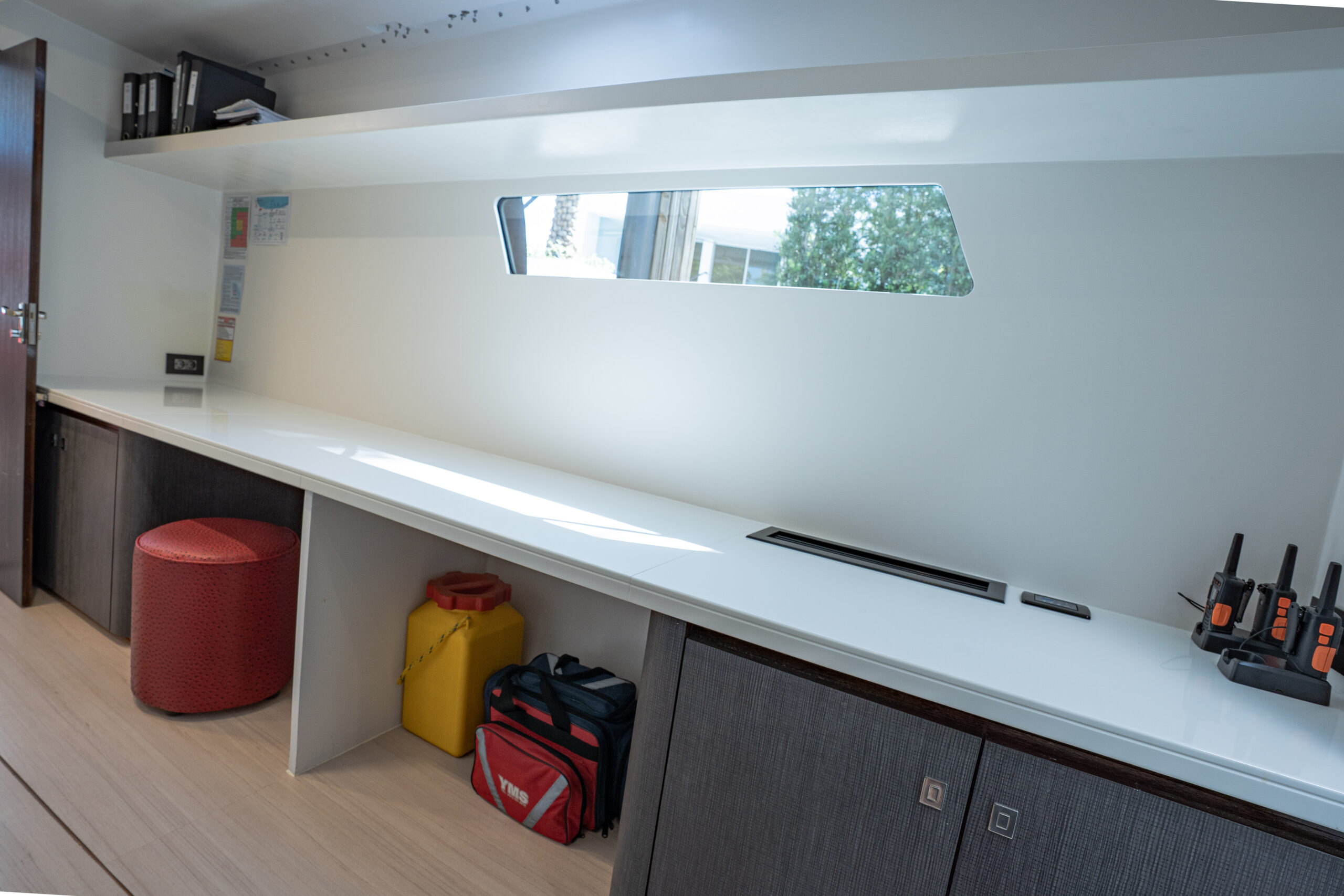

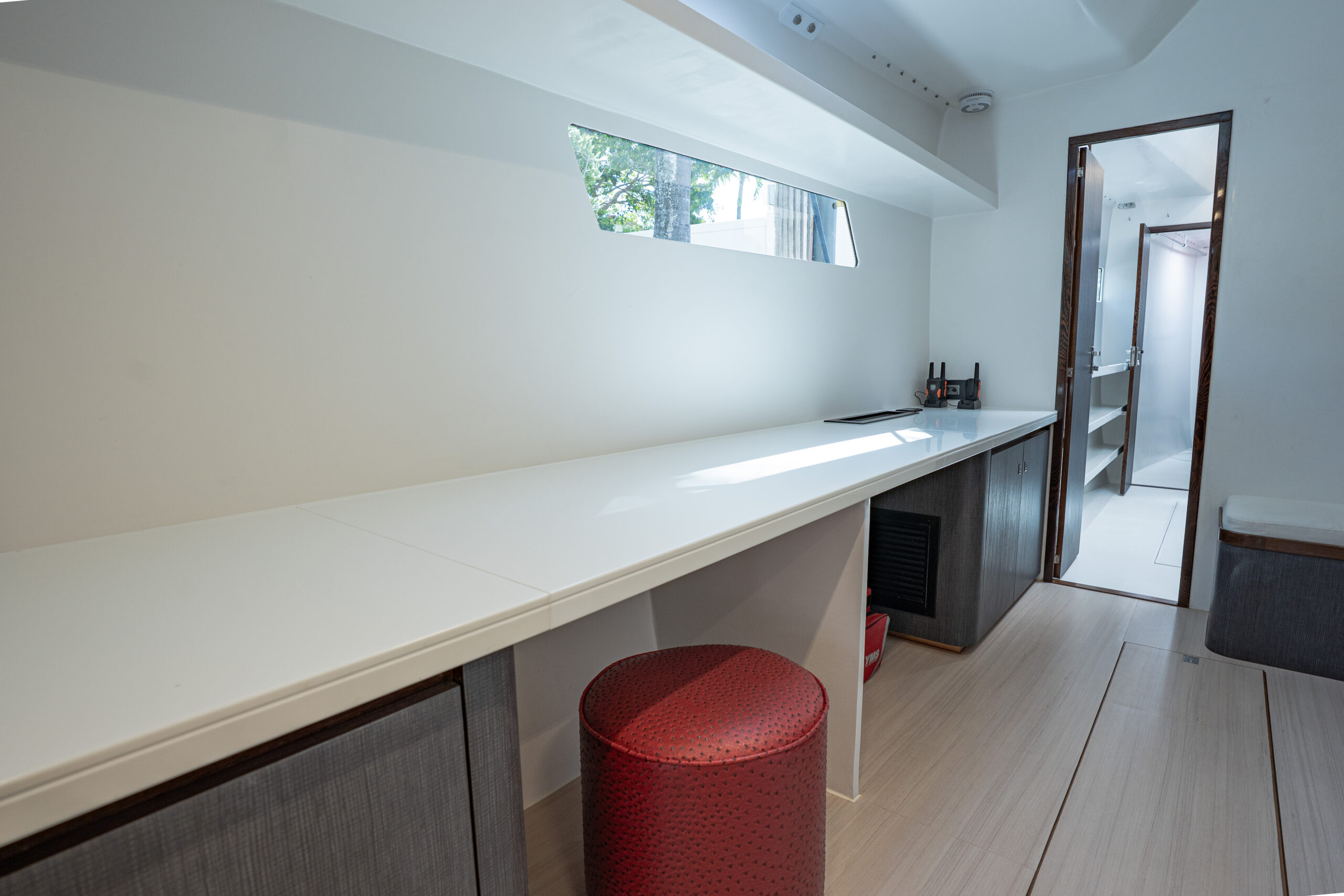

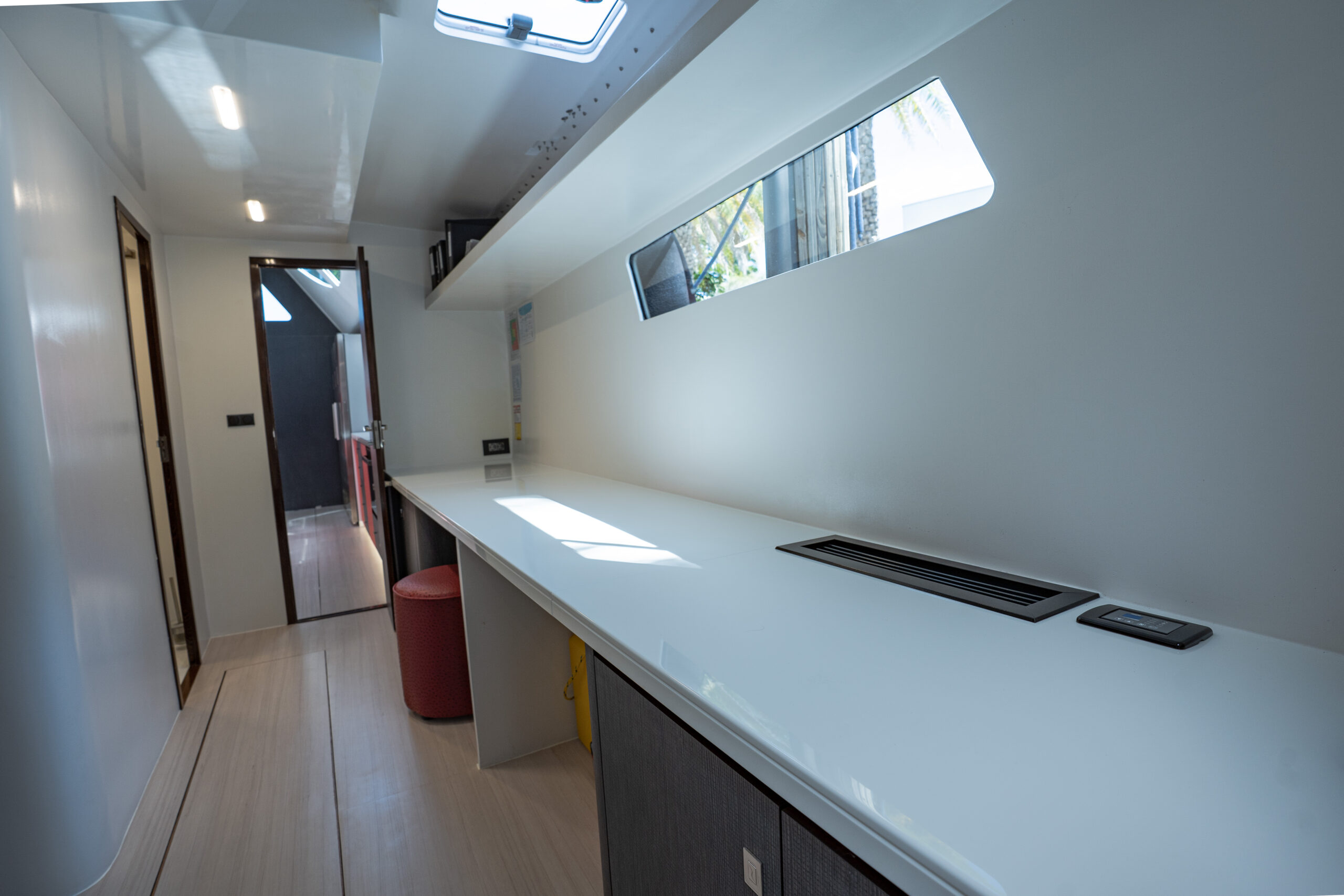

Office Area: Desk with storage cupboards and a filing shelf
En-Suite Bathroom: Separate frameless shower doors and a solid surface countertop with a wash basin and cupboard
Crew Cabin:
(1) Queen-Size Bed: (1500 x 1900 mm)
(2) Single Beds: (800 x 1900 mm) – Single beds for flexible accommodation
En-Suite Bathroom: Solid surface wash basin, salon mixer, hanging, and storage cupboards
