71' Sunreef 2022

Better than new 2022 Sunreef 70 Sail (by far best sailing Sunreef model) with nearly all additional options that shipyard has to offer available now.

With so many improvements (including ones never before offered by the shipyard) over the standard specification it is safe to say that she is the best-equipped Sunreef 70 ever built and by far the finest example on the market today.

With 287sqm (3,089sqft) of light, bright living space including a huge flybridge with lounge, dining and BBQ and more open-air dining on the main deck aft, she makes the very most of her 115GT volume.

The large hydraulic swim platform has three position options. It can be an extension to the main deck aft for more entertainment space, a beach club platform for sea-level living, and underwater as a tender & jet-ski lift system with a load capacity of 2000 kg.

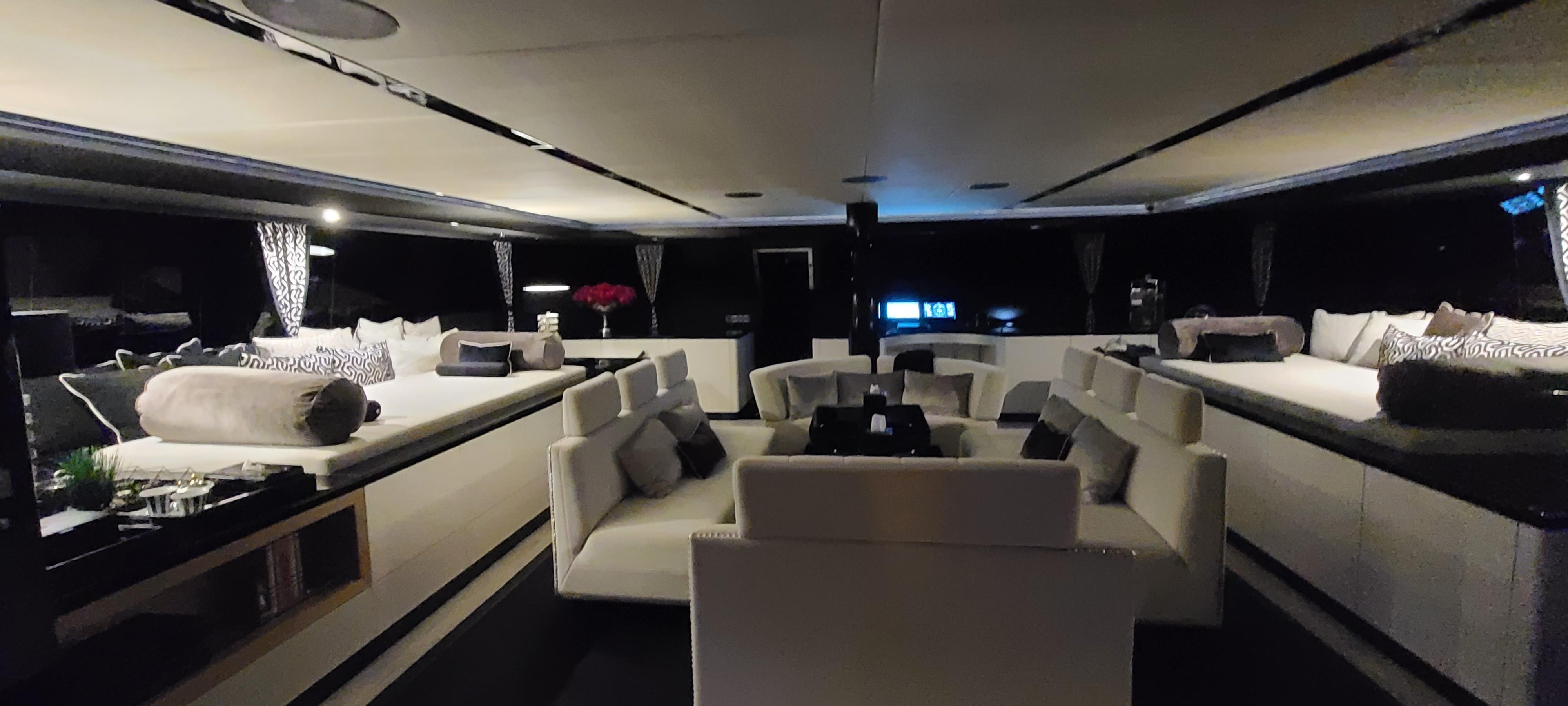

Inside on the main deck there are 360 views through large windows. The hull-height sliding glass doors open aft into the spacious cockpit converting the entire main deck into one large open space in pleasant weather. Forward a door opens onto a large foredeck terrace and the huge relaxation space of the trampolines.

On the lower deck there are four suites for eight guests including an ‘owner’s hull’ to port with a king-sized double berth, his-and-hers bathrooms and a large walk-in wardrobe. Three large hull ports and deck hatches above the bedroom and en suite deliver views and natural light. There are three additional queen-sized double berths in the starboard hull, all en suite and with similar natural light, along with accommodation for up to five crew.

When not under sail, twin upgraded 225hp John Deere diesel engines give her a top speed of 12 knots and a cruising speed of nine knots. At anchor her 10.8m (35.4ft) beam give her natural stability and the lithium batteries offer the option of turning off the generators and switching to silent, eco mode.

Steering SystemJoystick Control

Yacht specification

MODEL VERSION

• Sunreef 70A Galley down (Master cabin + 3 Guest cabins + 2 Crew cabin)

RIGGING AND SAILS

• Fully battened main sail made of Dacron 1st choice, cross cut, 2 reefs
• Genoa double pleated made of Dacron 1st choice with electric furling

Options included

• Carbon performance mast and boom
• Gennaker
• Complete gear for Gennaker/code 0
• Electric furling system for Gennaker/code 0

PROPULSION

• Direct duplex F51 steel shafts
• Engine speed controls (on flybridge)
• Hydraulic steering system
• Fuel filter with water separator in engine and generator fuel delivery line
• Manual fire extinguishing system in engine rooms

Options included

• Upgraded base engines to 225hp John Deere diesels
• Folding propellers
• Larger fuel tanks to 2x 2000L (upgrade from 2 x1000L)
• Bow thruster (both hulls)
• One or two (depend of engine model) extra engine throttles at the navigation table + engine control/
• Rope cutters on the prop shafts

DECK GEAR

• Bow pulpits
• Port lights
• Swim ladder on the skirts
• Blocks and jammers
• Deck light
• Hatch at the top of the stairway between cockpit and flybridge

Options included

• Composite bimini
• Bimini windshield - all around the flybridge
• Manual winches upgraded to electric
• Hydraulic gangway (only single genset installation possible
• Cover kit (steering wheel, nav station, flybridge table)

ELECTRICAL SYSTEMS

• AC-230V: main switchboard
• Inverter 24V DC to 230V/50Hz 5kW
• Shore power inlet 230V 50Hz
• Shore power cord
• 230V sockets per cabin: 2x saloon, 2x dining area, 2x galley, 2x USB socket in each cabin
• DC-24V main switchboard
• 14 kWh Lithium battery bank 24V
• 2 starting batteries
• batteries, DC distribution, wiring

Options included

• AC-230V 50Hz 1 phase main switchboard with panel extension (manual changeover between shore power & generators),
• 2x Chargers (24V/100A)
• Inverter (24V DC to 230V/50Hz 5kW)
• 2x shore power inlet 63A
• Additional 230V sockets: 3 in cabins, 4 in saloon, 4 in dining area, and 4 in galley
• Additional Charger Skylla 24V/100A
• Additional Charger for engine starting batteries, one on each side
• Generator 19kW 230V/50Hz

LIGHTING

• Interior lighting with LED lamps
• Navigation lights with LED lamps
• Lights in the engine rooms
• Spot lights on skirt's steps and sidewalks
• Spot lights on front terrace deck and cockpit ceiling

Options included

• Domotic system for lights, controls, and DC system
• Lighting with dimming
• Navigation lights
• Remote control for valves and pumps of black water
• Tank level monitoring with alarm: fresh water, black water, fuel
• Battery and Victron charger monitoring with alarm: starter/ main batteries bank
• Engine room temperature monitoring
• Underwater lights LED, one color to be chosen: white or blue (price per unit
• Exterior lighting package, upgrade from standard (underlighting of fixed furniture on flybridge and
• Cockpit - LED stripe in white; cockpit ceiling two LED stripes surrounding in white; LED white stripes instead of spot lights on skirts)

NAVIGATIONS & ELECTRONICS

• Compass (size 135mm)
• Chronometer and barometer

Options included

• RAYMARINE: 2x Axiom 12', Radar RD424HD 24" 4kW 608mm digital radome radar, evolution
• autopilot, AIS700, depth, speed & temp sensor,wind sensor, GPS, Ray90 VHF with dual station,
• searchlight + control unit, fog horn
• Satellite Communication System Fleet One Cobham Sailor (including 2 years unlimited satelite data
• (speed 150 Kb/s) when out of GSM range and GSM data 3 and 4G (5GB/month high speed then unlimited 80Kb/s) in 145 country including caribbean and 1000 Min voice via satelitę.
• External analog camera
• 4G/LTE Wifi worldwide antenna

PLUMBING

• Fresh water: 1x 1600L equipped with level indicators, 1 pressurized pump, 2 water  heaters of 100L
• Black water: 1x 350L each tanks with discharge system, 1 electric pump
• 4 electrical bilge pumps
• 2 manual bilge pump
• Hand shower on deck
• Pressurized fresh water outlet in the cockpit (female quick-coupling snap connector)
• Electric toilets 24V in bathrooms with fresh water flush

Options included

• Watermaker 280L/h - 220V
• Grey water tank 500L with electric pumps of additional extraction and piping installation
• Sea water pump for washing the deck
• Fresh water inlet (Connection between the boat's water network and the shore water supply)
• Fresh water outlet for washing the deck
• Retractable hose (5mb) in chain locker for chain wash
• Shower head on the cockpit ceiling with mixing valve

COMFORT ON BOARD

• Painted Aluminium sliding door
• Manual roman blinds in cabins
• Curtains and backdrop for entrance door
• Galley appliances package: refrigerator with freezer, dishwasher
• Electric oven, cooker
• Washer&dryer

Options included

• Electrically recessed blinds in the salon, master cabin, and nav station (manual in the remaining cabins)
• Manually concealed skyscreen on cabin ceiling hatches
• Air conditioning 140 000 BTU/h
• Widescreen LED TV 50” with installation (salon)
• LED TV 32” with installation (price per cabin
• Digital Cloud (wifi network for movies and music)
• Hi-Fi Pack 1: for salon or/and outdoor
• Yamaha Home Cinema Receiver 7.2 + 5 x ceiling premium speakers + 1 x active
• subwoofer
• waterproof speakers in the cockpit and 4 on flybridge
• waterproof speakers on the front deck
• Hi-Fi Pack 2: (price per cabin
• Yamaha Power Network Receiver + 2x premium speakers
• Wine cooler for 32 bottles
• Flybridge cushions set + flybridge mattresses
• Cockpit mattresses
• Bar module in cockpit
• Ice maker for the bar module
• Low fridge for the bar module
• Bar module on flybridge
• Sink with retractable faucet for the bar module
• Ice maker for the bar module
• Low fridge for the bar module
• Electric Stainless Steel BBQ

INTERIOR

• Furniture and all interior panels made of individually selected wood of category A with
• polyurethane varnish
• All upholstery and cushions made of synthetic fabric
• Hull and deck in white gelcoat
• Vinyl floor in saloon and cabins

Options included

• Cockpit and skirts floor covered with teak
• Flybridge covered with teak
• Deck covered with teak
• Side of hulls lacquered

SAFETY EQUIPMENT

• Automatic fire extinguishing system in the engine rooms (included in commercial adaptation)
• Complete rescue equipment with life-rafts for 16 persons
• EPIRB (included in commercial adaptation)
• Gas detection system + alarm (included in MCA)

MOORING & TOOLS

• Windlass 3000W, 24V
• Galvanized anchor 60kg FOB Rock VHHP
• 100m chain (diameter 14mm DIN
• Additional anchor 20kg + 20m galvanised chain (diameter 10mm)

Options included

• 50m tow line
• Mooring kit (8 fenders + 4 mooring ropes)

ABOVE & BEYOND OPTIONS

• 2 x additional aft electric mooring winch
• Hydraulic platform lifting capacity increased to 2000kg
• 24V DC Lithium battery bank upgrade from 14 kWh to 25,2 kWh and additional 100 A  charger
• 2 x Additional Inverters 230V/ 50Hz/ 5kW
• Additional Charger Skylla 24V/100A
• Second 19kW 230V/50Hz generator
• Mast LED courtesy lighting WHITE
• Upgrade to RAYMARINE: 2x Axiom XL 16"
• Increased blackwater tank capacity to 1x 500L
• Three way valve redirecting grey water to black water tank
• Set of fans in each cabin, in the galley and on deck
• 2 safes ( crew cabin + master cabin)
• Upgrade to 90 kgFOB Rock VHHP anchor instead of 60kg x1
• Upgrade to 3000W windlass + 100m galvanized chain  13 + additional anchor 60kg FOB Rock  VHHP
• Additional 3000W windlass + Galvanized anchor UA  80 kg + 100 m 14 mm galvanized chain
• Additional Russell Hobbs - black 142 liter Chest Freezer in bilge
• Chain counter with control panel on flybridge
• Additional navigation station with electronics on the flybridge
• Flir camera M364C https://www.flir.com/products/m364c
• Yachtcontroller wersja EU dualband
• Cameras + alarm system
• Wireless intercom system
• Thermal isolation (master cabin, saloon)
• Seabob F5 Anthracite and Green + Rack
• Flybridge furniture
• Captains chairs
