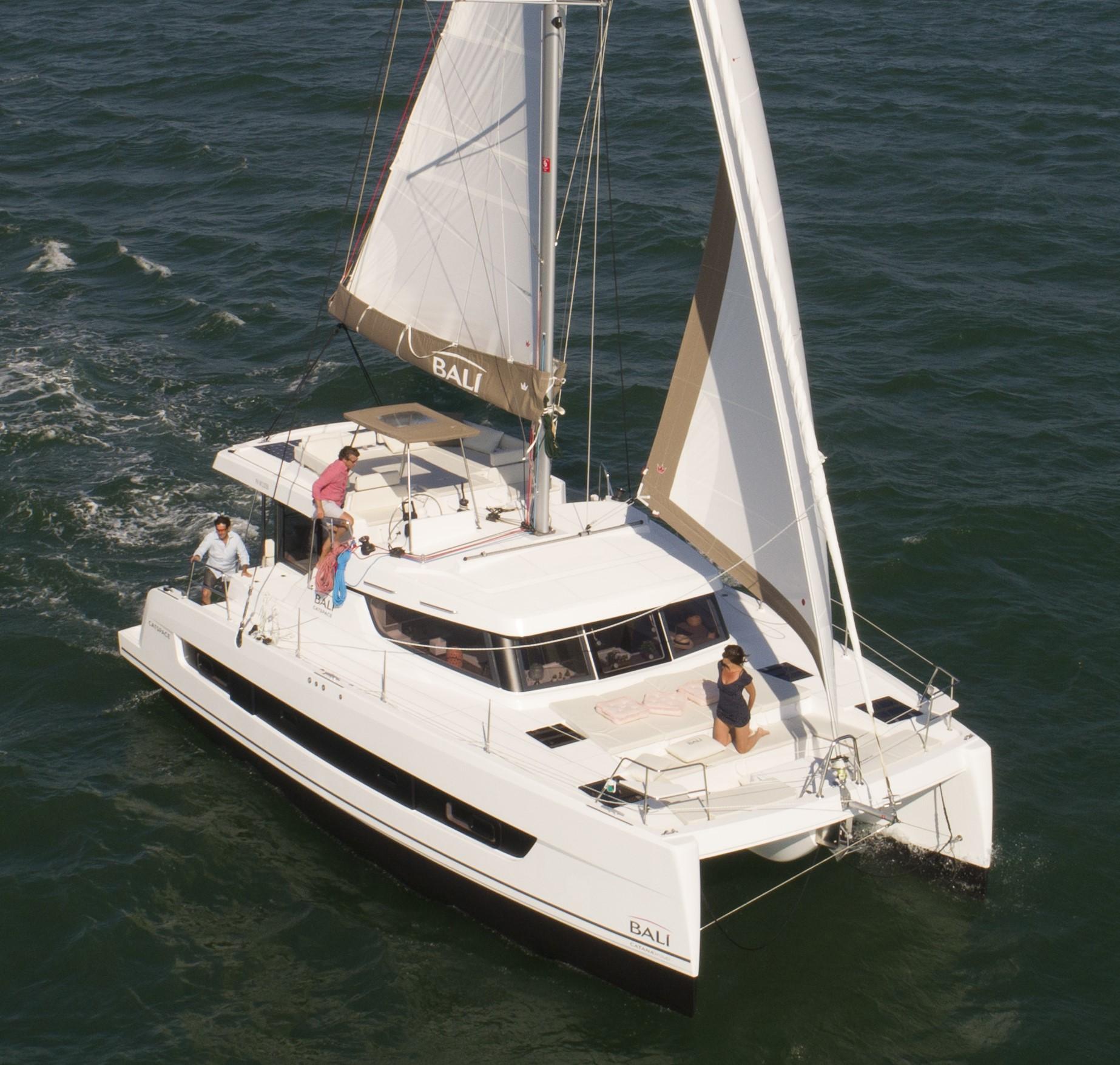

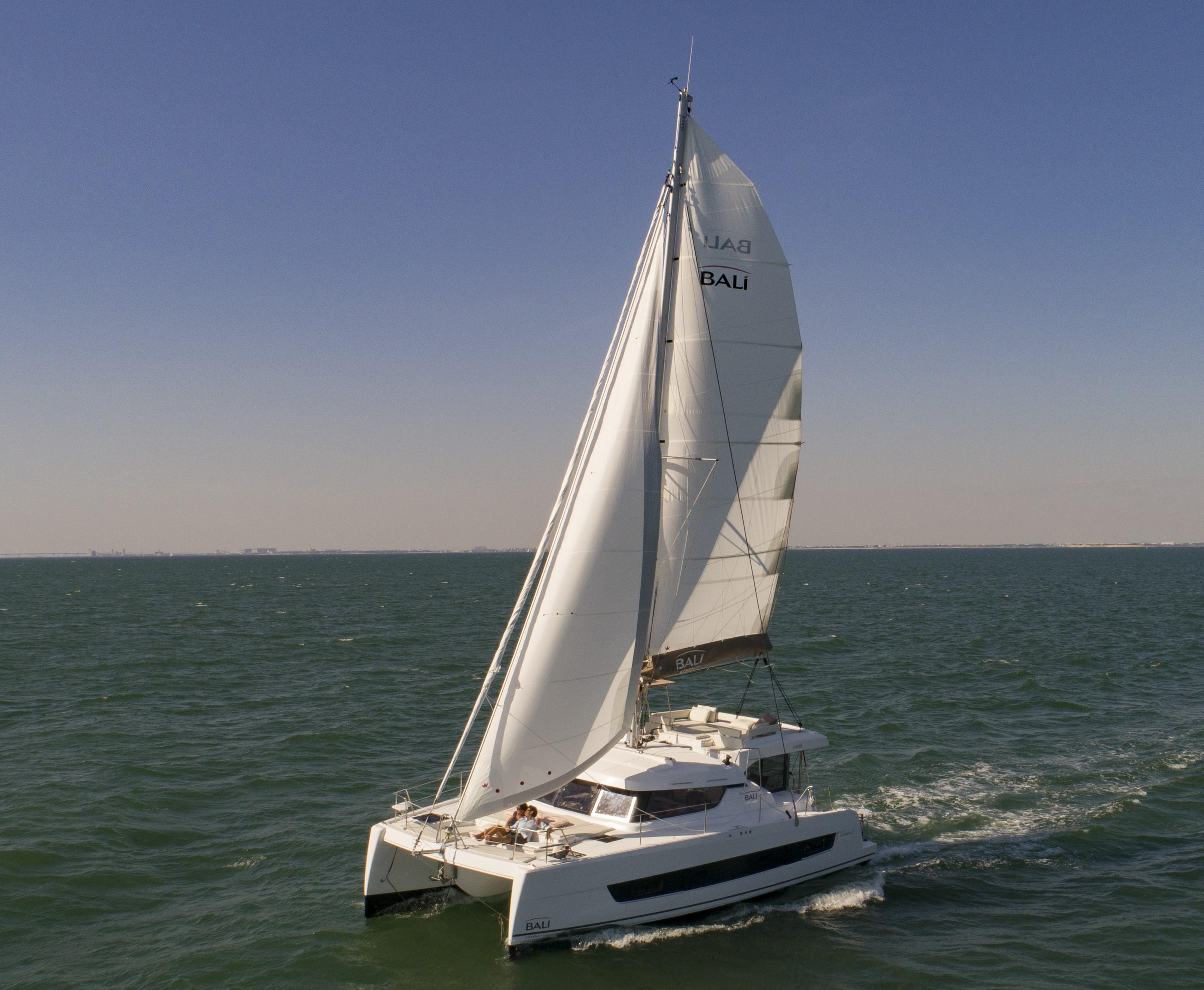

40.33' Bali 2024

BALI CATSPACE - Available in May 2024.

Small but mighty, the BALI Catspace is the most popular boat in her category, she offers an incomparable amount of living space, is easy to manage, and is low-maintenance cost.

She combines the BALI such as the tilting door to switch from an open to a closed space in only a few seconds, the large sliding side windows and the clever tilting front window generate optimal lighting and natural ventilation.

This boat is open to specification in 3 cabins or 4 cabins version with many options: A/C in all cabins and saloon, upgraded engines, generators, etc.

Buy a BALI in full confidence with Asiamarine for full follow-up from order to delivery in Asia. We propose boat management locally in HK, Thailand, and Singapore for clients who need assistance as well as charter options.

The price shown is Ex-shipyard, Ex-VAT, commissioning, and shipping costs are not included.

Boat Specification

CONSTRUCTION

Hull in one part for more rigidity

Anti-leeway plan provided by 2 profiled keels limiting drag

Hull made in GRP-infused PVC foam sandwich, polyester resin

Anti-osmotic vinylester underwater protectio

Deck in RTM foam sandwich with monolithic / plywood reinforcements

Bulkheads in multilayer plywood, laminated or glued

Main bulkheads in polyester sandwich and secondary plywood multiply laminated or glued.

EXTERIOR

Sails

45 m² Full batten Mainsail in Dacron with 3 reefs

30 m² Self-tacking “cross cut” solent jib in Dacron, on furler

Optional 49 m² fully battened square top mainsail in Dacron (with automatic square top gear)

Optional 52 m² code zero or gennaker on bowsprit and furler

Optional 90 m² asymmetrical spinnaker

Mast / Rigging

Anodized aluminum mast, air-draft: 18.23 m

Complete standing rigging

LED anchor light

LED steaming and deck light

Outlets for mainsail halyard, solent jib halyard and topping lift

Ball bearing mainsail luff cars

Anodized aluminum boom

1 Forestay

1 furler on forestay *

2 Capshrouds in stranded stainless steel

Optional bowsprit

Running rigging

Mainsail halyard

Mainsail sheeting system

Self tacking solent halyard

Self tacking solent sheet

Solent furler line

Boom topping lift

Deck fittings

Electric winch for mainsail halyard, furler line, and davits*

1 winch for solent sheet, mainsail sheet and reefing (electric: optional)

1 optional winch to portside for gennaker sheet, code zero or asymmetrical spinnaker sheets

Mainsail:

Mainsail sheet on Bimini top/built-in traveler

2 blocks on bimini

4 blocks on aft of boom

2 sheeting systems 3 strands

Self-tacking solent:

1 Solent sheet track on coachroof

Sheet car on track

Sheet block on solent

Solent sheet

1 sheet clutch

Furler control line

Furler control line fairlead path and clutch on deck

Anchoring

Vertical 1000W windlass *

Stainless steel anchor roller under platform

Deck equipment

Deck hatches:

2 flush hatches for forepeaks

2 flush hatches in forward cabins

2 GRP engine room hatches (with struts)

1 GRP hatch for windlass locker

2 escape hatches in aft cabins

2 hatches for aft storage (with struts)

1 locker lid for aft bench seat (with struts)

Safety:

Outer bulwark and handrails

2 front pulpits on starboard and portside with seats

1 central front pulpit

2 stainless pushpits on starboard and portside

6 stainless steel stanchions

Double guardwires in stainless steel

6 aluminum king size cleats with SS hull protections

Cockpit equipment

Large pivoting bay door in methacrylate with sliding access door

Lifting assistance for pivoting door by pneumatic struts *

Lateral sliding windows

Davit *

Large and comfortable aft bench seat with storage and aft platform for a safe passage between the two transoms

Aft bench seat cushions*

Life raft locker in aft bench with automatic release

Hard-top bimini in sandwich construction

LED lighting

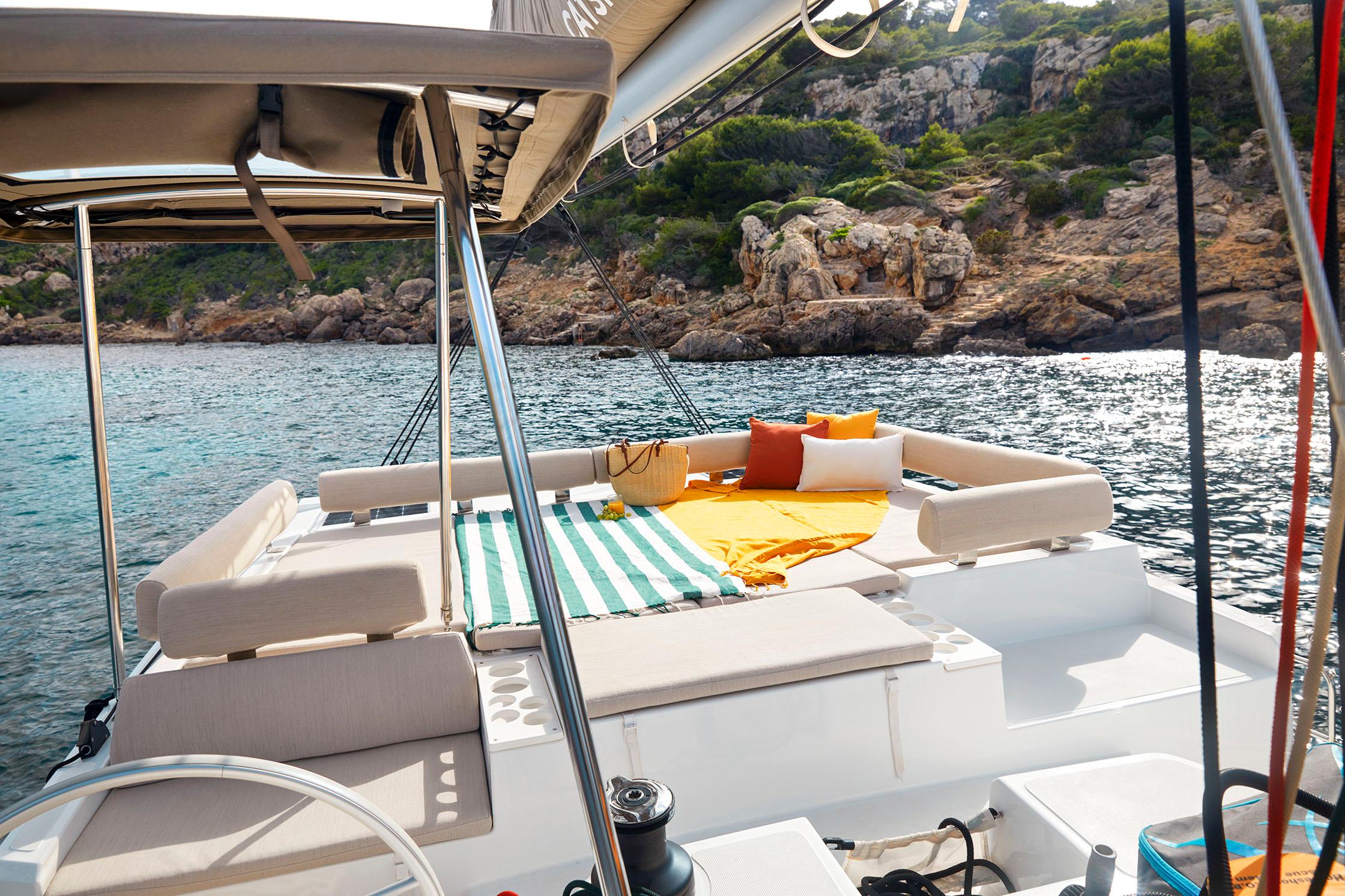

Forward Cockpit

Large forward cockpit with large lounge seats (with cushions *) and bathing platform

Helmstation and steering

Raised helmstation to starboard for optimal visibility

Helm seat and backrest in stainless steel (with cushions *)

Steps on starboard and portside for access to helmstation

Steering wheel

Magnetic steering compass, light and protective cover

2 balanced spade rudders with stainless steel shafts

1 Emergency tiller

Cable steering system with rigid link between the rudders

Manual engine controls at helm station with control panels and alarms

Raymarine multifunction display *, color chartplotter*, autopilot control display*

Transoms

2 transom life lines

Shower with pressurized hot/cold fresh water in the port transom

1 Stainless cap for access to the emergency tiller

ACCOMODATION

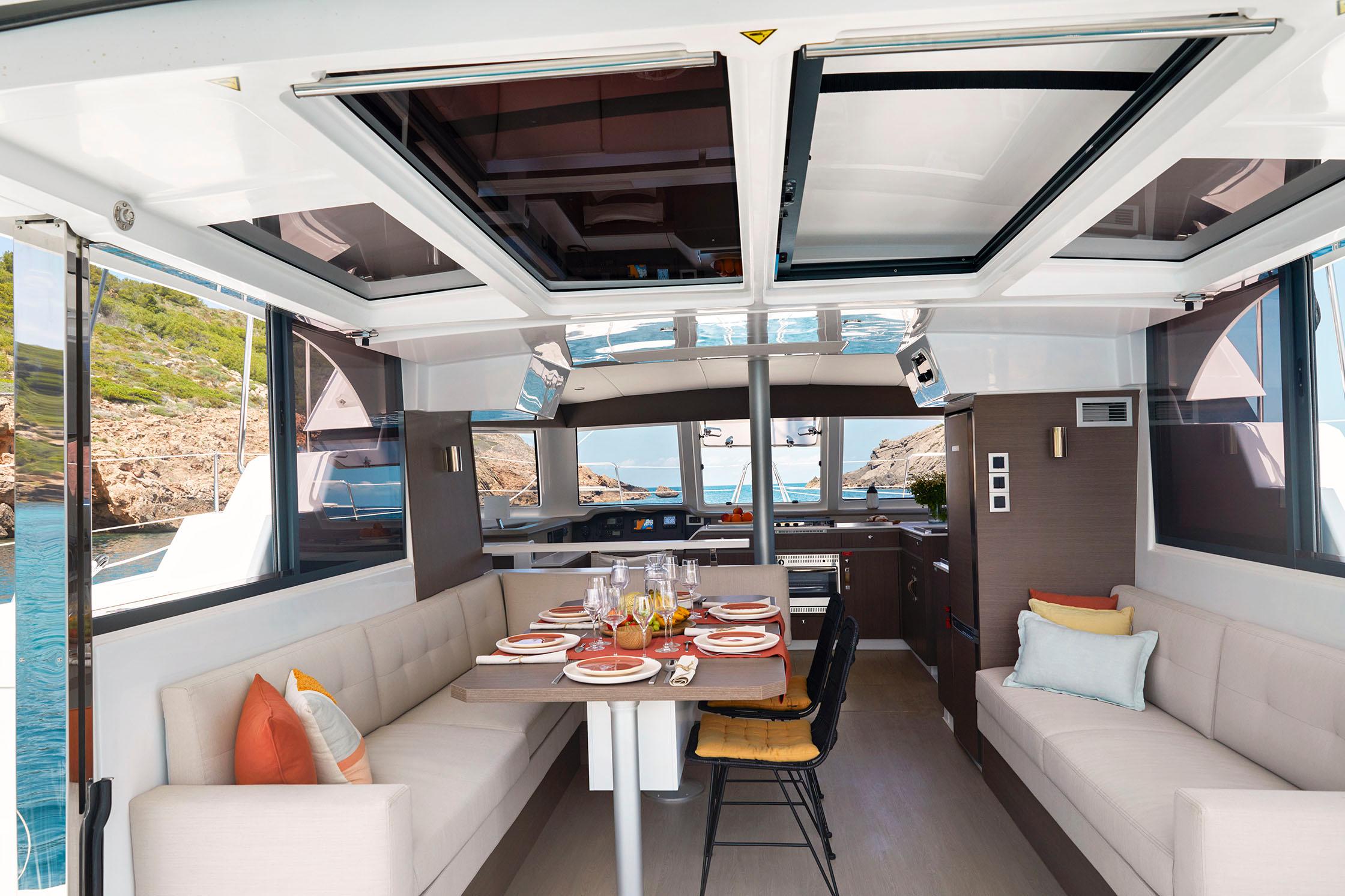

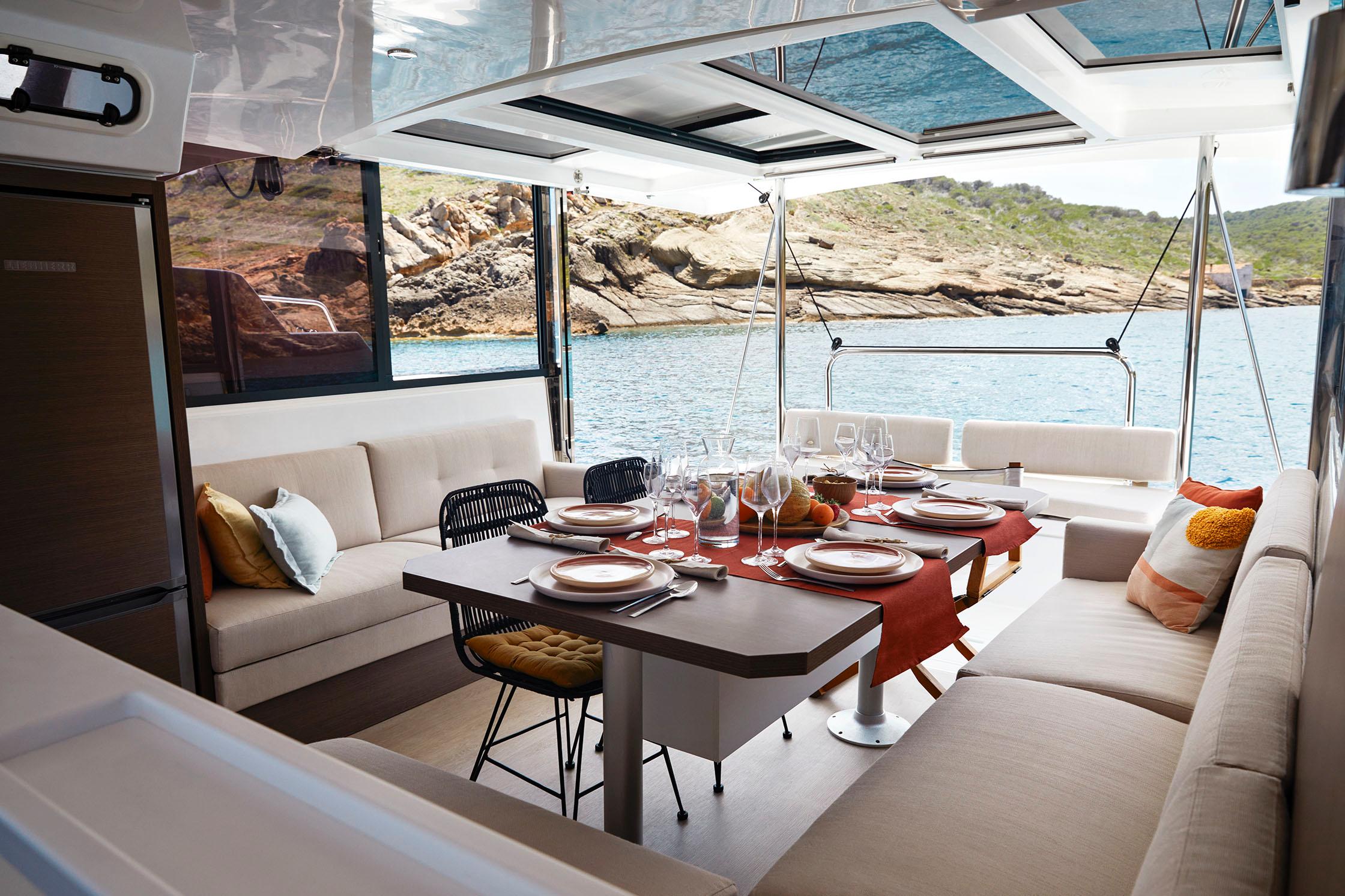

Aft cockpit/saloon fully open space

Leather handles on furniture

Corner sofa to port with upholstery

Wood laminate floor

Lounger/daybed to starboard (with cushions)

Upholstery bands on seats

Hinges on the seats to facilitate the opening of the storage space

Large storage under seat

Saloon table and two aluminum feet

Covering the wooden coachroofs

Upholstery headbands roof window coverings

Lateral sliding windows*

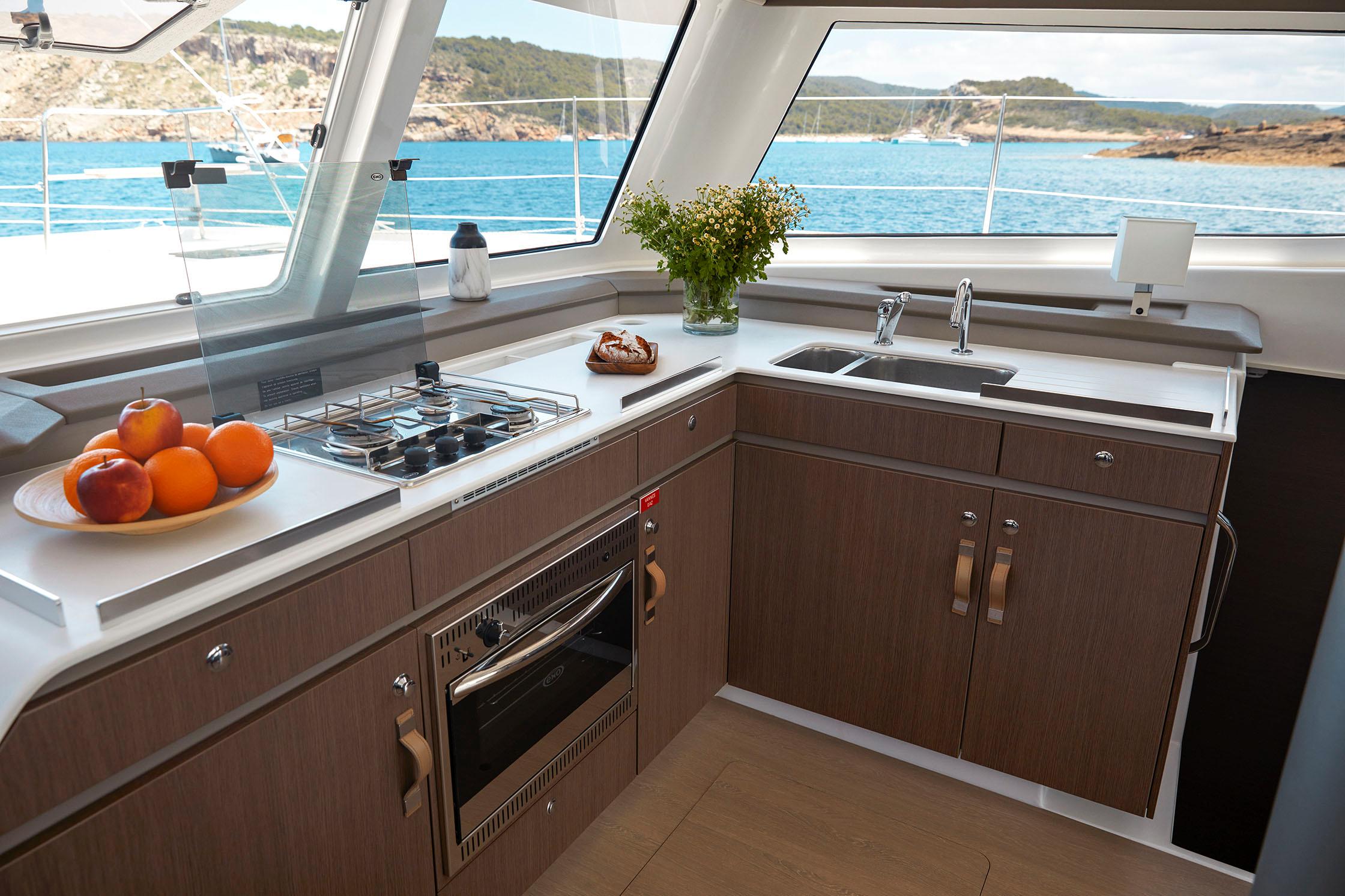

Galley

L-shaped galley open to the forward cockpit, with large countertop and galley/counter unit:

Large forward opening window, forming serving hatch for forward cockpit

Set of two high-level cupboards in galley*

Double Stainless steel sinks

Garbage can

Combined refrigerator + freezer 265L (212+53) with dedicated inverter

Mixer Tap with ceramic seals for hot and cold fresh water

3 burner Gaz stove

Gaz oven* Chart table

Padded chart table cover

Storage and bookcase

Stool with cushion

Chart table light

Raymarine electronic equipment*

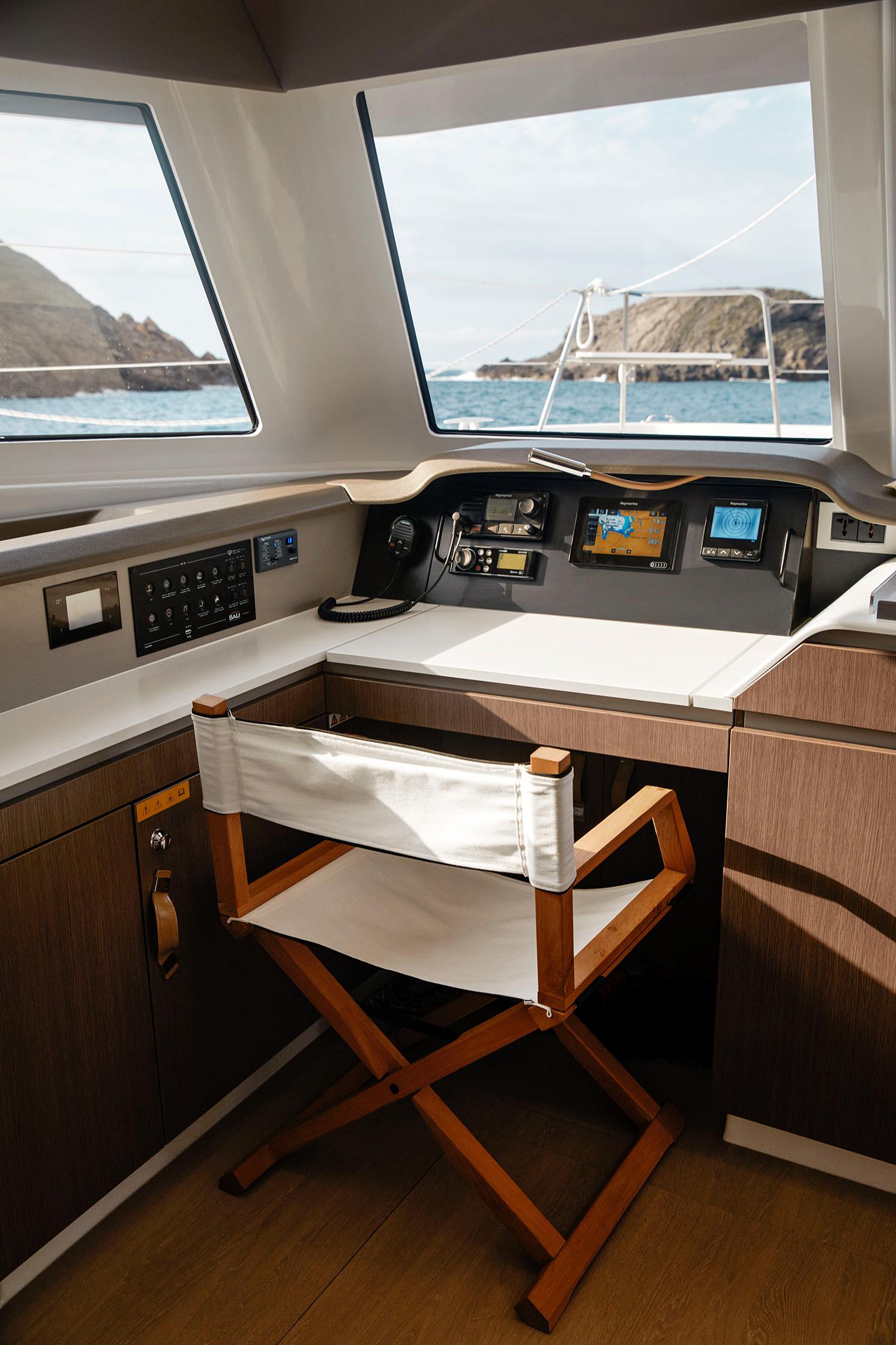

Chart table

Padded chart table cover

Storage and bookcase

Stool with cushion

Chart table light

Raymarine electronic equipment*

3 CABIN VERSION

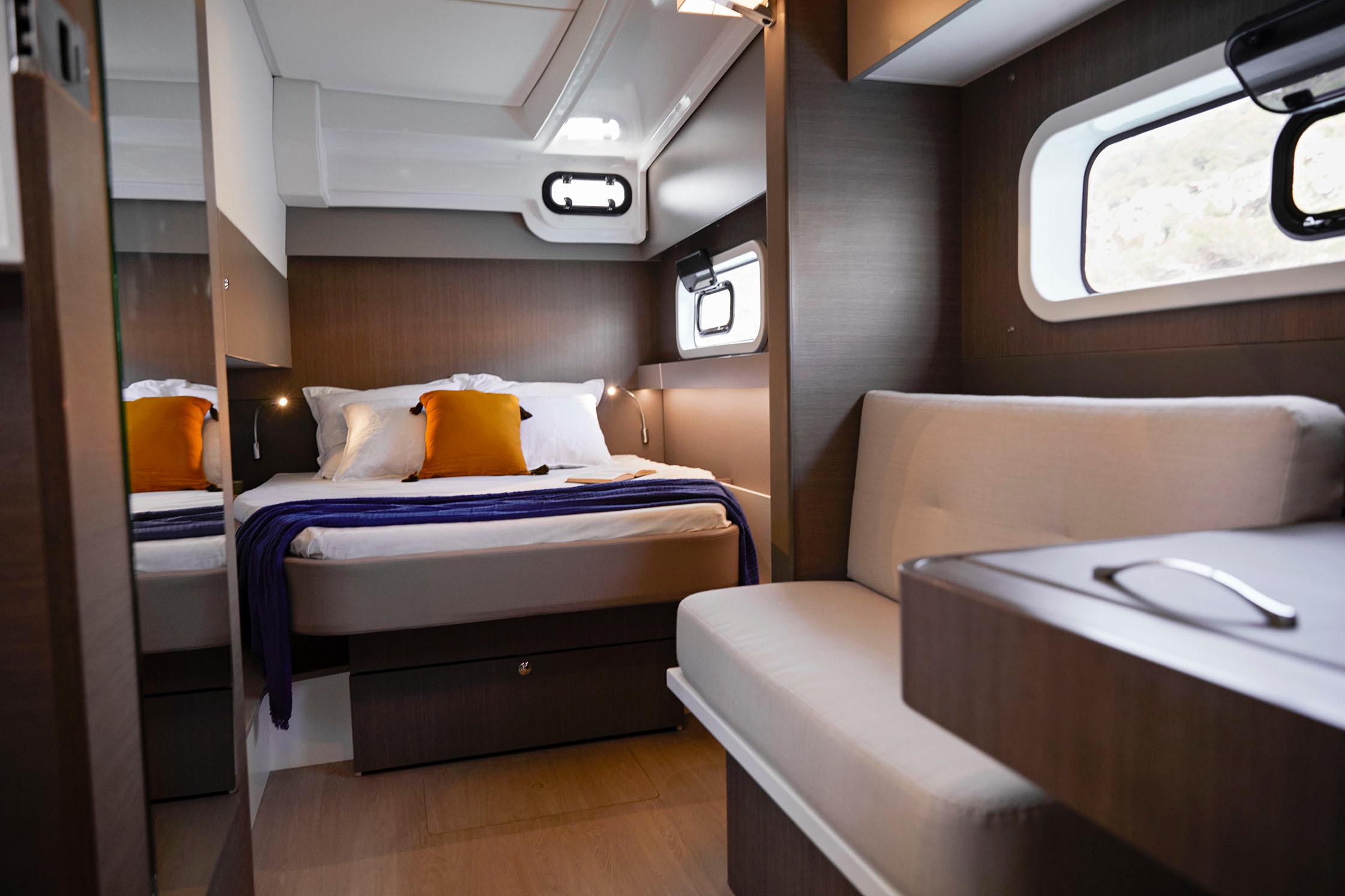

Port Hull: Owner’s stateroom

The most spacious and most comfortable on the boat, located port side aft:

“Island bed”, drawer under bed

2 Highly resilient foam mattresses covered by Husky fabric

Skaï and laminate panel headlinings

Numerous storage lockers with shelves

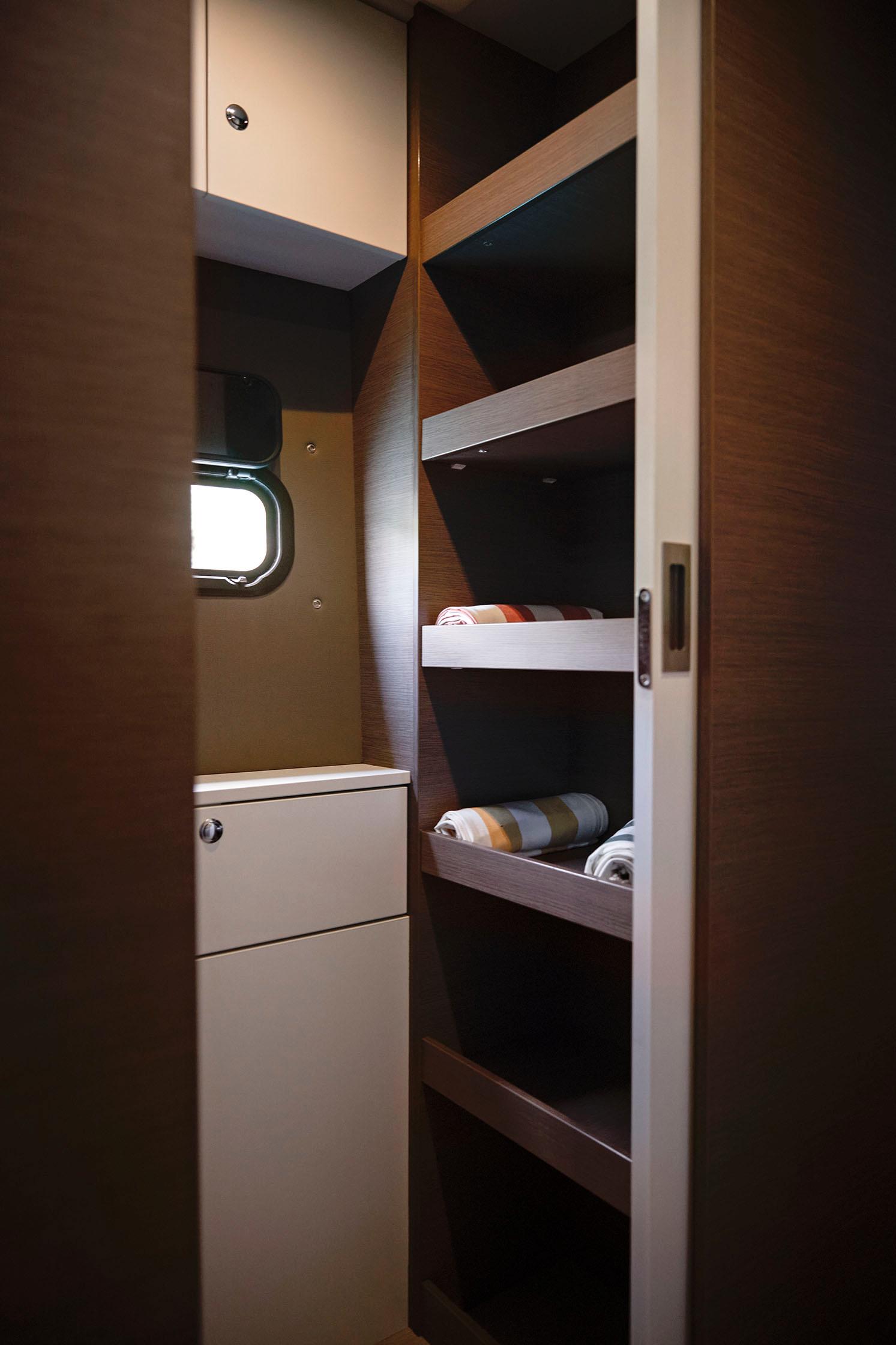

1 hanging locker and 1 cupboard

1 dressing

Couch with storage under seat

Padded dressing table cover / desk and mirror

Sliding door for access to the saloon

Hatch for light and ventilation

Large bathroom:

Large shower stall, ceramic seals mixer tap and plexiglas door

Wash basin on countertop

Marine head

Storage for linen and toiletries

Hatch for light and ventilation

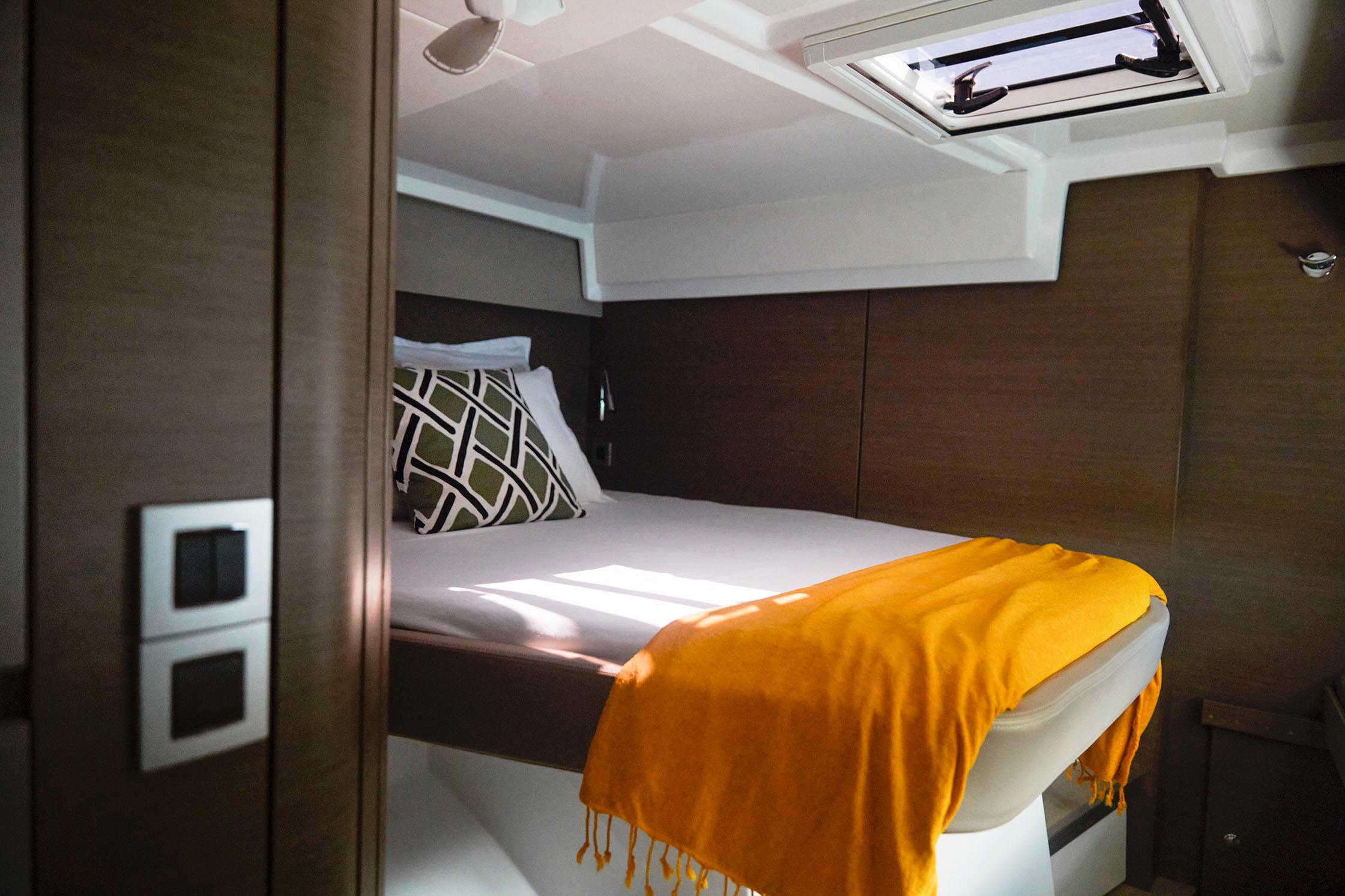

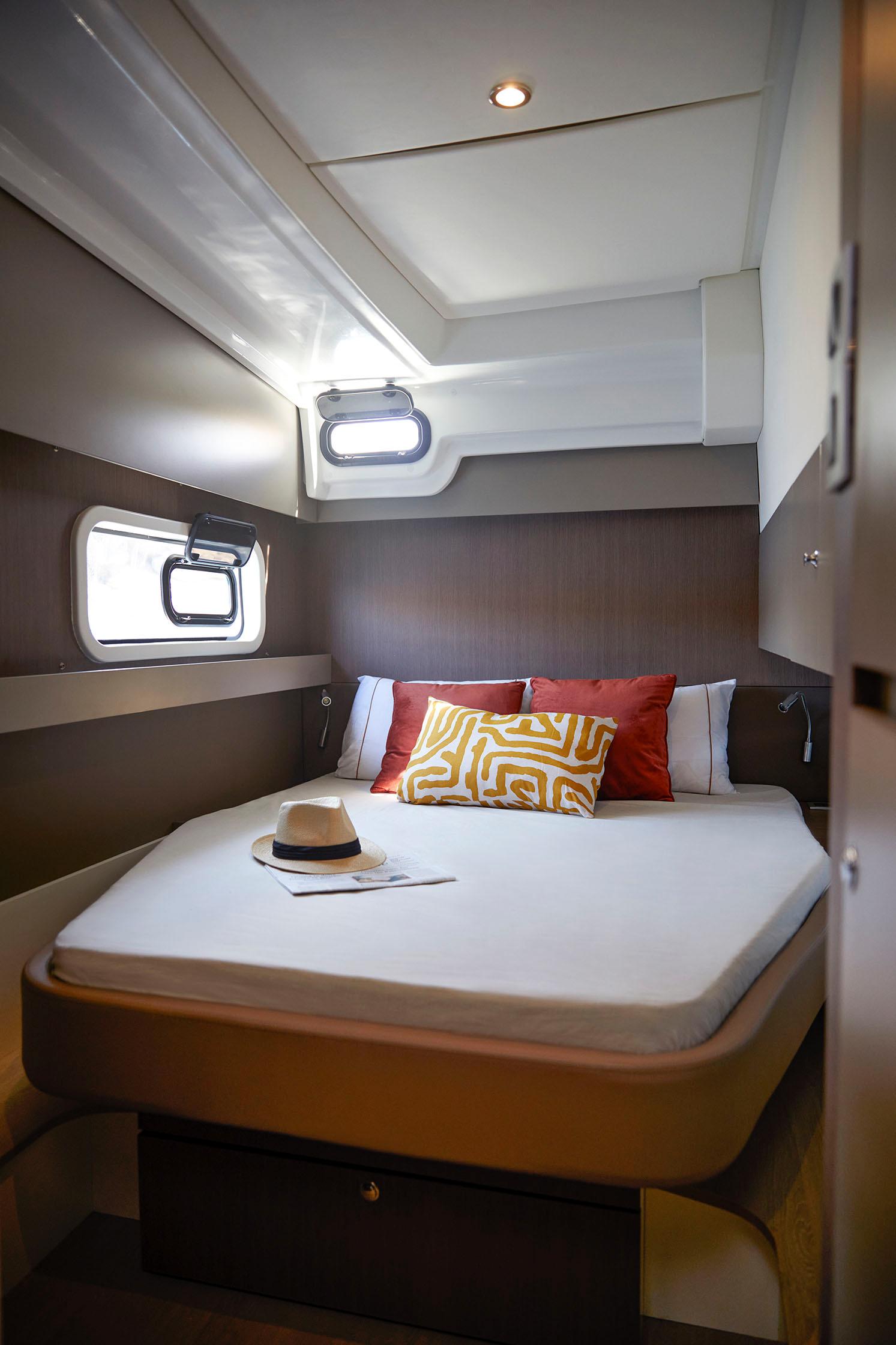

Starboard hull Cabins

Double bed in forward and “Island Bed” in aft cabin,with 1 storage under bed

Shelf transformable into third berth *

2 Highly resilient foam mattresses (Husky fabric)

Skaï and laminate panel headlinings

Storage with shelves and 1 hanging locker per cabin

Hatch for light and ventilation

Bathrooms

Bathroom with single basin, shower and head, mirror and storage

Mixer taps with ceramic seals

Hatch for light and ventilation

4 CABIN VERSION

Port hull and starboard hull same as 3 cabin version starboard hull

TECHNICAL EQUIPMENT

Engine rooms

Engine rooms totally separate from the accommodation

2 X 19 HP, 40 HP (optional) Yanmar diesel engines, with control panels at helmstation

Mechanical engine controls at helmstation

2 Saildrive transmissions

2 fixed 2 blade propellers (optional 2 blade folding)

2 Fuel filters / Water separators

Ceiling lights

2 Fuel tanks with gauges display at chart table, total capacity 400 L

Plumbing

2 fresh water tanks with display gauges at chart table, total capacity 700 L

Pressurized fresh water pump with expansion tank, drinking water circuit

60 L electric water heater connected into the engine cooling circuit

Gas installation (EU appliance) under cockpit seat for 13 kg tank and area for extra tank

4 electric bilge pumps, 2 manual bilge pumps

Ecological pack including freshwater purifying filter

Electricity

Service voltage: 12 VDC and 230 VAC / 50Hz

2 extra optional 12V/125A alternators

2 engine starting gel batteries, 80Ah with breaker and manual emergency cutoff switch

2 house batteries 130 Ah

2 addditional house batteries *

Low charge control for the house battery bank at chart table

230 VAC wiring with waterproof power plug and 25m extension cord, AC outlet in each cabin, and saloon

LED lighting on board throughout*

LED navigation lights

Courtesy lights in cockpit/saloon*

USB outlet at the chart table and in each cabin

Charger/Inverter 12V/1600VA/70A*

Electronic

Raymarine Electronic PACK 1 including: P70S autopilot, AXIOM 7" GPS plotter, MULTI I70S, and RAY 63 VHF *

Optional Pack 2

*Equipment including in Excellence Pack
